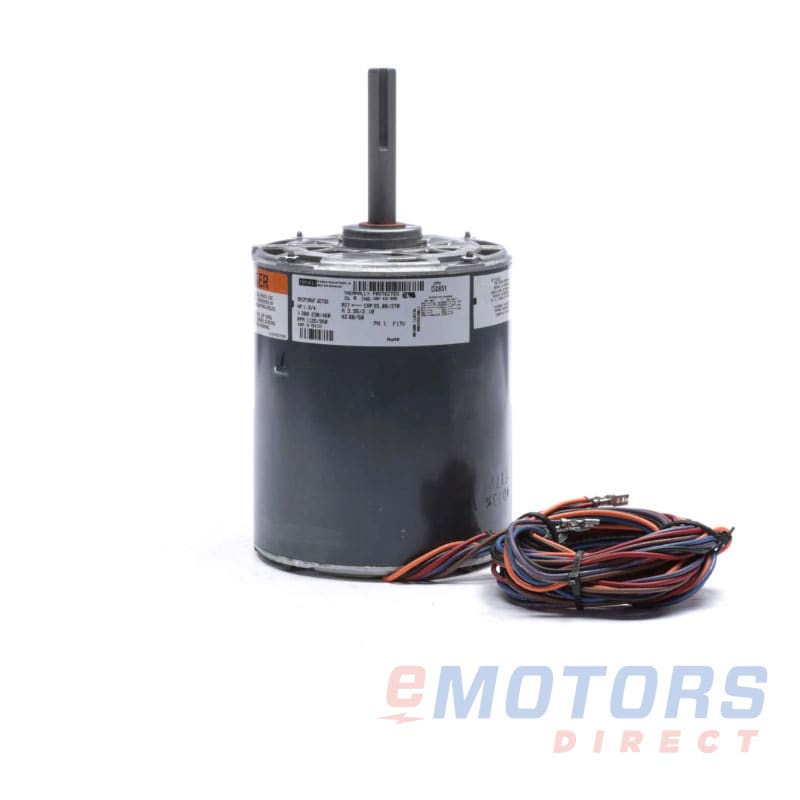

Regal Rexnord D2851 Fasco Furnace Motor 1 HP 208-230V 460V

Product Description

The Regal Rexnord D2851 is a one horsepower furnace motor suitable for continuous air over applications. It operates at either one thousand one hundred twenty-five RPM or nine hundred fifty RPM. This motor can be powered by either 208-230 volts or 460 volts at sixty hertz. It is a single-phase, six-pole motor with a forty-eight frame and an open air over enclosure. Mounting is easy with the three-lug mount. The motor features a rolled steel frame, ball bearings on both ends, and a shaft of zero point sixty-two inches in diameter and three point twenty-five inches in length.

This motor operates in a horizontal position and features counter-clockwise rotation. It has CSA and UL certifications for hazardous locations, ensuring safety and reliability. The motor is equipped with a twenty-five Mfd-370 volts run capacitor for efficient operation. It weighs approximately twenty-four point four pounds and functions effectively at ambient temperatures up to sixty-five degrees Celsius.

• Rated for one horsepower at one thousand one hundred twenty-five or nine hundred fifty RPM, supporting 208-230V or 460V power.
• Features a forty-eight frame with open air over enclosure and three-lug mounting for easy horizontal installation.
• Certified by CSA and UL for use in hazardous locations.

Product Highlights

This motor is built for durability and reliability, making it ideal for HVAC applications.

Product Information

Standard Information

• Motor Type: Furnace Motor
• Power Output: 1 HP

Technical Specifications

• Rated Speed: 1125, 950 RPM
• Rated Voltage: 208-230V, 460V
• Rated Current: 3.95/2.10 AMP
• Phase: 1
• Poles: 6
• Run Capacitor: 25 Mfd-370 Volts
• Frame: 48
• Enclosure: OAO
