Regal Rexnord D2840 Motor 1/5 HP 208-230V

Product Description

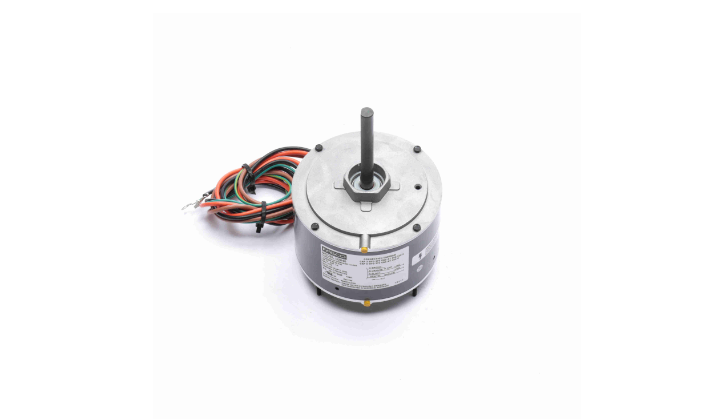

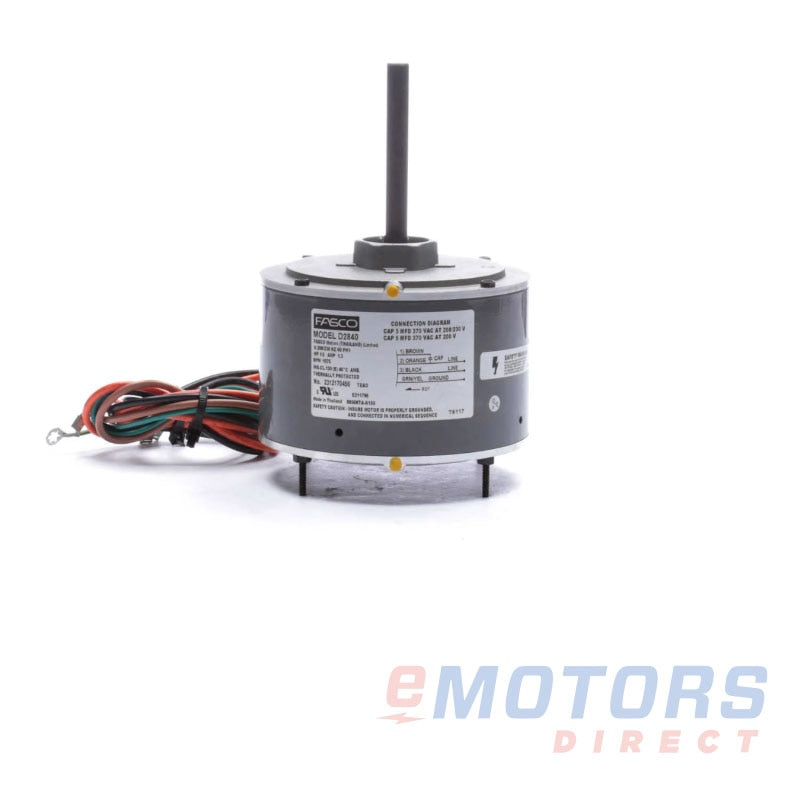

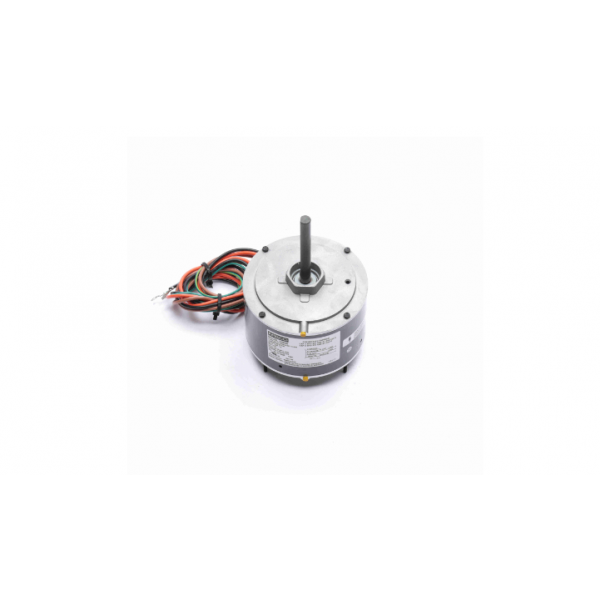

The Regal Rexnord D2840 is a single-phase motor with a rated output of one-fifth horsepower. This motor operates at 208 to 230 volts and runs at a speed of 1075 RPM. It draws 1.16 amps and is designed for continuous use with a totally enclosed air over enclosure.

• Rated output power of one-fifth horsepower with a maximum speed of 1075 RPM.
• Constructed with a rolled steel frame and designed for durability in various industrial applications.
• Equipped with sleeve bearings for smooth operation on both ends of the motor.

Product Highlights

The Regal Rexnord D2840 motor is ideal for powering different equipment in HVAC systems and other industrial tasks. It is suitable for continuous duty in environments up to forty degrees Celsius.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D2840

Technical Specifications

• Rated Motor Output Power: 1/5 HP
• Rated Motor Speed: 1075 RPM
• Rated Motor Voltage: 208-230V
• Rated Motor Current: 1.16 AMP
• Phase: 1
• Poles: 6
• Frequency: 60 Hz
• Run Capacitor: 3/5 Mfd-370 Volts
• Frame: 48
• Enclosure: TEAO
• Mounting: Stud
• Frame Material: Rolled Steel
• Insulation Class: B
• Rotation: CWSE
• Duty: Continuous
• Ambient Temperature: 40°C
• DE Bearing: Sleeve
• NDE Bearing: Sleeve
• Shaft Diameter: 0.5 inches
• Shaft Length: 4.15 inches
• Agency Approvals: CSA & UL
• Warranty: 1-Year
• Weight: 9.8 lb
