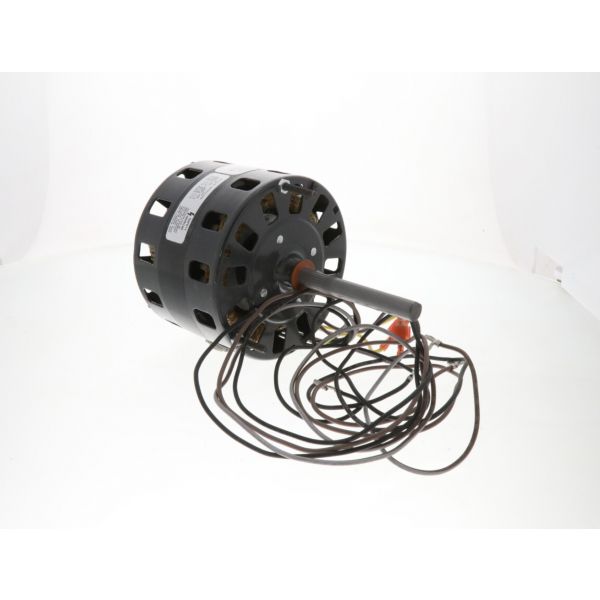

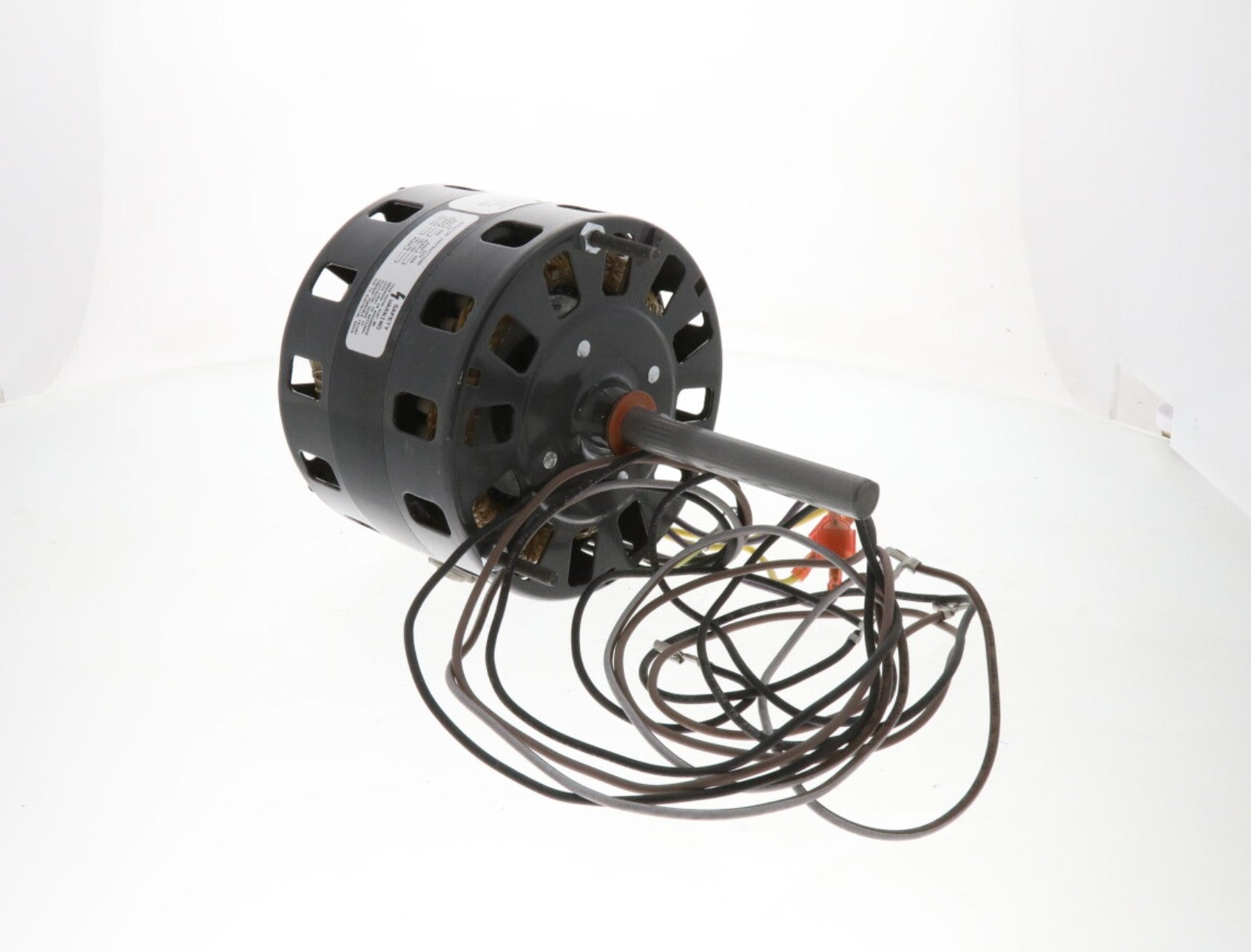

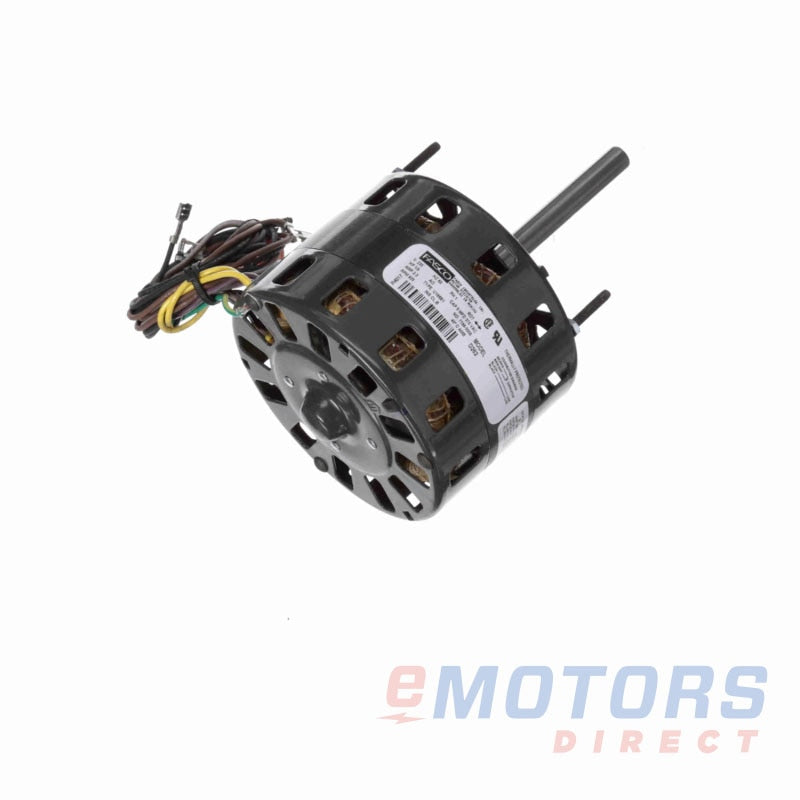

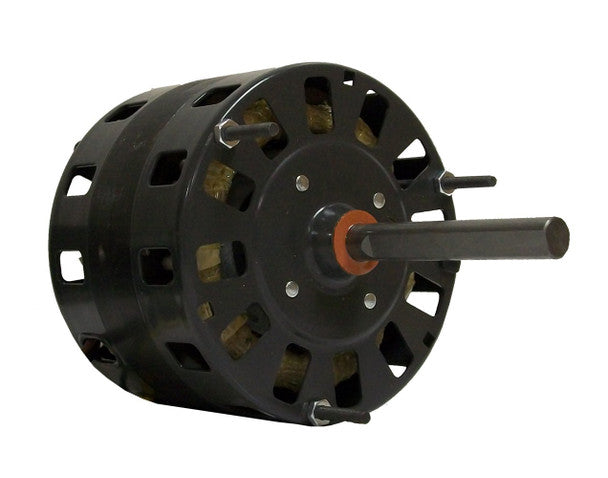

Regal Rexnord D262 Motor - 1/5 HP, 230V, 925 RPM

Product Description

The Regal Rexnord D262 motor is a single-speed motor that operates at two hundred thirty volts. It provides one-fifth horsepower at nine hundred twenty-five RPM with a current draw of two point three amps. The motor features a five-inch diameter, reversible rotation, and sleeve bearing design. It is built with a frame size of forty-two and an Open Air Over enclosure. Mounting is facilitated via studs. This motor functions at a frequency of sixty hertz and is intended for continuous duty applications. A five Mfd-370 volts run capacitor is included for reliable operation.

• Operates at two hundred thirty volts, delivering one-fifth horsepower at nine hundred twenty-five RPM.
• Features reversible rotation and a sleeve bearing design.
• Includes a five Mfd-370 volts run capacitor for enhanced performance.

Product Highlights

Ideal for HVAC systems, this motor is suitable for various applications where reliability is key.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D262

Technical Specifications

• Diameter: 5.0 inches
• HP: 1/5
• Voltage: 230 volts
• RPM: 925
• Amps: 2.3
• Rotation: Reversible
• Bearing: Sleeve
• Frame: 42
• Enclosure: OAO
• Frequency: 60 Hz
• Run Capacitor: 5 Mfd-370 volts
• Approximate Weight: 8.2 lb
• Insulation Class: B
• Duty: Continuous
• Ambient Temperature: 40°C
• Shaft Diameter: 0.5 inches
• Shaft Length: 4 inches
