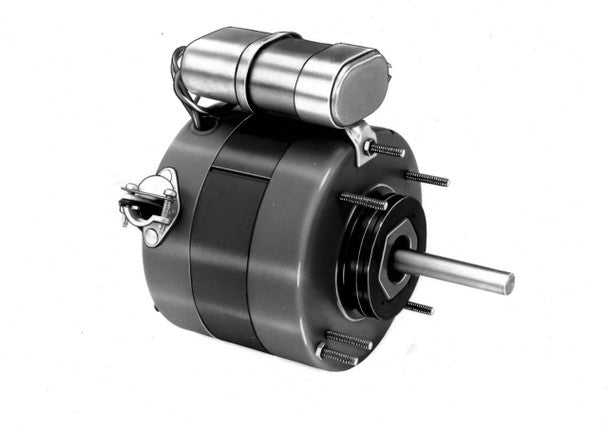

Regal Rexnord D260 Fasco Motor 1/6 HP

Product Description

The Regal Rexnord Fasco Motor D260 is a 1/6 HP motor ideal for various industrial applications. Operating at 115 volts and 60 hertz, this motor delivers a speed of 1075 RPM. With a five-inch diameter and a 42 frame, it features a permanent split capacitor type design. The motor provides thermal protection and has a class B insulation rating.

• Output HP: 1/6 HP
• Speed: 1075 RPM
• Enclosure: Totally Enclosed

Product Highlights

This motor is suitable for continuous duty, designed to withstand demanding conditions. It has a totally enclosed air over design and sleeve bearings, making it efficient for different tasks.

Product Information

Standard Information

• Country of Origin: Mexico
• Thermal Protection: Automatic

Technical Specifications

• MPN: D260
• Output KW: 0.13 kW
• Input Voltage: 115 V
• Frequency: 60 Hz
• Current: 2.9 A
• Number of Speeds: 2
• Poles: 6
• Overall Length: 8.04 in
