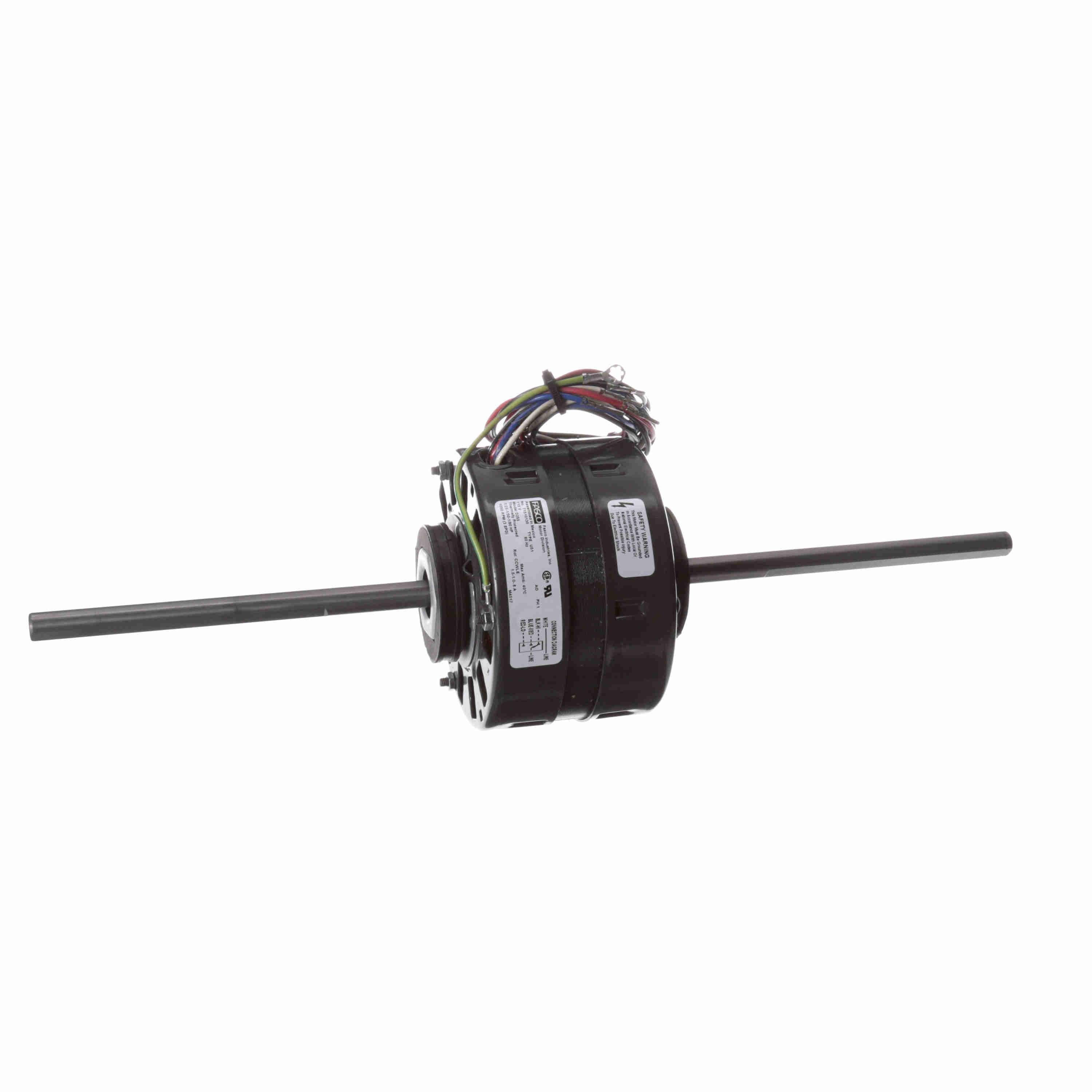

REGAL REXNORD D255 Fan Coil Motor 1/25-1/50-1/80 Hp

Product Description

The REGAL REXNORD D255 is a single-phase motor designed for applications in fan coil, air conditioning, and heating units. Operating at a voltage of one hundred fifteen volts and a frequency of sixty hertz, this motor achieves a speed of one thousand fifty RPM. It features an open air over enclosure, thermal protection, and is built to withstand ambient temperatures up to forty degrees Celsius.

• Designed for fan coil, air conditioning, and heating units
• Includes a shaded pole and open air over enclosure
• Thermally protected with resilient mounting rings

Product Highlights

The REGAL REXNORD D255 motor is ideal for HVAC applications, offering reliable performance with its robust design and thermal protection features.

Product Information

Standard Information

• Brand: REGAL REXNORD
• MPN: D255

Technical Specifications

• Phase: 1
• Output HP: 1/25-1/50-1/80 Hp
• Input Voltage: 115 V
• Frequency: 60 Hz
• Speed: 1050 rpm
• Current: 1.5/1.0/0.6 A
• Service Factor: 1
• Frame Size: 42
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Number of Speeds: 3
• Electrical Type: Shaded Pole
• Rotation: Counterclockwise Lead End
• Mounting Type: Resilient Rings
• Overall Length: 18.26 in
• Shaft Diameter: 0.500 in
