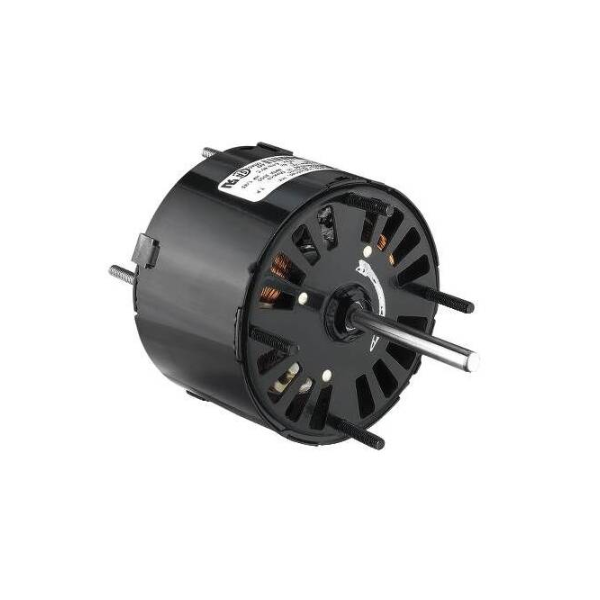

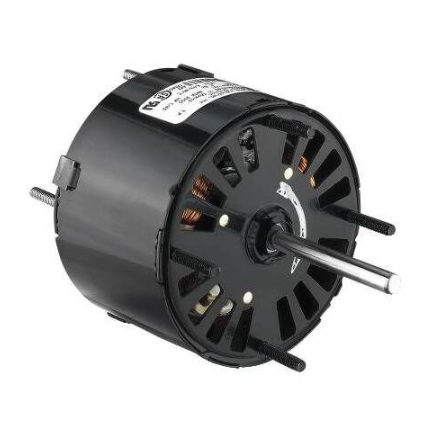

Regal Rexnord D202 Fan and Blower Motor 1/85 hp 115 v 3000 rpm

Product Description

The REGAL REXNORD D202 is a FASCO fan and blower motor operating at 1/85 HP, 1 Ph, 60 Hz, and 115 V, delivering 3000 RPM at one speed. It features a 3.3" diameter and an open air over (OAO) enclosure. This motor is thermally protected and designed for general purpose use. It is suitable for air over applications with Class B insulation and a 40°C ambient temperature.

• General Purpose Motor
• 3.3" Diameter
• Thermally Protected

Product Highlights

FASCO D202 fan and blower motor, 1/85 HP, 115 V, 3000 RPM, OAO enclosure, suitable for various air-moving applications.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: D202
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1/85 Hp
• Output KW: 0.01 kW
• Voltage: 115 V
• Speed: 3000 rpm
• Service Factor: 1
• Frame: 3.3
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: .62 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 2
• Rotation: Clockwise Shaft End
• Mounting: Extended Studs
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Steel
• Shaft Type: Flat
• Frame Length: 2.37 in
• Shaft Diameter: 0.250 in
• Shaft Extension: 2.32 in
• Brand: Regal Rexnord - Fasco
• MPN: D202
• Country of Origin: United States
• Manufacturer Name: Regal Rexnord - Fasco
• Product Number: D202
• OEM Part Number: D202
