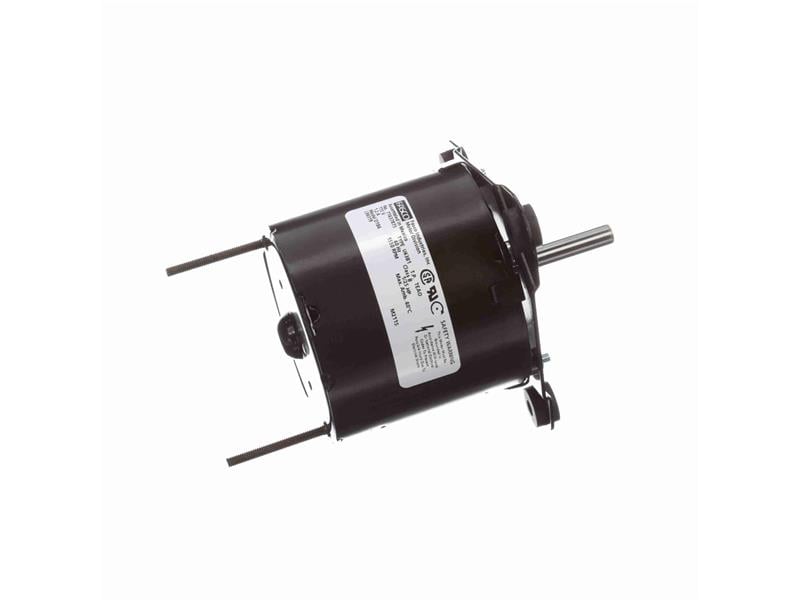

REGAL REXNORD D184 Fan and Blower Motor 1/25 HP

Product Description

The REGAL REXNORD D184 is a reliable fan and blower motor suitable for various applications. It operates at 115 volts and 60 hertz, producing one twenty-fifth horsepower with a speed of 1550 RPM. This motor features single-speed operation and a frame diameter of three point three inches. It has a Totally Enclosed Air Over (TEAO) design and automatic thermal protection to enhance safety and durability.

• Operates at 115 volts, 60 hertz
• Delivers one twenty-fifth horsepower at 1550 RPM
• Includes automatic thermal protection

Product Highlights

This motor is designed for efficient performance in a compact size. It is ideal for applications requiring a dependable fan and blower motor.

Product Information

Standard Information

• Brand: Regal Rexnord
• Manufacturing Country: China

Technical Specifications

• MPN: D184
• Output HP: 1/25 HP
• Phase: 1
• Voltage: 115 V
• Frequency: 60 Hz
• Speed: 1550 RPM
• Number of Speeds: 1
• Current: 1.6 A
• Frame: 3.3 inches
• Rotation: Clockwise Shaft End
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Drive End Bearing: Sleeve
• Shaft Extension: 5/16 x 2 1/2 inches
