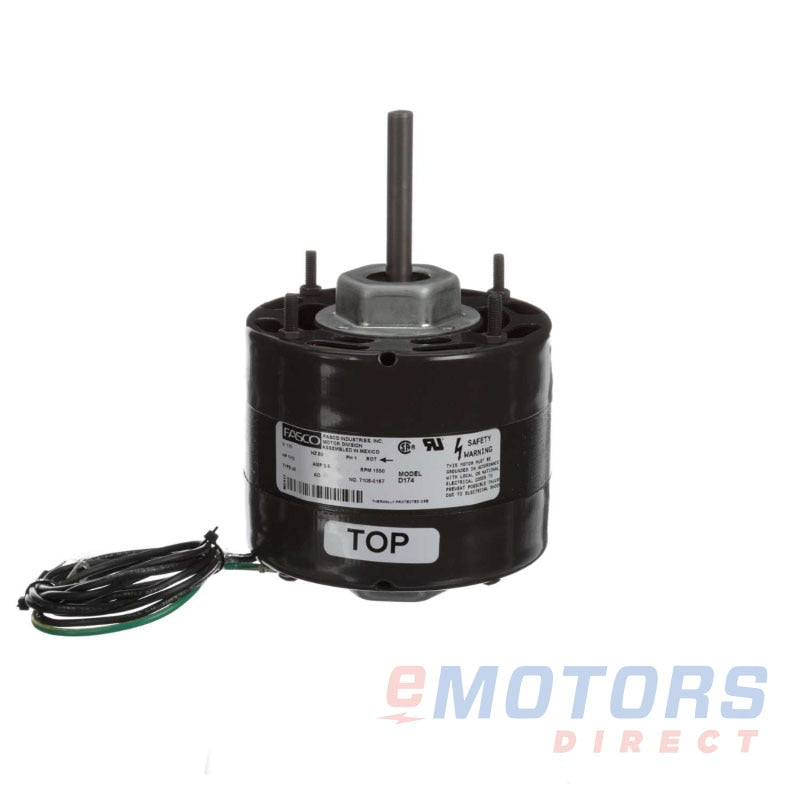

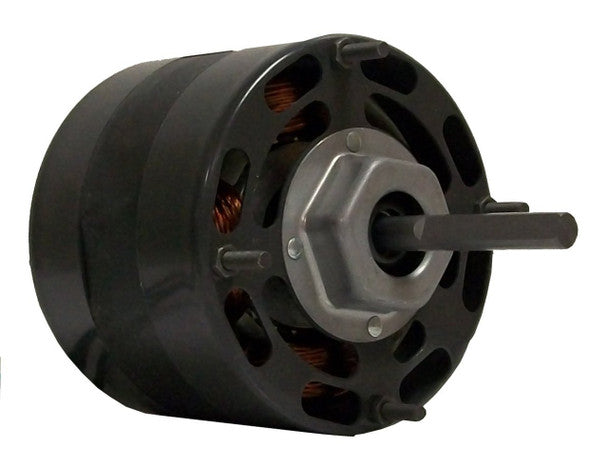

Regal Rexnord D174 Fasco Motor 1/10 HP 115V 1500 RPM CW

Product Description

The Regal Rexnord D174 is a general-purpose motor designed for air-over applications. It operates at one hundred fifteen volts and provides one-tenth horsepower with a speed of one thousand five hundred RPM. The motor features a clockwise shaft rotation and utilizes a sleeve bearing system. The frame measures four point four inches and includes stud mounting for easy installation. It requires three point five amps and is built with an open air-over enclosure. This single-phase, four-pole motor operates at sixty Hertz and delivers a rated output power of zero point zero seven kilowatts. The motor is effective in environments with ambient temperatures of up to forty degrees Celsius. The shaft diameter is three-eighths of an inch and its length is two point nine inches. The total weight of the motor is approximately six point two pounds.

• Horsepower: 1/10 HP
• Voltage: 115V
• Speed: 1500 RPM

Product Highlights

Designed for reliable operation in HVAC systems.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D174

Technical Specifications

• HP: 1/10
• Volts: 115
• RPM: 1500
• Amps: 3.5
• Enclosure: Open Air Over
• Rotation: Clockwise
• Bearing: Sleeve
• Motor Output Power: 0.07 kW
• Rated Speed: 1500 RPM
• Rated Voltage: 115V
• Rated Current: 3.5 AMP
• Phase: 1
• Poles: 4
• Frequency: 60 Hz
• Frame: 4.4
• Mounting: Stud
• Approximate Weight: 6.2 lb
• Ambient Temperature: 40 °C
• Shaft Diameter: 0.375
• Shaft Length: 2.9
