Regal Rexnord D170 Furnace Motor 1/20 HP 115V

Product Description

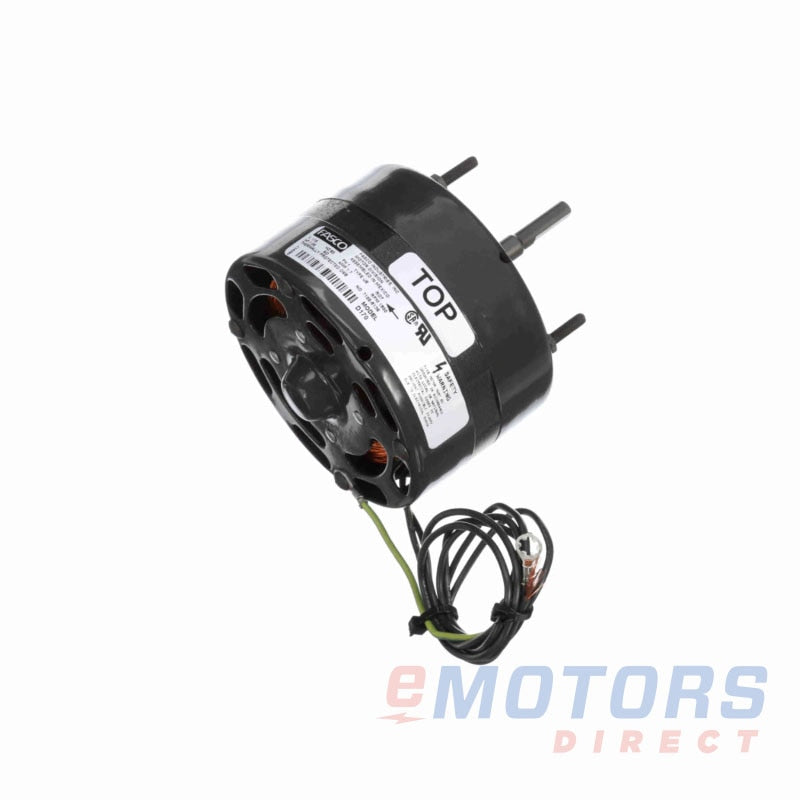

The Regal Rexnord D170 is a furnace motor specifically made for air-over applications. It operates on one hundred fifteen volts and sixty hertz, providing a rated output of one twentieth of a horsepower at one thousand five hundred revolutions per minute. The motor is single-phase with a four-pole design and draws one point seven amps.

The unit features a frame size of four point four and comes with an OAO enclosure. It has a shaft diameter of zero point three one three inches and a length of two point two inches. The motor rotates clockwise when viewed from the shaft end. It is built with Class A insulation and functions effectively in ambient temperatures that reach up to forty degrees Celsius. With a weight of approximately four point two pounds, it also includes sleeve bearings at both ends for optimal performance.

• Operates at one hundred fifteen volts, providing a rated motor output of one twentieth of a horsepower at one thousand five hundred RPM.
• Features a shaft diameter of zero point three one three inches, a length of two point two inches, and clockwise rotation for direct connections.
• Designed with Class A insulation and sleeve bearings for ambient temperatures up to forty degrees Celsius.

Product Highlights

This motor is ideal for HVAC systems requiring a reliable blower motor solution.

Product Information

Standard Information

• Rated Motor Output Power: 1/20 HP
• Rated Motor Voltage: 115V
• Rated Motor Current: 1.7 AMP
• Frame: 4.4
• Enclosure: OAO
• Weight: 4.2 lb
• Ambient Temperature: 40°C
• Insulation Class: A
• Rotation: CWSE
