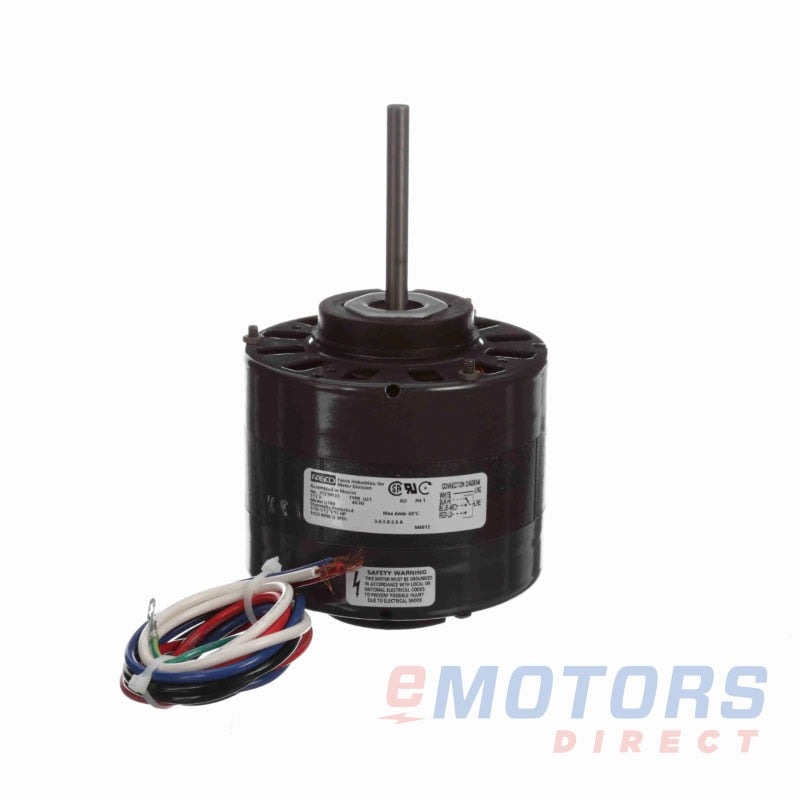

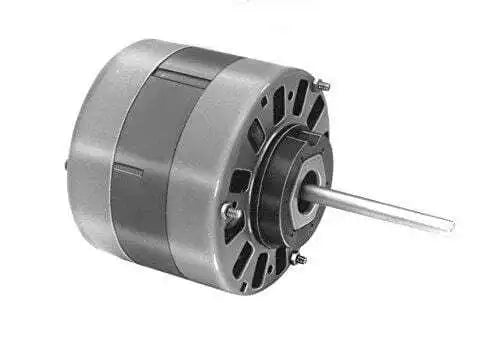

Regal Rexnord D160 - Furnace Motor 1/10 HP 115V

Product Description

The Regal Rexnord D160 is a furnace motor suitable for air-over applications. This unit operates at one hundred fifteen volts and sixty hertz, providing a rated output of one-tenth horsepower at a speed of one thousand fifty RPM. It features a single-phase design and a six-pole configuration, making it efficient for heating systems.

• Operates at 115V, delivering 1/10 HP at 1050 RPM for furnace applications.
• Features resilient mounting and sleeve bearings for stable operation.
• Agency approved by CSA & UL.

Product Highlights

The motor is designed for reliable heating performance with features that ensure long-lasting operation.

Product Information

Standard Information

• Brand: Regal Rexnord
• Manufacturer Part Number: D160

Technical Specifications

• Rated Motor Output Power: 1/10 HP
• Rated Motor Speed: 1050 RPM
• Rated Motor Voltage: 115V
• Rated Motor Current: 3.4/2.8/2.4 AMP
• Phase: 1
• Poles: 6
• Frequency: 60 Hz
• Frame: 42
• Enclosure: OAO
• Mounting: Resilient
• Approximate Weight: 9 lb
• C-Dimension: 8.47
• Insulation Class: A
• Rotation: CWSE
• Duty: Air Over
• Ambient Temperature: 40°C
• DE Bearing: SLEEVE
• NDE Bearing: SLEEVE
• Shaft Diameter: 0.375
• Shaft Length: 3.88
• Agency Approvals: CSA & UL
