Regal Rexnord D135 Fasco Motor 1/25 Hp (3.3 Inch) Replacement MPN D135

Product Description

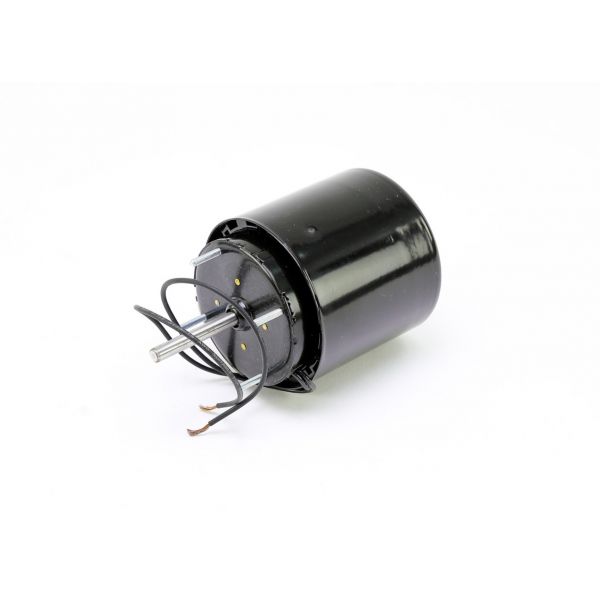

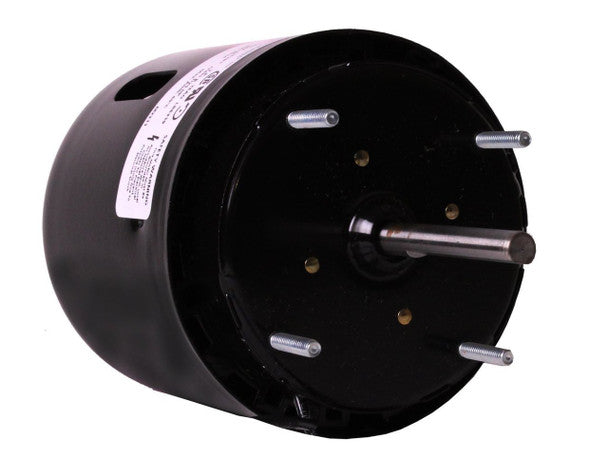

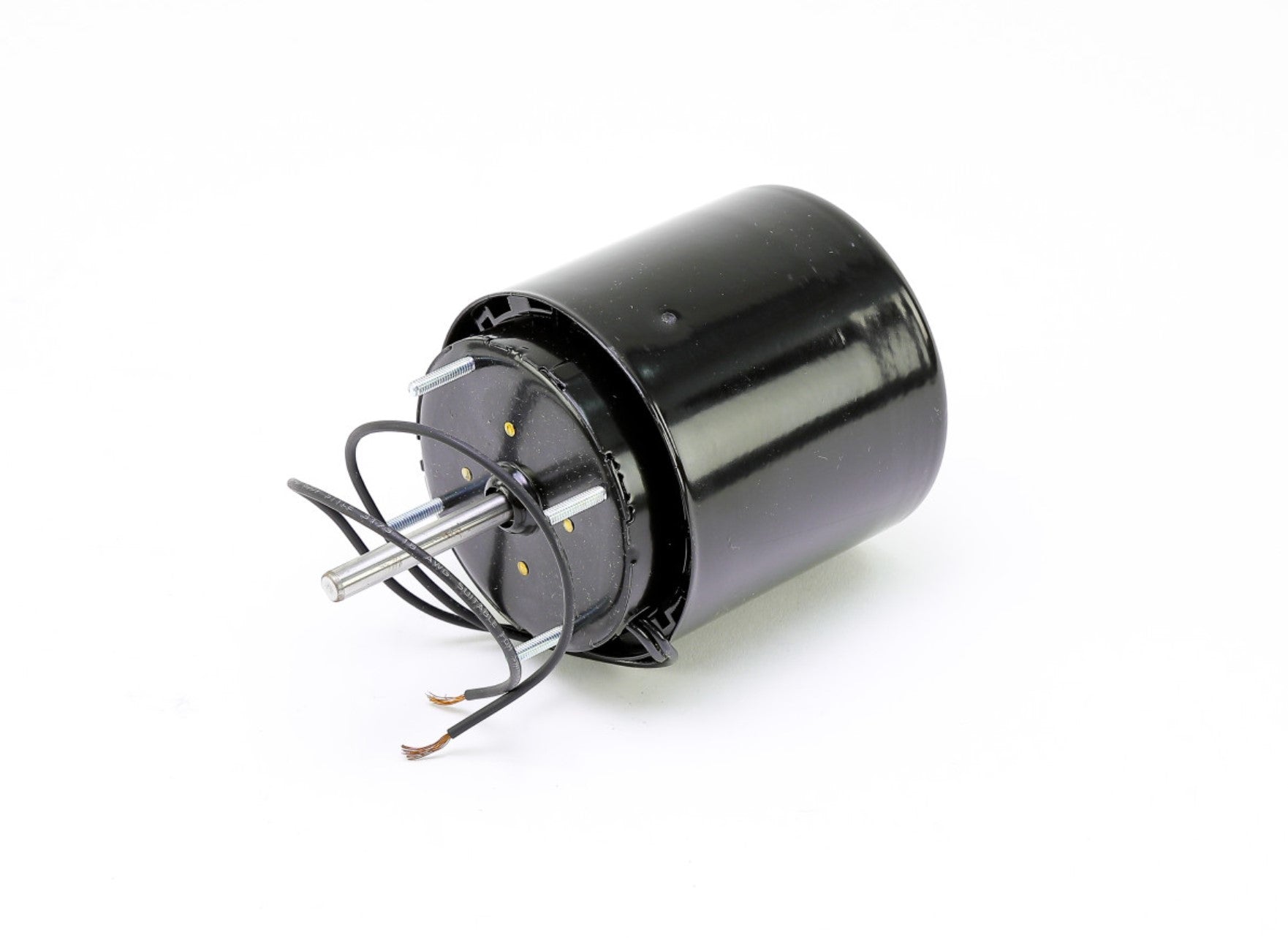

The Regal Rexnord D135 is a shaded pole motor ideal for various general applications. This single-phase motor operates at 115 volts and sixty hertz, providing a power output of one-twenty-fifth horsepower at a speed of fifteen hundred RPM. With a frame diameter of three point three inches, it is designed for ease of mounting thanks to its extended studs. The motor is thermally protected and features class B insulation, allowing it to perform effectively in ambient temperatures up to forty degrees Celsius.

• Single-phase motor operating at 115 volts and fifteen hundred RPM.
• Features a three point three inch frame and extended studs for mounting.
• Thermal protection with class B insulation.

Product Highlights

The Regal Rexnord D135 is suitable for various applications due to its reliable performance and compact design.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D135

Technical Specifications

• Phase: 1
• Output Power: 1/25 Hp
• Voltage: 115 V
• Frequency: 60 Hz
• Speed: 1500 RPM
• Current: 1.70 A
• Frame Size: 3.3 inches
• Thermal Protection: Yes
• Temperature Rating: 40 °C
• Insulation Class: B
• Rotation: Counterclockwise
• Mounting Type: Extended Studs
• Shaft Diameter: 0.313 inches
