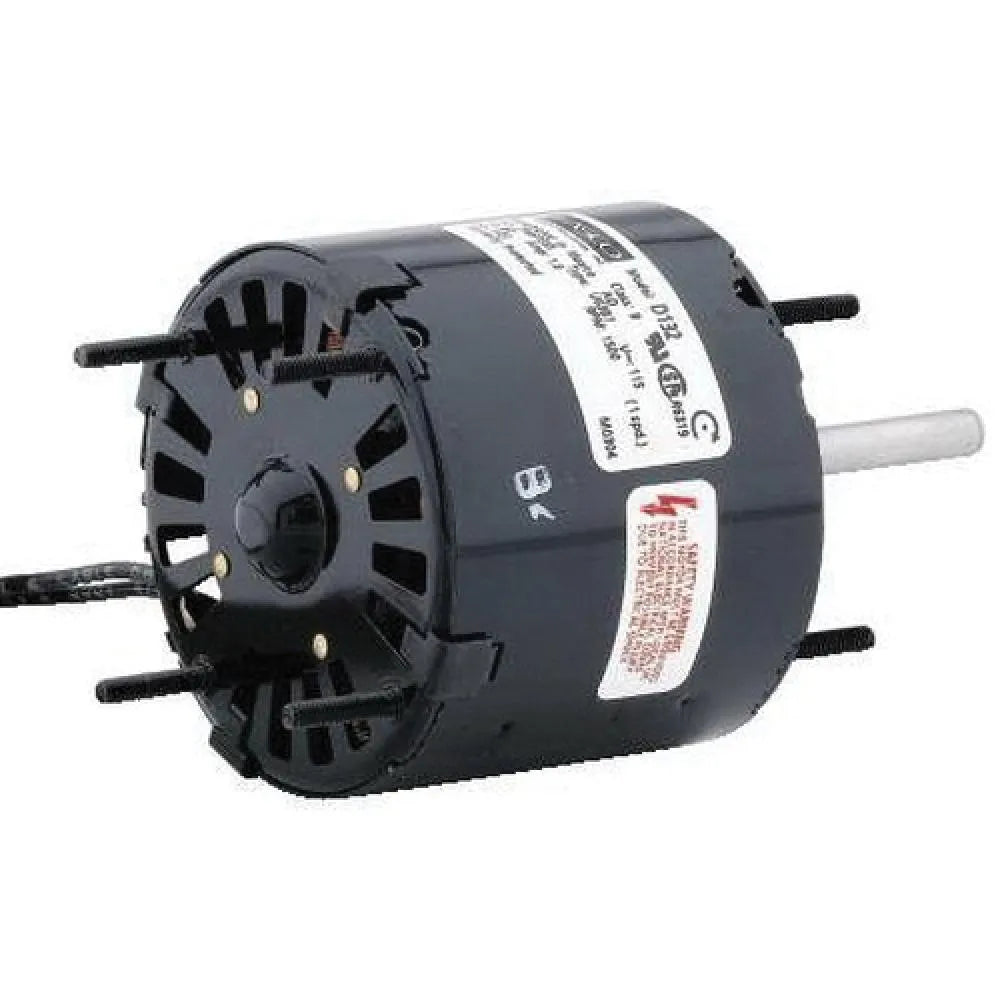

REGAL REXNORD D132 Blower Motor 1/20 hp 115 VAC

Product Description

The REGAL REXNORD D132 is a single-phase blower motor designed for direct drive air-over applications. This motor operates at one hundred fifteen volts AC and sixty Hertz, providing one-twentieth horsepower at one thousand five hundred RPM. The clockwise shaft end rotation and flat shaft design contribute to its efficiency and adaptability in various systems.

• Compact design for easy installation.
• Durable steel construction for extended life.
• Consistent performance at one thousand five hundred RPM.

Product Highlights

This blower motor is suitable for environments with temperatures up to forty degrees Celsius. It also features through-bolt mounting and sleeve bearings to ensure reliable operation.

Product Information

Standard Information

• Brand: Regal Rexnord
• Type: Blower Motor

Technical Specifications

• Item Number: D132
• Voltage: 115 VAC
• Amperage: 1.8 A
• Horsepower: 1/20 hp
• RPM: 1500 rpm
• Kilowatt: 0.04 kW
• Phase: 1 ph
• Frequency: 60 Hz
• Enclosure: Open Air Over Motor
• Shaft Diameter: 5/16 in
• Shaft Length: 2-1/4 in
• Rotation: Clockwise
• Efficiency: 35 %
• Bearing Type: Sleeve Bearing
• Mounting: Through-Bolt
• Drive Type: Direct Drive, Air Over
• Insulation Class: B
• Poles: 4
• Service Factor: 1
• Starting Method: Across the Line
• Material: Steel
• Temperature Rating: 40 deg C
• Diameter: 3.3 in
• Length: 2.75 in
