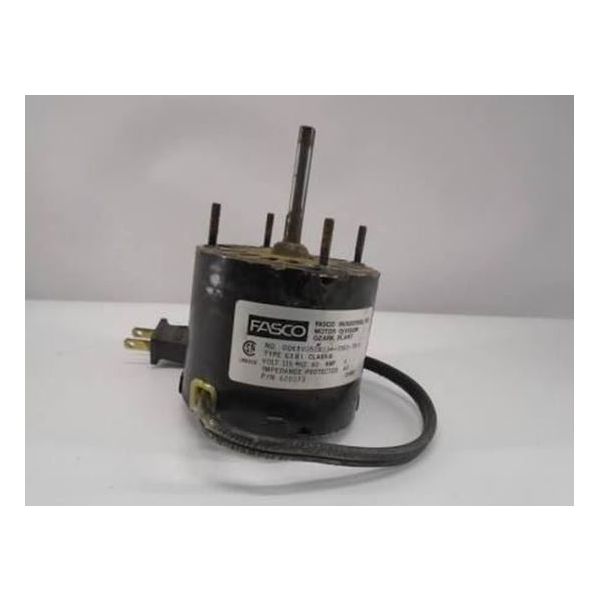

Regal Rexnord D123 Motor 1/80 HP (4.78 inches) Replacement MPN D123

Product Description

The Regal Rexnord D123 is a four-pole motor primarily used in fan and blower applications. It is a reliable motor that operates at 115 volts and a frequency of sixty hertz. This motor delivers one-eighty horsepower at one thousand five hundred revolutions per minute. The unit features a shaded pole design with a totally enclosed air over (TEAO) protection for safe operation.

• Suitable for fan and blower applications
• Operates effectively at 1500 RPM
• Utilizes a durable sleeve-bearing design

Product Highlights

The Regal Rexnord D123 motor is designed for high efficiency and reliable performance in various fan and blower systems.

Product Information

Standard Information

• Item Number: D123
• Brand: Regal Rexnord-Fasco

Technical Specifications

• MPN: D123
• Application: Fan and Blower Motor
• Poles: 4-Pole
• Horsepower: 1/80 hp
• Voltage: 115 V
• Amperage: 0.6 A
• Frequency: 60 Hz
• Phase: 1 ph
• Speed: 1500 rpm
• Enclosure: Totally Enclosed Air Over
• Frame: 3.3 Frame
• Shaft: 0.25 in Dia x 2.3 in L
• Rotation: CCWSE
• Service Factor: 1
• Bearing: Sleeve Bearing
• Mounting: Extended Stud Mounting
• Temperature: 40 deg C
• Insulation Class: Class B
• Material: Steel
• Dimensions: 3.3 in Dia x 4.78 in L
