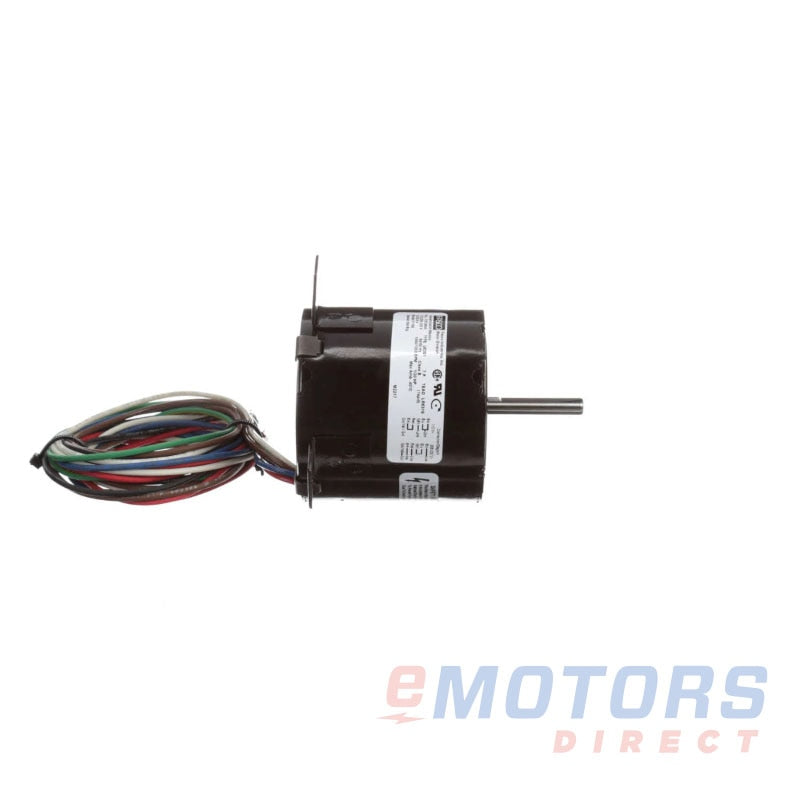

Regal Rexnord D1189 Motor 1/20 HP 115V 208-230V

Product Description

The Regal Rexnord D1189 motor is a versatile electric motor with a power output of 1/20 HP. This motor operates at both 115V and 208-230V, making it suitable for various applications. It reaches speeds of either 1550 or 1350 RPM, which are ideal for moderate to high-speed tasks. Designed for air-over applications, it features a rolled steel frame and is equipped with a TEAO (Totally Enclosed Air Over) housing for protection.

• Operates at both 115V and 208-230V for flexibility
• Delivers 1/20 HP for general purpose usage
• Achieves speeds of 1550 or 1350 RPM for diverse applications

Product Highlights

This motor is CSA and UL certified, ensuring safety in hazardous locations. The shaft measures 0.312 inches in diameter and 1.65 inches in length, designed for clockwise shaft end (CWSE) rotation. With ball bearings on both ends, it provides smooth operation and longevity.

Product Information

Standard Information

• Brand: Regal Rexnord
• Rated Motor Output Power: 1/20 HP

Technical Specifications

• Rated Motor Speed: 1550, 1350 RPM
• Rated Motor Voltage: 115V, 208-230V
• Rated Motor Current: 1.60/0.80 AMP
• Phase: 1
• Poles: 4
• Frame: 3.3
• Enclosure: TEAO
• Approximate Weight: 4.6 lb
• Rotation: CWSE
• Agency Approvals: CSA & UL
• Country of Origin: Mexico
• Warranty: 1-Year
