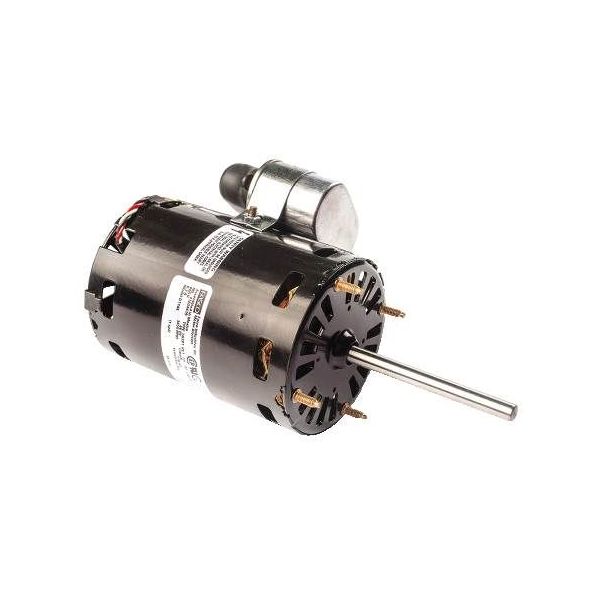

REGAL REXNORD D1184 Motor 1/16 HP 460V

Product Description

The REGAL REXNORD D1184 motor operates at a voltage of 460V and achieves a speed of 3450 RPM. This single-speed motor features counter-clockwise shaft rotation and is constructed with durable ball bearings for reliability. Designed for draft inducers in HVAC systems, this motor is thermally protected for safety and longevity. It is classified as a permanent split capacitor type and requires a capacitor for operation.

• Operates at 3450 RPM
• Counter-clockwise shaft rotation
• Thermally protected for safety

Product Highlights

This motor is suitable for various industrial applications, especially in HVAC systems. The compact design allows for straightforward installation in different setups.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D1184

Technical Specifications

• Horsepower: 1/16 HP
• Voltage: 460 V
• Speed: 3450 RPM
• Rotation: Counterclockwise Shaft End
• Phase: 1
• Current: 0.3 A
• Ambient Temperature: 40 °C
• Duty: Air Over
• Mounting: Extended Studs
• Shaft Type: Double Flat
• Weight: 5.03 lbs
• Dimensions: Length: 12.4 inches, Width: 5.55 inches, Height: 4.4 inches
