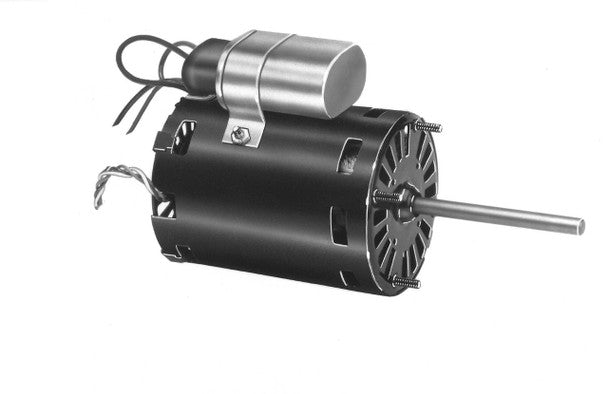

REGAL REXNORD D1182 PSC Motor

Product Description

The REGAL REXNORD D1182 is a fractional horsepower PSC motor. It runs on 208 to 230 volts and reaches a speed of three thousand four hundred fifty RPM. This single-phase motor features an open air over enclosure and is suitable for air over applications.

• Speed of three thousand four hundred fifty RPM.
• Operates at 208-230 volts, sixty Hertz.
• Includes a permanent split capacitor (PSC) for efficient operation.

Product Highlights

The D1182 motor is designed for reliability and efficiency. The double flat shaft makes it easy to install, while the thermally protected feature ensures longevity. This motor is ideal for various HVAC applications, including fans, blowers, and pumps, ensuring optimal performance.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D1182

Technical Specifications

• Phase: 1
• Output Power: 1/16 Hp
• Voltage: 208-230 V
• Speed: 3450 RPM
• Service Factor: 1
• Frame Size: 3.3
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Current: 0.6 A
• Insulation Class: B
• UL Listed: Recognized
• CSA Certified: Y
• Shaft Type: Double Flat
• Overall Length: 8.16 inches
• Shaft Diameter: 0.312 inches
