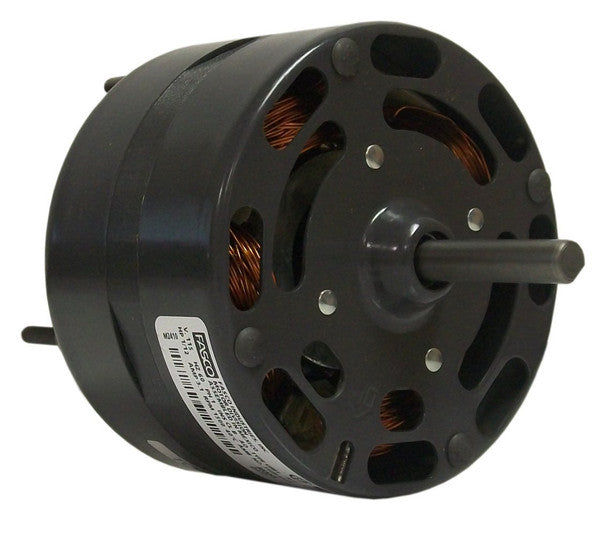

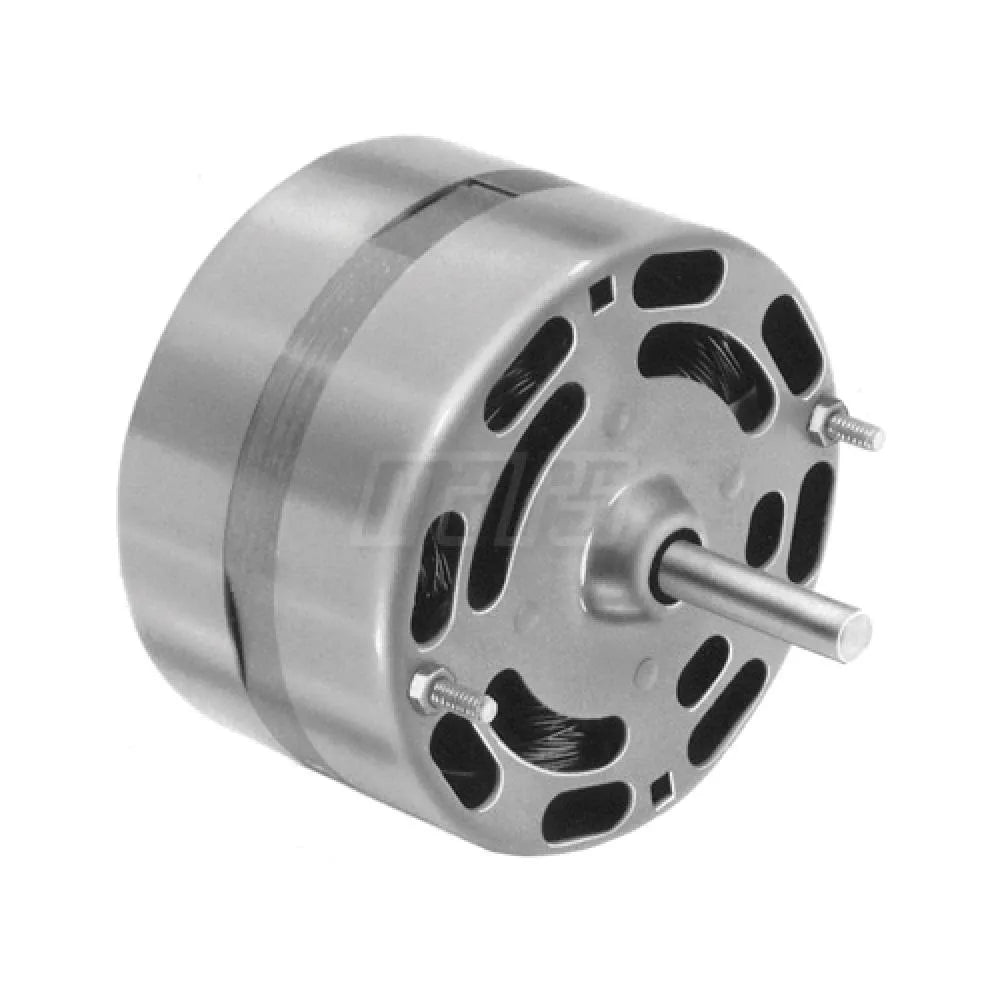

Regal Rexnord D116 - Fasco Motor 1/15 HP 115V OEM Replacement

Product Description

The Regal Rexnord D116 is a Fasco motor designed to operate at 115V. It delivers a power output of 1/15 horsepower at a rotational speed of 1500 RPM in a clockwise direction. Built with an open ventilated enclosure, the motor is equipped with sleeve bearings and features stud mounting. It is suitable for air-over applications and comes with a flat shaft measuring 3/8 inch in diameter and 2-3/8 inches in length. The construction incorporates galvanized steel and copper, ensuring durability.

• Operates at 115V, delivering 1/15 horsepower at a rotational speed of 1500 RPM.
• Includes a flat shaft with a 3/8 inch diameter and designed for air-over applications.
• Compatible with standard electrical systems and suitable for various industrial usages.

Product Highlights

This single-phase, four-pole motor operates effectively in many industrial applications.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D116

Technical Specifications

• Horsepower: 1/15 hp
• Voltage: 115 V
• RPM: 1500 rpm
• Amps: 2.4 A
• Enclosure: Open Ventilated Motor Enclosure
• Rotation: Clockwise
• Bearing Type: Sleeve Bearing
• Shaft Diameter: 3/8 in
• Shaft Length: 2-3/8 in
• Mounting: Stud Mounting
• Insulation Class: A
• Poles: 4 Poles
• Temperature Rating: 40 degrees Celsius
• Diameter: 4.4 in
• Power Source: Corded Electric
• Material: Galvanized Steel, Copper, Metal
• Item Dimensions: Width: 4.000 in, Length: 5.000 in, Item Diameter: 8 in
• Weight: 5 pounds
