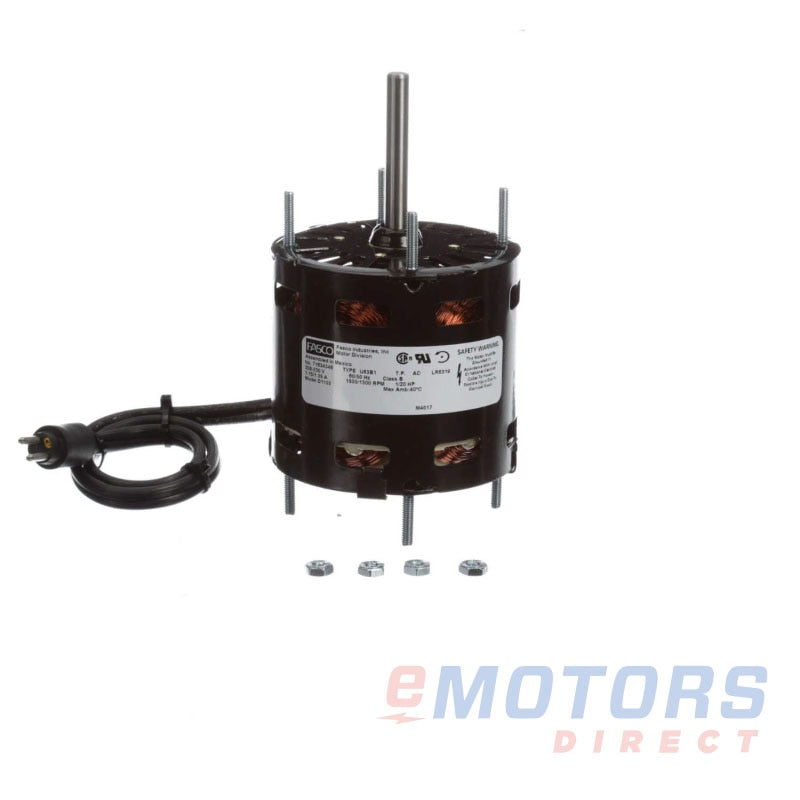

REGAL REXNORD D1103 Fasco Motor 1/20 HP 208-230V OEM Replacement Motors

Product Description

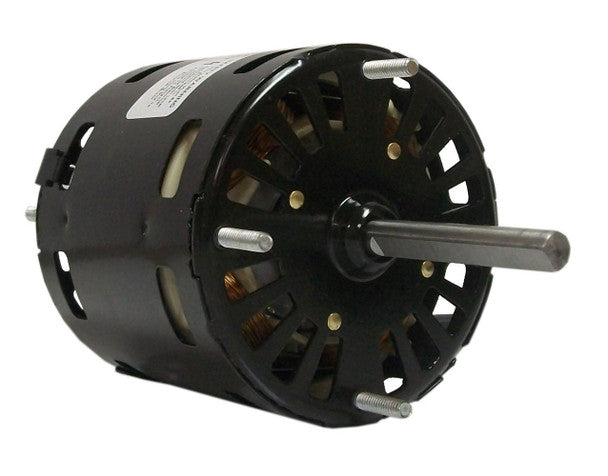

The REGAL REXNORD D1103 is a single-phase motor designed specifically for air-over applications. This motor operates on a voltage of 208-230V and delivers a power output of 1/20 HP with rated speeds of 1500 or 1300 RPM. It features a counter-clockwise shaft end rotation and a diameter of three point three inches. The rolled steel frame incorporates stud mounting and sleeve bearings for durability.

• Operates at 208-230V with a rated motor speed of 1500 or 1300 RPM.
• Features a three point three-inch diameter frame with sleeve bearings and counter-clockwise rotation.
• Designed for air-over applications with a maximum ambient temperature of 40 degrees Celsius.

Product Highlights

This motor is built with an OAO enclosure and insulation class B, making it suitable for various environments. With CSA and UL agency approvals, it assures compliance with safety standards.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D1103

Technical Specifications

• HP: 1/20
• Volts: 208-230V
• RPM: 1500, 1300
• Amps: 1.15/1.35
• Rotation: CCWSE
• Bearing: Sleeve
• Diameter: 3.3 inches
• Shaft Diameter: 0.313 inches
• Shaft Length: 2.25 inches
• Agency Approvals: CSA & UL
• Weight: 3.4 lb
• Frame Material: Rolled Steel
• Enclosure: OAO
• Duty: Air Over
• Ambient Temperature: 40 degrees Celsius
