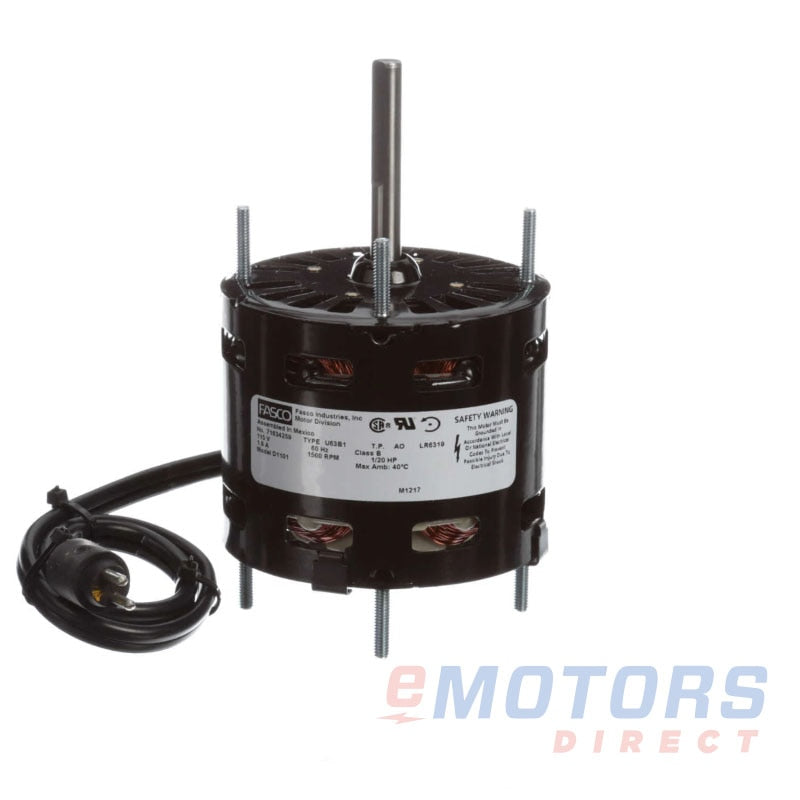

REGAL REXNORD D1101 FASCO Furnace Motor 1/20 HP

Product Description

The REGAL REXNORD D1101 is a single-phase furnace motor designed for effective heating applications. This motor has a rated output of 1/20 horsepower and a speed of 1500 RPM. It operates efficiently at 115V and draws 1.9 AMP of current at a frequency of 60 Hz. The motor is equipped with a durable open air over (OAO) enclosure and features stud mounting for secure installation. Constructed from rolled steel, it weighs approximately 3.4 pounds and is suited for air over duty. It also has a counter-clockwise (CCW) shaft end rotation, making it ideal for specific configurations.

• Operates at 115V with a rated speed of 1500 RPM.
• Features an open air over (OAO) enclosure and stud mounting.
• Designed for furnace applications requiring 1/20 horsepower.

Product Highlights

This motor is designed for reliable performance in heating systems, ensuring optimal heat distribution and efficiency.

Product Information

Standard Information

• Brand: REGAL REXNORD
• MPN: D1101

Technical Specifications

• Rated Motor Output Power: 1/20 HP
• Rated Motor Speed: 1500 RPM
• Rated Motor Voltage: 115V
• Rated Motor Current: 1.9 AMP
• Phase: 1
• Poles: 4
• Frame: 3.3
• Enclosure: OAO
• Mounting: Stud
• Approximate Weight: 3.4 lb
• Insulation Class: B
• Rotation: CCWSE
• Ambient Temperature: 40°C
• DE Bearing: Sleeve
• NDE Bearing: Sleeve
• Shaft Diameter: 0.313 inches
• Shaft Length: 2.25 inches
