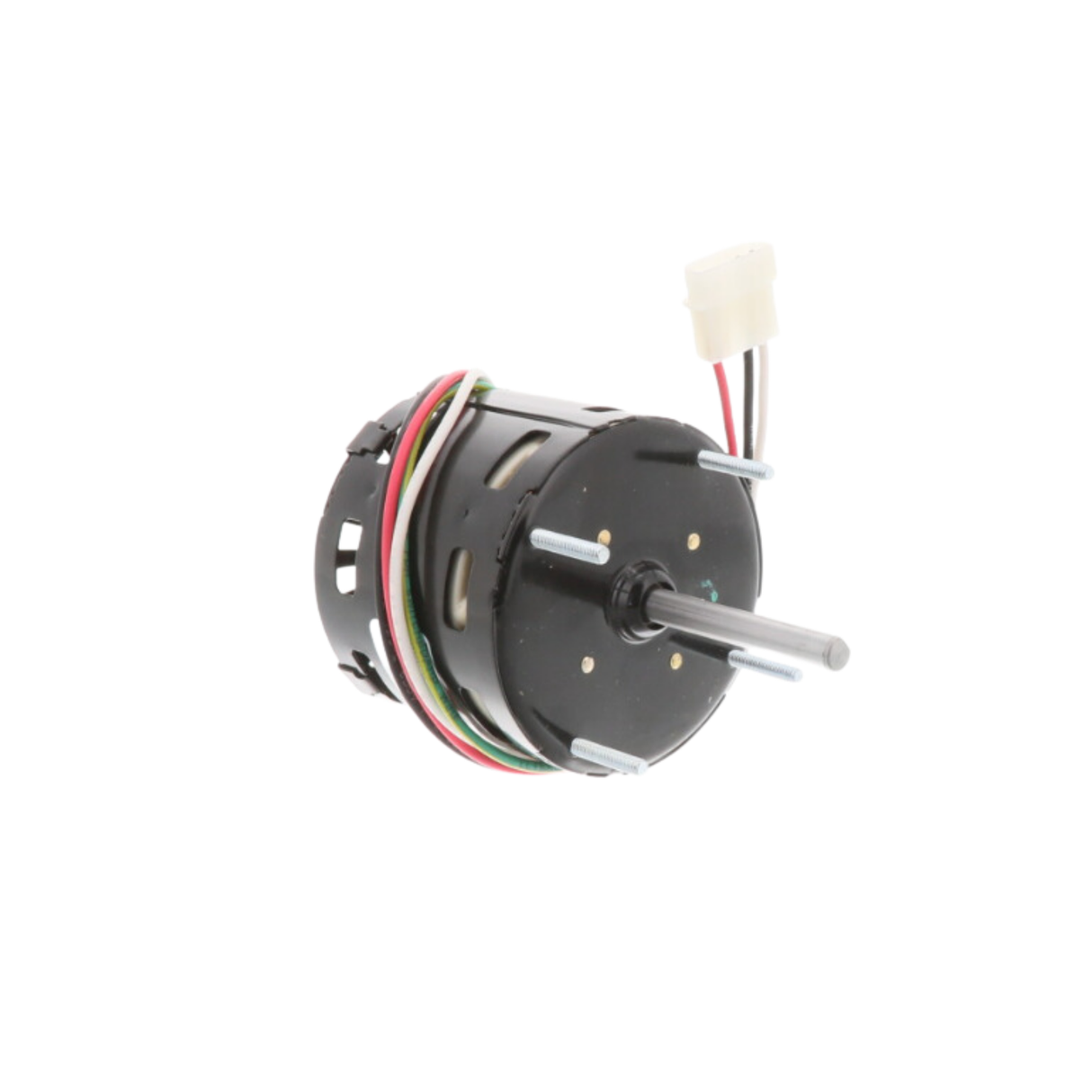

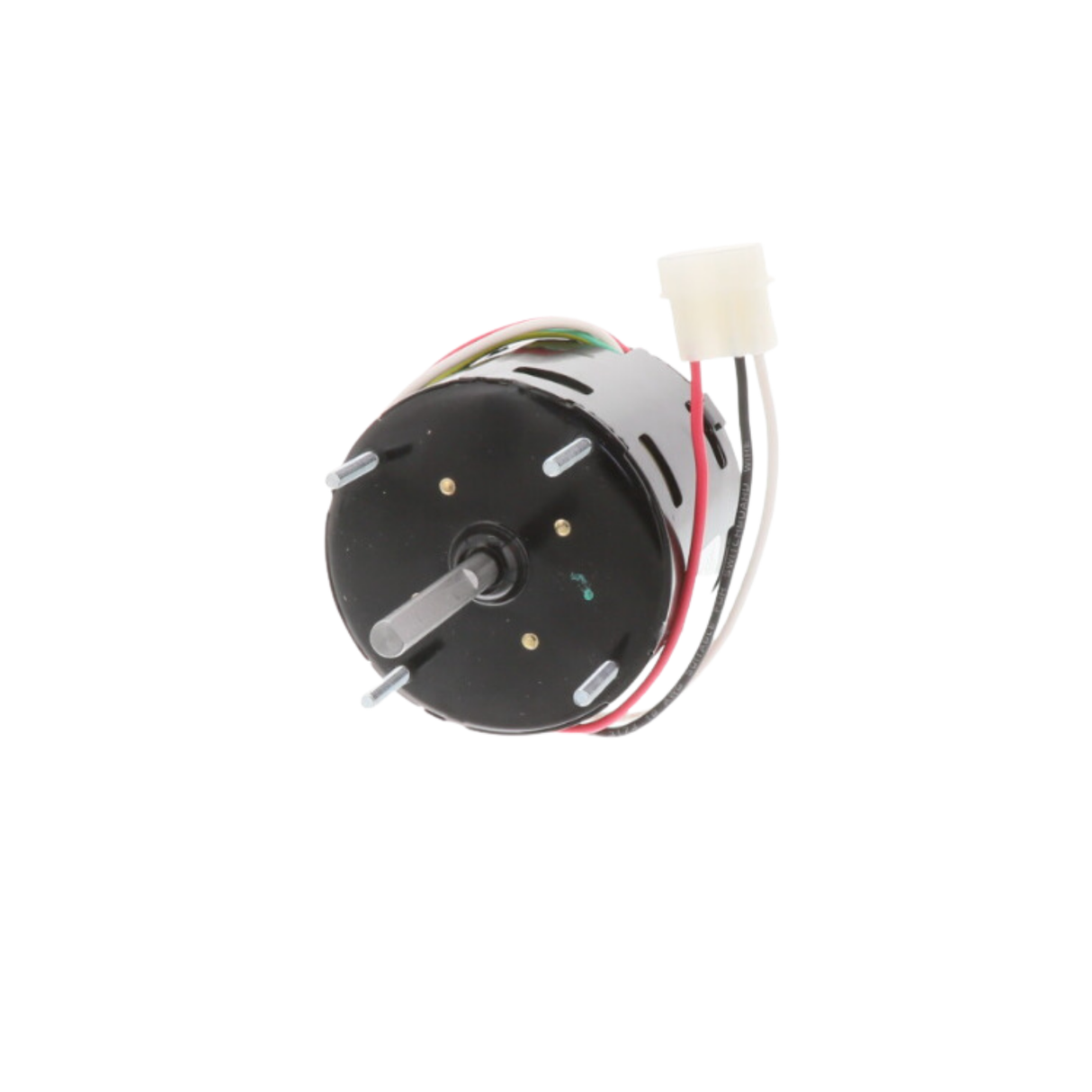

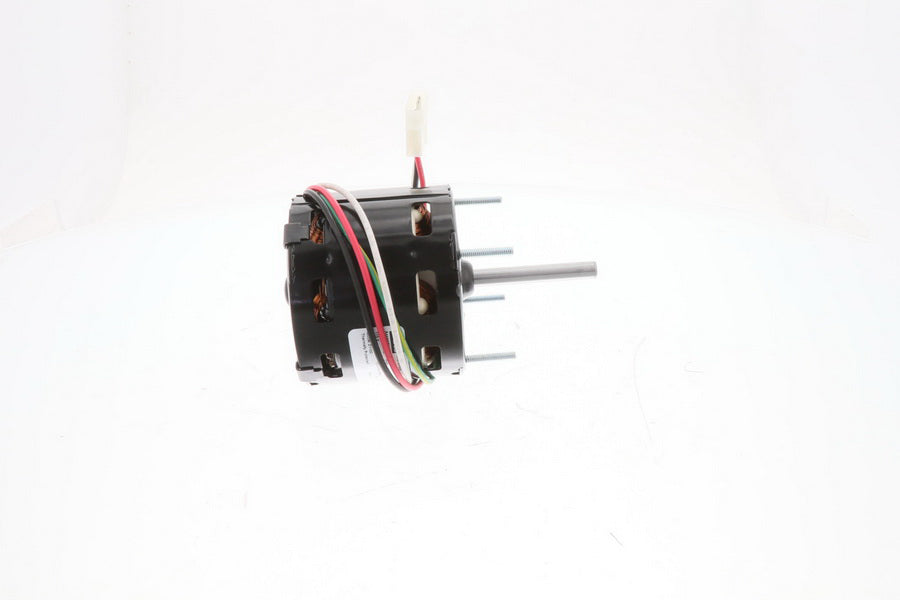

Regal Rexnord D1100 Fasco OEM Replacement Motor 1/50 Hp 115 V 1550/900 Rpm

Product Description

The Regal Rexnord D1100 Fasco OEM replacement motor operates at 1/50 HP, 115 V, and 60 Hz. Running at 1550/900 RPM with two speeds, this motor has a 3.3" diameter and open air over enclosure. It is thermally protected and features class B insulation, suitable for 40°C ambient temperatures. The motor is designed with extended studs mounting and sleeve bearings.

• OEM Direct Replacement Motor
• 3.3" Diameter
• Thermally Protected

Product Highlights

This Fasco motor is ideal for direct equipment replacement, ensuring efficient performance with its shaded pole design and durable construction.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: D1100
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1/50 Hp
• Output KW: 0.01 kW
• Voltage: 115 V
• Speed: 2Sp
• Service Factor: 1
• Frame: 3.3
• Enclosure: Open Air Over
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.20/0.70 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 2
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 4/6
• Rotation: Clockwise Shaft End
• Mounting: Extended Studs
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Steel
• Shaft Type: Flat
• Overall Length: 5.51 in
• Frame Length: 2.57 in
• Shaft Diameter: 0.313 in
• Shaft Extension: 2.45 in
• Manufacturer: Regal Rexnord - Fasco
• Manufacturer Part Number: D1100
• Product Type: Motor
• Input Voltage: 115V
• Power Rating: 1/50HP
• Rotation Speed: 1550/900RPM
• HP: 1/50
• RPM: 1550/900
• Brand: Regal Rexnord-Fasco
