REGAL REXNORD D1080 1/6 HP Furnace Motor

Product Description

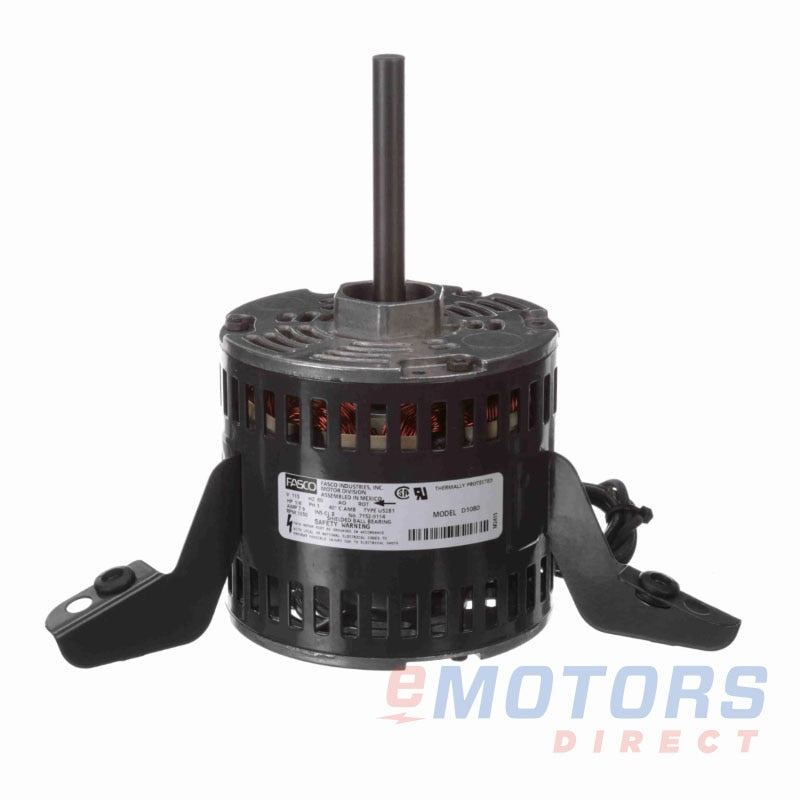

The REGAL REXNORD D1080 is a 1/6 horsepower furnace motor that operates at 115 volts. This motor is ideal for furnace applications, running at a speed of 1050 RPM with a current draw of 7.9 AMP. It features a single-phase, 6-pole design and utilizes an Open Air Over enclosure which aids in heat dissipation, making it suitable for various installations.

• Rated for 115V, 1050 RPM with a current of 7.9 AMP.
• Includes a three-lug mounting option and rolled steel frame for durability.
• Certifications from CSA and UL ensure compliance with safety standards.

Product Highlights

This furnace motor is built for effective and reliable performance in heating applications. The 42 frame size and designed clockwise shaft end rotation make it compatible with a variety of setups. The motor's ambient temperature operates up to 40 degrees Celsius, which is optimal for high-demand environments.

Product Information

Standard Information

• Brand: REGAL REXNORD
• MPN: D1080

Technical Specifications

• Rated Motor Output Power: 1/6 HP
• Rated Motor Speed: 1050 RPM
• Rated Motor Voltage: 115V
• Rated Motor Current: 7.9 AMP
• Phase: 1
• Poles: 6
• Frame: 42
• Enclosure: OAO
• Mounting: Three Lug Mount
• Approximate Weight: 11.6 lb
• DE Bearing: BALL
• NDE Bearing: BALL
• Shaft Diameter: 0.5 inches
• Shaft Length: 4 inches
• Agency Approvals: CSA & UL
• Country of Origin: MEXICO
• Warranty: 1 YEAR
