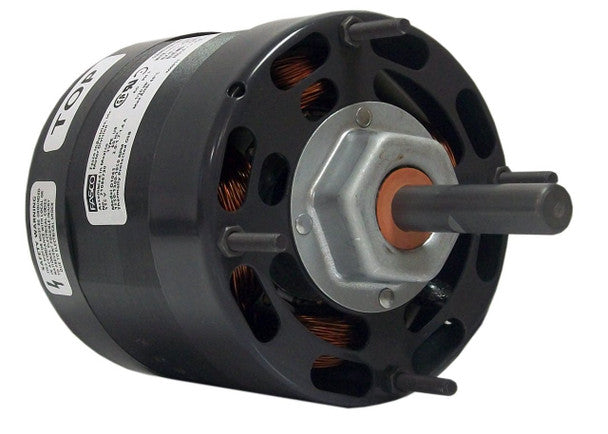

REGAL REXNORD D1061 Fasco Motor 115V (OEM Replacement Motor)

Product Description

The REGAL REXNORD D1061 is a Fasco shaded pole motor designed for use in HVAC applications. Operating at one hundred fifteen volts, this motor features three-speed settings providing options for one over twenty, one over thirty, or one over sixty horsepower at one thousand five hundred fifty RPM. It has a counter-clockwise rotation and utilizes sleeve bearings for efficient performance.

• Operates at 115 volts with multiple horsepower options.
• Three-speed functionality at 1550 RPM for various operational needs.
• Counter-clockwise rotation with sleeve bearings enhances application versatility.

Product Highlights

This motor is suitable for HVAC systems requiring reliable and variable motors. The design includes extended studs for convenient mounting and an open air-over enclosure which is essential for heat dissipation.

Product Information

Standard Information

• Electrical Type: Shaded Pole
• Phase: Single

Technical Specifications

• Voltage: 115V
• Horsepower: 1/20 - 1/30 - 1/60 HP
• RPM: 1550
• Speed: 3 Speed
• Amps: 2.0 - 1.7 - 1.4 Amps
• Rotation: CCW Rotation
• Diameter: 4.4 inches
• Motor Type: Shaded Pole
• KW: 0.04
• Enclosure: Open Air Over
• Mounting: Extended Studs
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Shaft Extension: 2.750 inches
