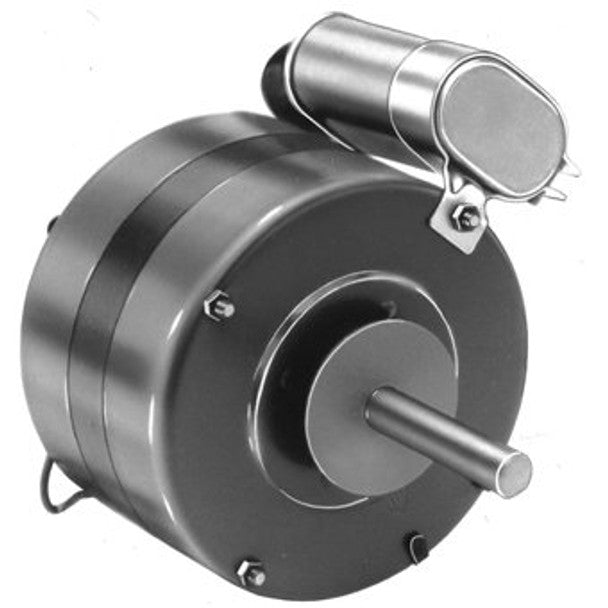

Regal Rexnord D1050A Motor 1/8 HP 230V Replacement MPN D1050A

Product Description

The Regal Rexnord D1050A is a reliable OEM replacement motor designed for various applications. It runs on 230V and 60 Hz, providing an output of 1/8 HP at a speed of 1550 RPM. This motor is equipped with Class B insulation and features automatic thermal protection. The design includes an open air over enclosure and a half-inch diameter shaft with a flat, making it ideal for different setups.

• Operates at 230V, 60 Hz, single phase.
• Delivers 1/8 HP at 1550 RPM.
• Includes a supplied capacitor for easy installation.

Product Highlights

This motor is suitable for HVAC systems, pool pumps, and other appliances requiring efficient performance.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: D1050A

Technical Specifications

• Phase: 1
• Output HP: 1/8 HP
• Voltage: 230 V
• Speed: 1550 RPM
• Service Factor: 1
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Current: 1.1 A
• Shaft Diameter: 0.500 inches
