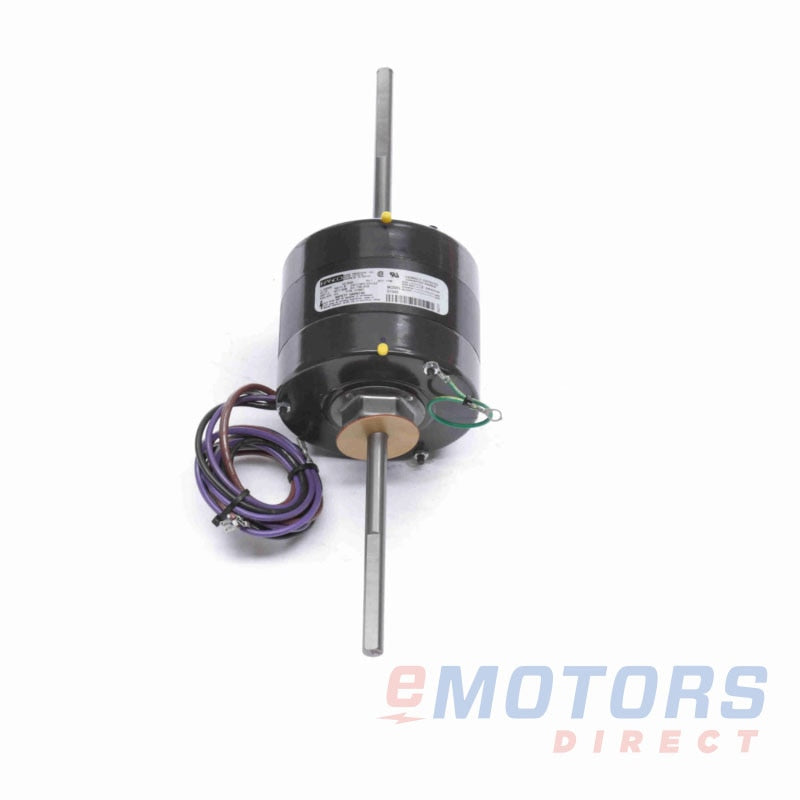

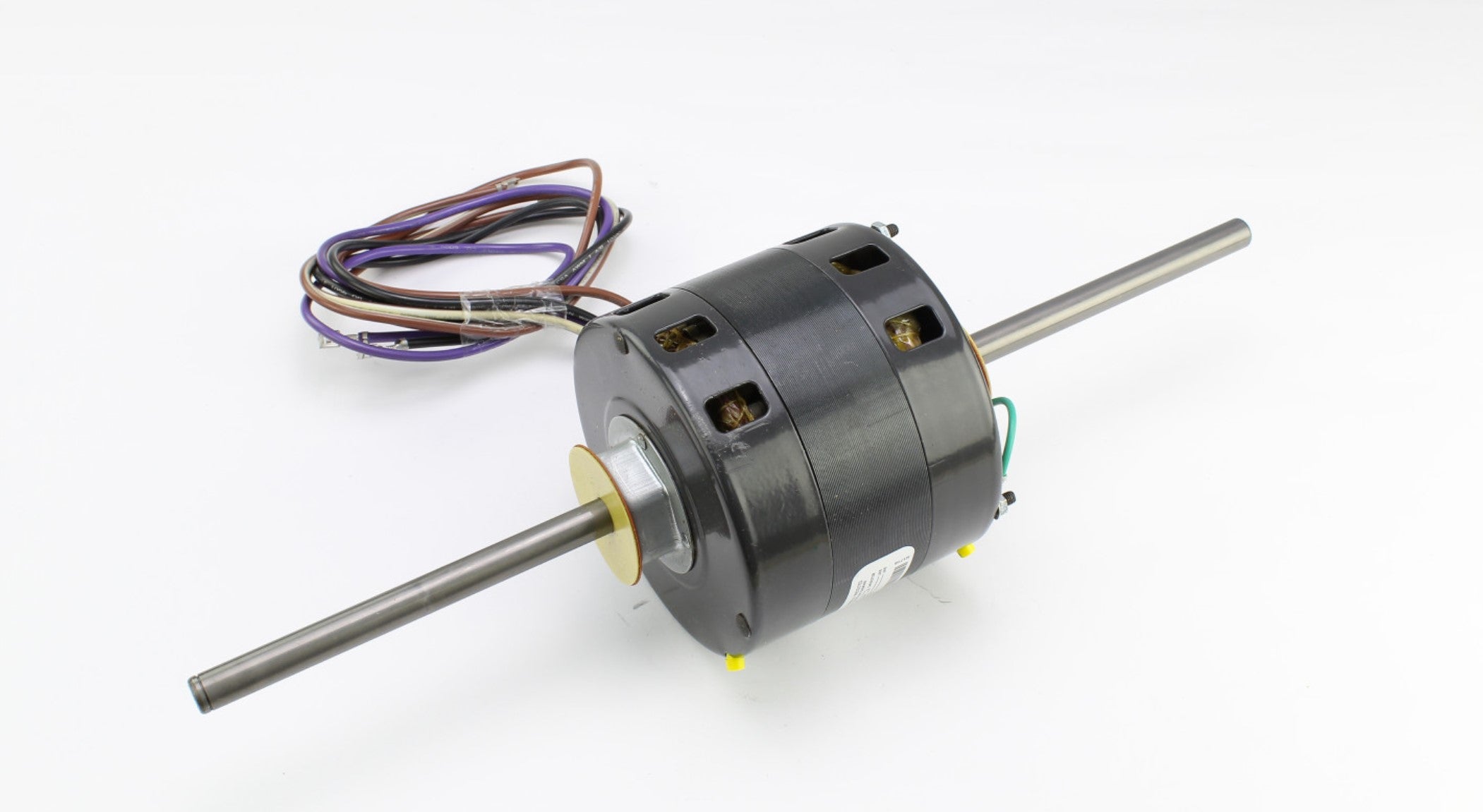

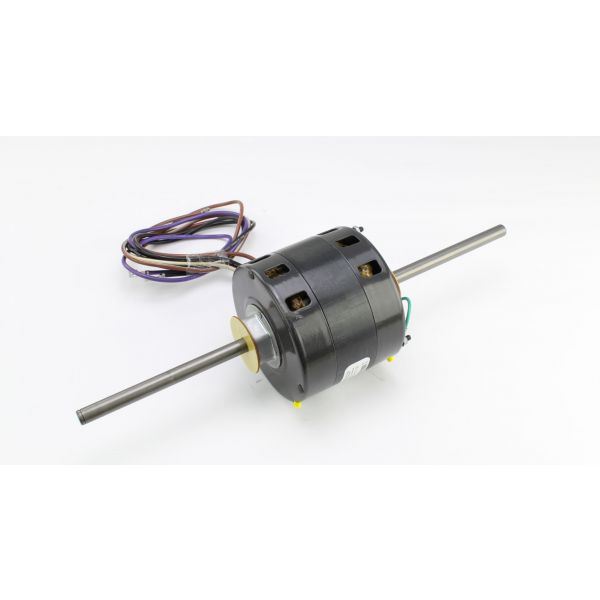

Regal Rexnord D1042 Motor - 1/5 HP - 208-230V - 1075 RPM - D1042

Product Description

The Regal Rexnord D1042 is a single-phase motor designed for efficient performance. It operates at a power output of 1/5 HP and runs at a voltage of 208-230V. This motor provides a speed of 1075 RPM with a counter-clockwise rotation. It features an open air over enclosure and is well-suited for continuous duty applications.

• Rated for 1/5 HP with a speed of 1075 RPM.
• Designed for 208-230V single-phase power.
• Features a compact design with hub mounting and sleeve bearings.

Product Highlights

Ideal for industrial applications, the Regal Rexnord D1042 motor ensures reliable operation with robust construction.

Product Information

Standard Information

• Brand: Regal Rexnord
• Item Number: D1042

Technical Specifications

• Rated Motor Output Power: 1/5 HP
• Rated Motor Speed: 1075 RPM
• Rated Motor Voltage: 208-230V
• Rated Motor Current: 1.2 AMP
• Phase: 1
• Poles: 6
• Frequency: 60 Hz
• Run Capacitor: 5 Mfd-370 Volts
• Frame: 42
• Enclosure: OAO
• Mounting: Hub
• Approximate Weight: 12 lb
• C-Dimension: 17.17
• Insulation Class: B
• Rotation: CCW
• Duty: Continuous
• Ambient Temperature: 40°C
• DE Bearing: Sleeve
• NDE Bearing: Sleeve
• Shaft Diameter: 0.5
• Shaft Length: 6.5
• Agency Approvals: CSA & UL
