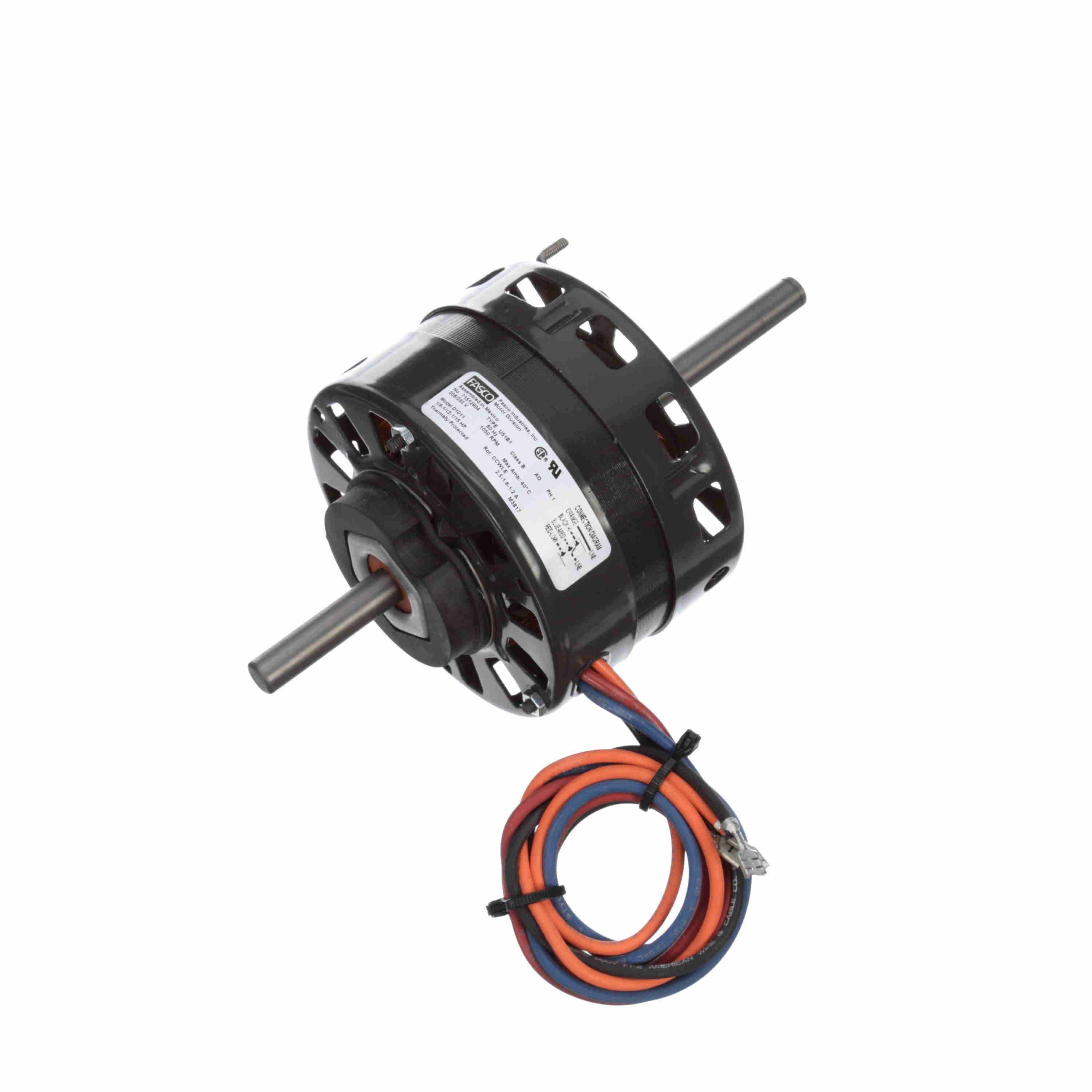

REGAL REXNORD D1011 OEM Replacement Motor 208/230V 1/16-1/12-1/15 HP

Product Description

The Regal Rexnord D1011 is an OEM replacement motor ideal for air-over applications. This motor operates at 208/230V with a frequency of sixty hertz, and delivers 1/16-1/12-1/15 horsepower at a speed of 1050 RPM.

• Operates at 208/230V and 60 Hz.
• Features three-speed operation with thermal protection.
• Open air over enclosure design.

Product Highlights

This motor is constructed for durability and efficiency, making it suitable for a variety of air handling units and ventilation systems. Its thermal protection ensures reliable operation, and the multiple speed options allow for flexibility in application.

Product Information

Standard Information

• Brand: Regal Rexnord
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: D1011
• Phase: 1
• Output Horsepower: 1/16-1/12-1/15 HP
• Voltage: 208/230 V
• Speed: 1050 RPM
• Frame Size: 42
• Enclosure: Open Air Over
• Thermal Protection: Yes
• Duty: Air Over
• Number of Speeds: 3
• Electrical Type: Shaded Pole
• Rotation: Clockwise Shaft End
• Shaft Diameter: 0.500 in
• Overall Length: 9.38 in
