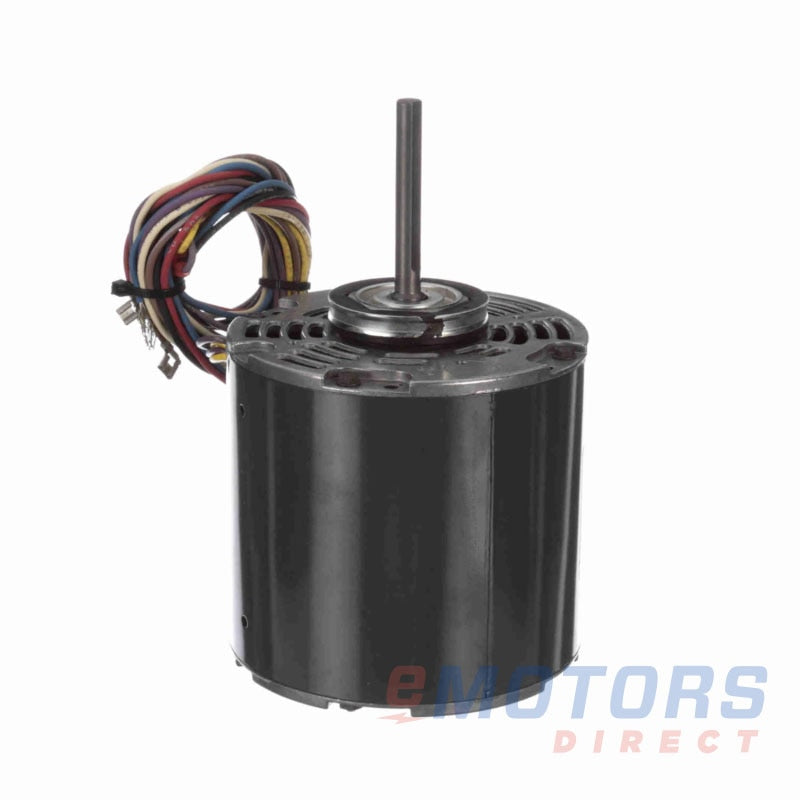

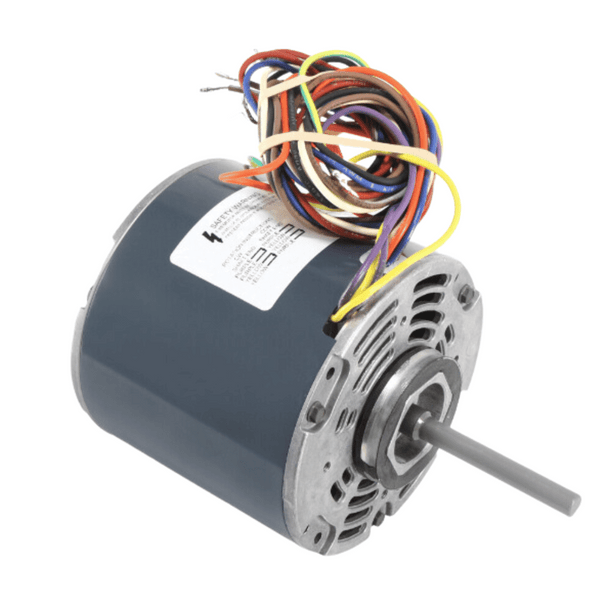

Regal Rexnord D0614 Motor 1/10 HP 115V 230V

Product Description

The Regal Rexnord D0614 motor is suitable for various applications. It operates on both 115V and 230V, delivering a power output of 1/10 horsepower. With a speed of 1550 RPM, it is designed to meet the demands of continuous operation. The motor features a rolled steel frame and an aluminum flange for durability.

• Operates on 115V or 230V
• Delivers 1/10 horsepower
• Speed of 1550 RPM

Product Highlights

This motor is ideal for use in HVAC systems, ventilation, and other continuous operation scenarios. Its construction allows for efficient heat dissipation, ensuring reliability over time.

Product Information

Standard Information

• Brand: Regal Rexnord - Fasco
• Manufacturer Part Number: D0614

Technical Specifications

• Rated Motor Voltage: 115V, 230V
• Rated Motor Output Power: 1/10 HP, 0.07 kW
• Rated Motor Current: 1.93-0.97 AMP
• Rated Motor Speed: 1550 RPM
• Frequency: 60 Hz
• Phase: 1
• Poles: 4
• Enclosure: OAO
• Mounting: Resilient
• Frame: 42
• Frame Material: Rolled Steel
• Rotation: Reversible
• Duty: Continuous Air Over
• Insulation Class: B
• Ambient Temp: 40°C
• DE Bearing: BALL
• NDE Bearing: BALL
• Shaft Diameter: 0.375 inches
• Shaft Length: 3.25 inches
• Approximate Weight: 9 lb
• Agency Approvals: CSA & UL
• Run Capacitor: 5 Mfd-370 Volts
• Removable Feet: No
• Double Drilled: No
