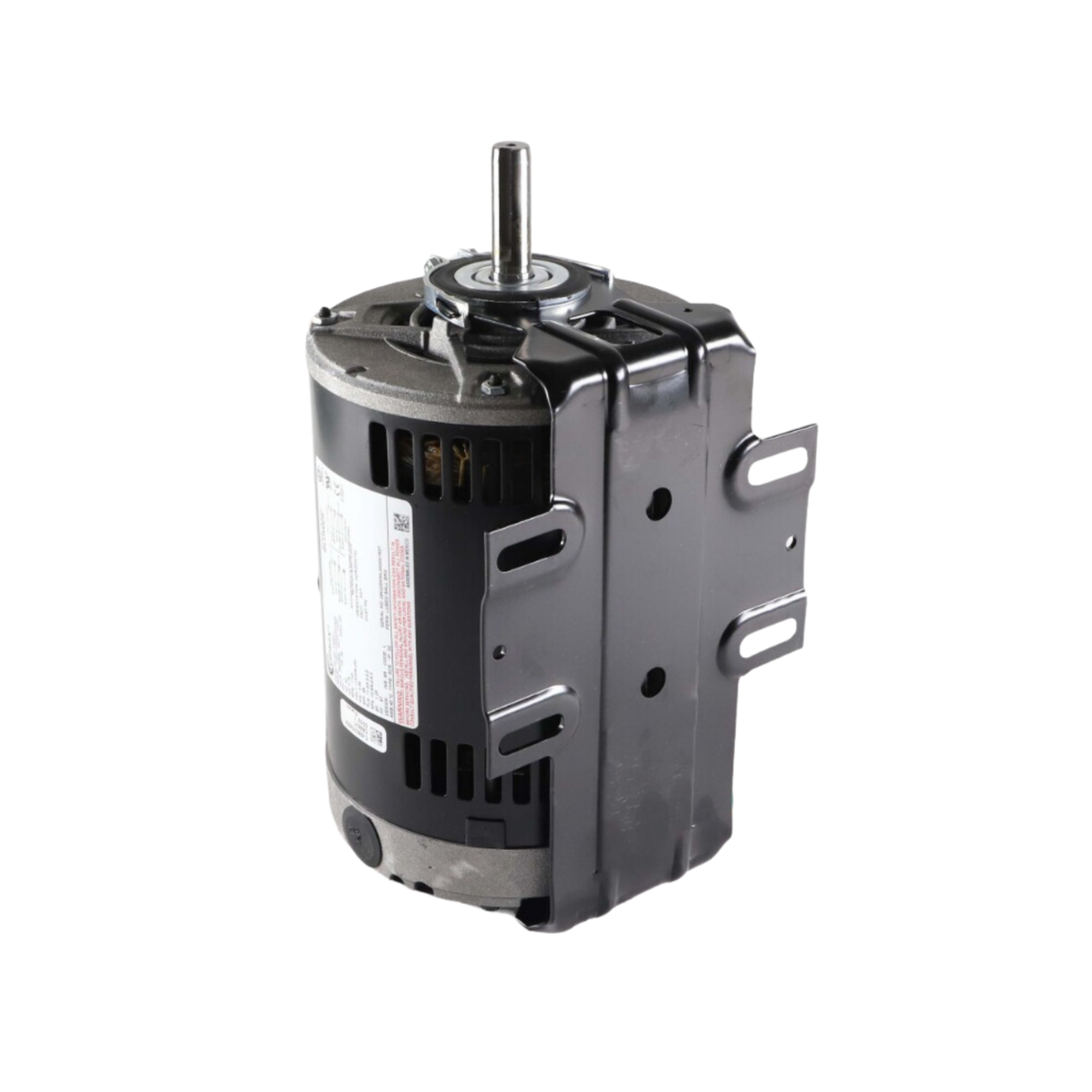

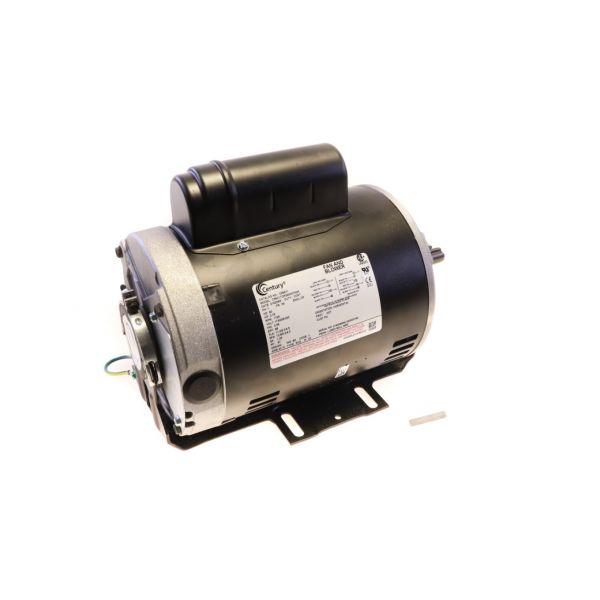

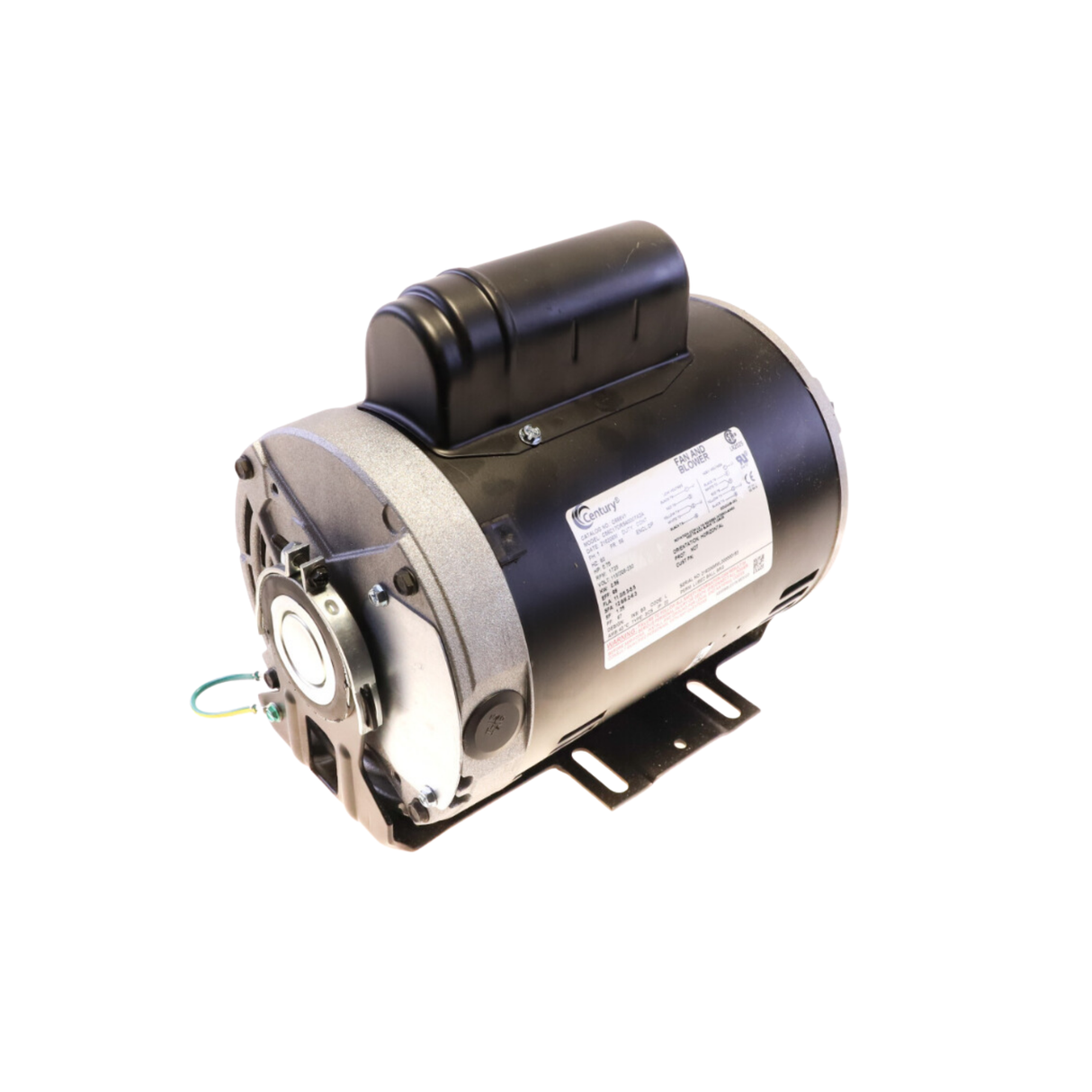

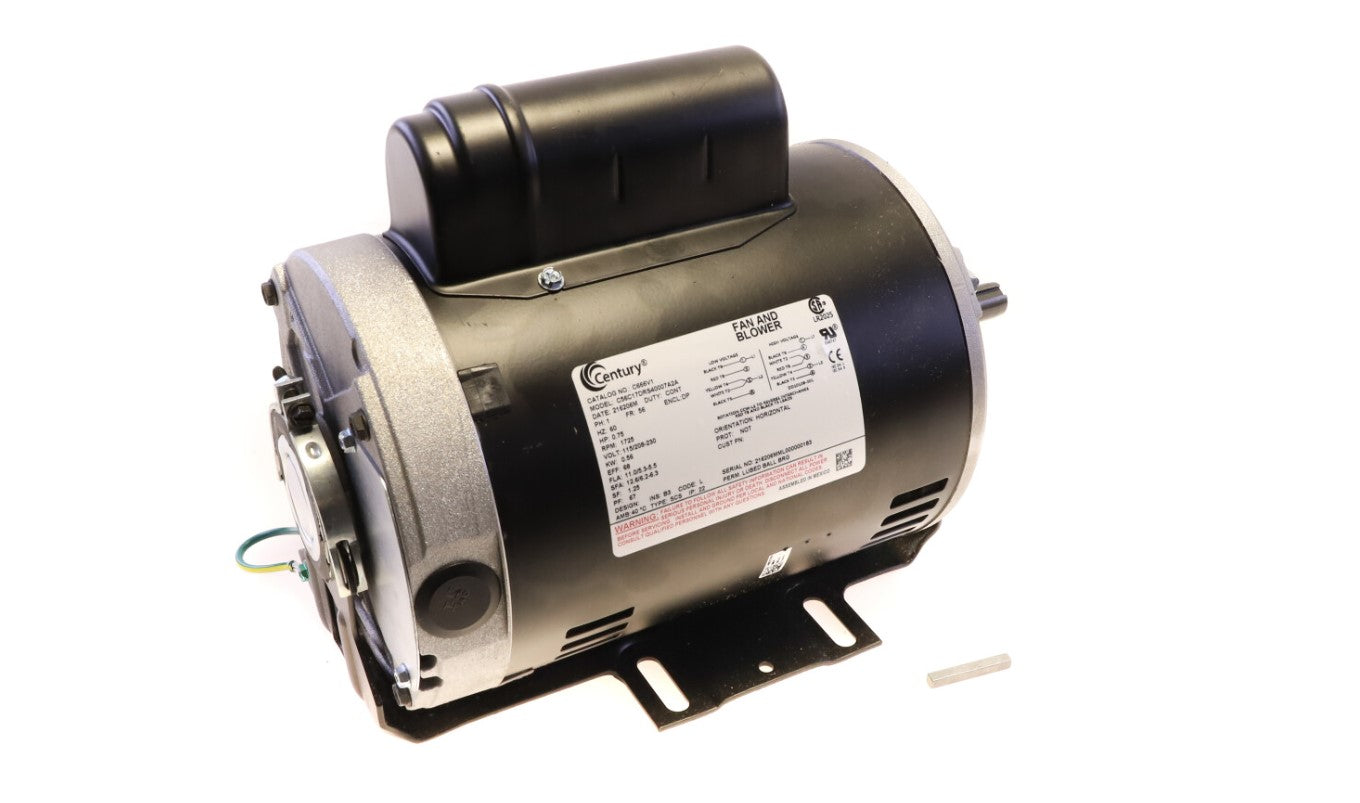

Regal Rexnord C666 Century Fan and Blower Motor 3/4 HP 1 Ph 60 Hz 208-230/115 V 1800 RPM J56None Frame DP

Product Description

The Regal Rexnord C666 Century Fan and Blower Motor is a 3/4 HP, 1 Ph, 60 Hz motor operating at 208-230/115 V and 1800 RPM with a J56None Frame and DP enclosure. An automatic reset thermal protector prevents overheating. It features a patented MAXGuard insulation system and permanently lubricated, double-sealed bearings.

• Automatic reset thermal protector prevents overheating.
• Patented MAXGuard insulation system offers superior protection for use with a variable frequency drive.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.

Product Highlights

This motor is designed for fan and blower applications, offering reliable performance and extended operational life.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: C666
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 3/4 Hp
• Output KW: 0.56 kW
• Voltage: 208-230/115 V
• Speed: 1725 rpm
• Service Factor: 1.25
• Frame: J56None
• Enclosure: Drip Proof
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 5.4-5.5/11.0 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible Clockwise
• Mounting: Cushion Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Keyed
• Overall Length: 11.13 in
• Frame Length: 5.13 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.97 in
• Manufacturer: Regal Rexnord - Century Motors
• Manufacturer Part Number: C666
• Product Type: Permanent Split Capacitor Motor
