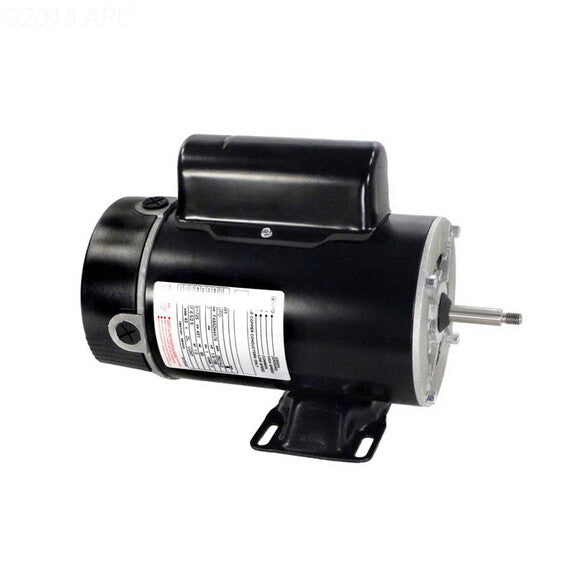

Regal Rexnord bn34v1 1.5 Hp Dual-speed Pool Motor 48Y

Product Description

The REGAL REXNORD bn34v1 is a dual-speed induction motor rated at 1.5 HP and designed for pool and spa pump applications. It operates on 230 volts with two distinct speed settings: 1750 RPM for low-speed circulation and 3450 RPM for high-speed filtration or cleaning cycles. Full-load amperage draws are 8.0 amps at high speed and 2.6 amps at low speed, reflecting the energy savings possible during extended low-speed operation. The 48Y frame configuration is the standard mounting style for residential pool pump motors. A 1.00 service factor indicates the motor is rated to run at its nameplate HP without thermal reserve margin. Licensed pool service technicians and HVAC-trained motor replacement specialists are the typical installers of this unit.

This motor fits residential pool and spa systems where a two-speed motor is required to meet variable-flow demand or local energy codes mandating low-speed circulation modes. Two-speed pool motors are commonly specified in retrofits replacing single-speed units to reduce operating costs during overnight filtration cycles. The 48Y frame and 230-volt rating make it compatible with a wide range of residential inground and above-ground pool pump housings designed around the 48Y standard. No specific compatible pump model numbers were provided in the product data.

Key Features

• Dual-speed operation at 1750 RPM and 3450 RPM for flexible flow control
• 1.5 HP output on a 230-volt single-phase supply
• Low-speed draw of 2.6 amps supports energy-efficient overnight filtration
• 48Y frame for direct fit into standard residential pool pump housings
• 1.00 service factor rated at nameplate load

Compatibility

Designed as an OEM-style replacement motor for residential pool and spa pump assemblies built around the 48Y frame standard and requiring a 230-volt dual-speed motor.

Installation Notes

Installation should be performed by a licensed pool technician or qualified electrician familiar with NEC requirements for pool and spa equipment. Disconnect and lock out power at the breaker before removing the existing motor or accessing any wiring. Two-speed motors require a compatible two-speed timer or controller wired to the correct speed terminals. Verify pump shaft rotation direction and coupling fit before restoring power.

Technical Specifications

• Horsepower: 1.5 HP
• Voltage: 230 volts
• Speeds: 2
• RPM (Low / High): 1750 / 3450
• Amperage (High / Low Speed): 8.0 amps / 2.6 amps
• Service Factor: 1.00
• Frame: 48Y

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: bn34v1
