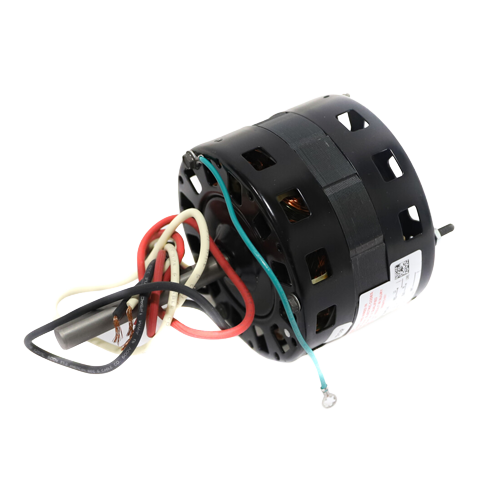

Regal Rexnord BL6424 Century Fan and Blower Motor 1/8,1/11 HP 115 V 1050 RPM

Product Description

The Regal Rexnord BL6424 Century Fan and Blower Motor is designed for furnace blowers, attic ventilators, air handlers, and fan coil motor applications. This motor operates at 115 V and delivers 1/8,1/11 HP at 1050 RPM. It is thermally protected with open air over enclosure and class B insulation, suitable for 40°C ambient environments.

• Designed for furnace blowers, attic ventilators, air handlers, and fan coil motor applications
• Features a shaded pole design and sleeve bearing construction
• Includes extended studs lead end mounting and a 1/2" diameter shaft with flat

Product Highlights

The Regal Rexnord BL6424 is ideal for HVAC systems requiring continuous duty operation with speed versatility.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: BL6424
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 1/8,1/11 Hp
• Output KW: 0.10 kW
• Voltage: 115 V
• Speed: 1050 rpm
• Service Factor: 1
• Frame: 42Y
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 5.0 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 2
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 6
• Rotation: Counterclockwise Lead End
• Mounting: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Shaft Type: Flat
• Overall Length: 7.67 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.1 in
• Speeds: 2
• Bearing Type: Sleeve
• Design: Shaded pole
• HP Options: 1/8 HP and 1/11 HP
• Cooling: Air over
• Motor Diameter: 5″
