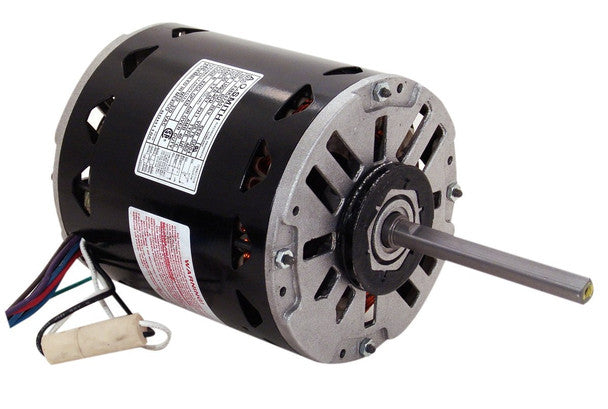

REGAL REXNORD BDH1106 Century Motors - Permanent Split Capacitor Motor

Product Description

The REGAL REXNORD BDH1106 is a single-phase permanent split capacitor motor. This model operates at 460 Vac and delivers one horsepower, making it suitable for various applications. It offers three selectable speeds, including a top speed of 1100 RPM, and draws 3.2 Amps. The motor is constructed with a 48Y Nema frame size and utilizes ball bearings for support. Its reversible rotation feature increases adaptability for different equipment configurations. The design includes an open air enclosure and a resilient base for mounting.

• Operates at 460 Vac, providing one horsepower for compatible applications.
• Offers three-speed functionality, with a maximum speed of 1100 RPM.
• Features reversible rotation for increased flexibility in usage.

Product Highlights

This motor is ideal for applications requiring multiple speeds and reversible operation.

Product Information

Standard Information

• Motor Type: Permanent Split Capacitor
• Phase: Single Phase

Technical Specifications

• Horsepower: 1 hp
• Voltage: 460 Vac
• RPM: 1100 RPM
• Speed: 3 Speed
• Amps: 3.2 Amps
• Frame Size: 48Y Nema Frame Size
• Enclosure: Open Air
• Bearing Type: Ball Bearing
• Mounting: Resilient
• Shaft Size: 1/2 x 6 1/2
• Rotation: Reversible Rotation
