REGAL REXNORD A978 Motor 1/20 HP

Product Description

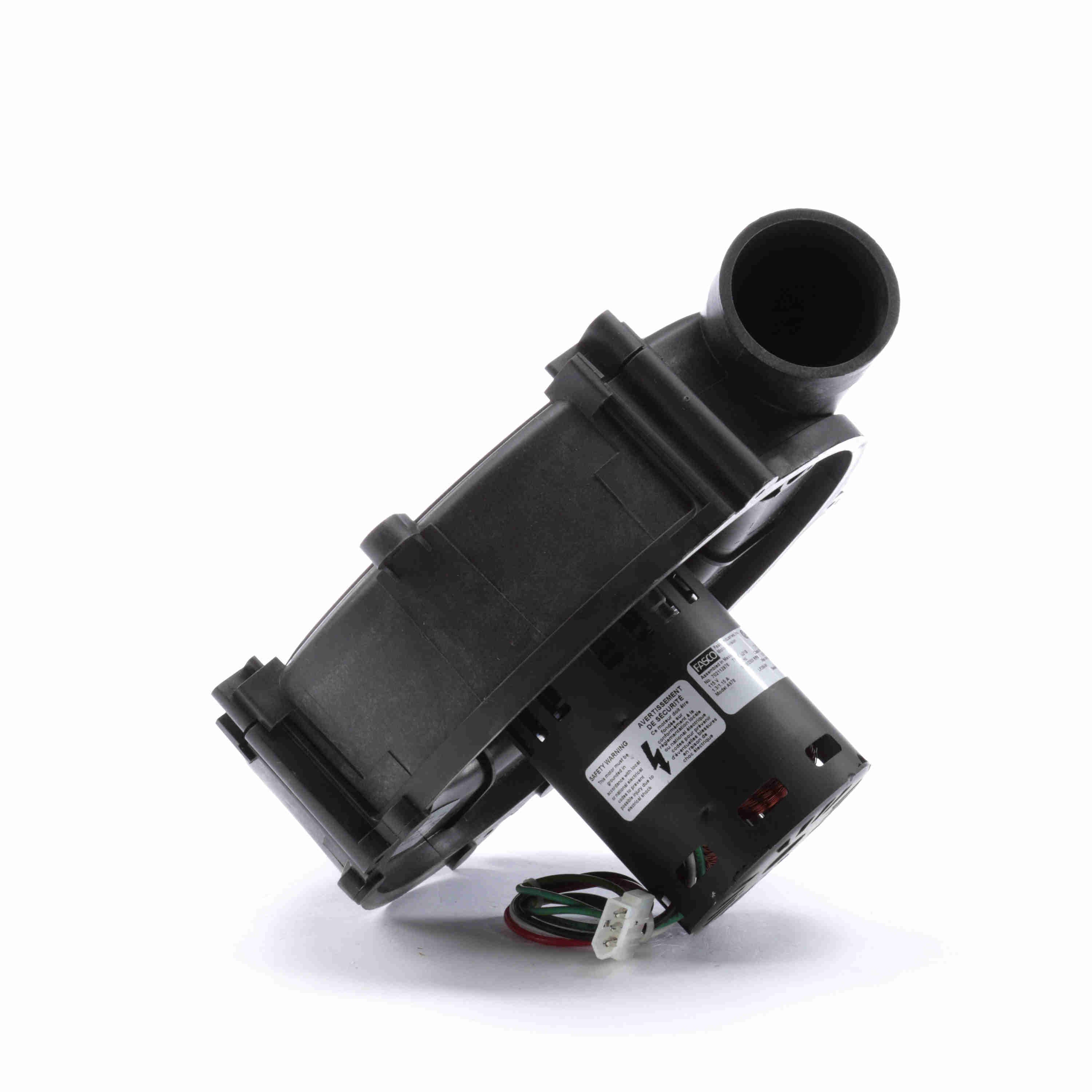

The REGAL REXNORD A978 is an OEM replacement motor made for various tasks. It serves as a draft inducer blower or a general-purpose motor. This motor has a shaded pole design and comes with thermal protection to ensure safety. It is suitable for horizontal mounting and can feature either sleeve or ball bearings based on the specific needs of the application.

• Functions as a draft inducer blower or general-purpose motor.
• Features shaded pole design and thermal protection.
• Designed for horizontal mounting with optional sleeve or ball bearings.

Product Highlights

This motor operates efficiently under different conditions and is easy to install. It is perfect for electrical applications that require durable and reliable performance.

Product Information

Standard Information

• Brand: REGAL REXNORD
• MPN: A978

Technical Specifications

• Phase: 1
• Output HP: 1/20 HP
• Output KW: 0.04 kW
• Input Voltage: 115 V
• Speed: 1050 rpm
• Service Factor: 1
• Frame: 42
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.7 A
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 2
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 6
• Rotation: Clockwise Shaft End
• Mounting Type: Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 7.25 inches
• Frame Length: 3.67 inches
• Shaft Diameter: 0.375 inches
• Shaft Extension: 3 inches
• Motor Type: Shaded Pole
• Speed 2: 3000/2300 rpm
• Current 2: 1.30/1.50 A
• UL Certification: Yes
• Blower Outlet Shape: Round
• Motor Enclosure: Open
• Blower Outlet Flange: No
• Bearing Type: Ball
