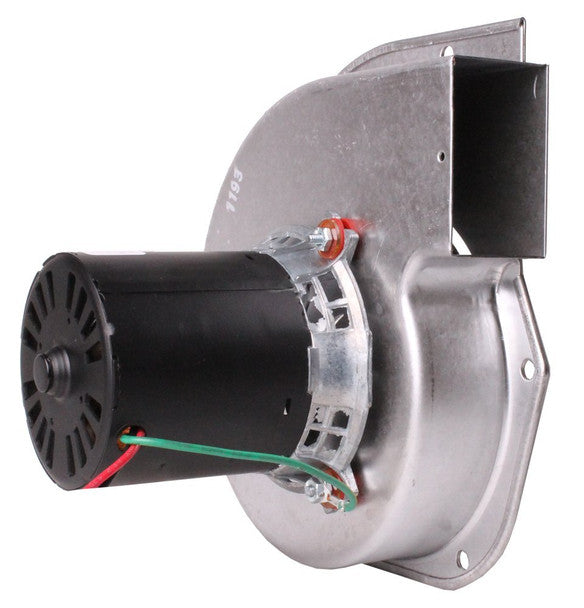

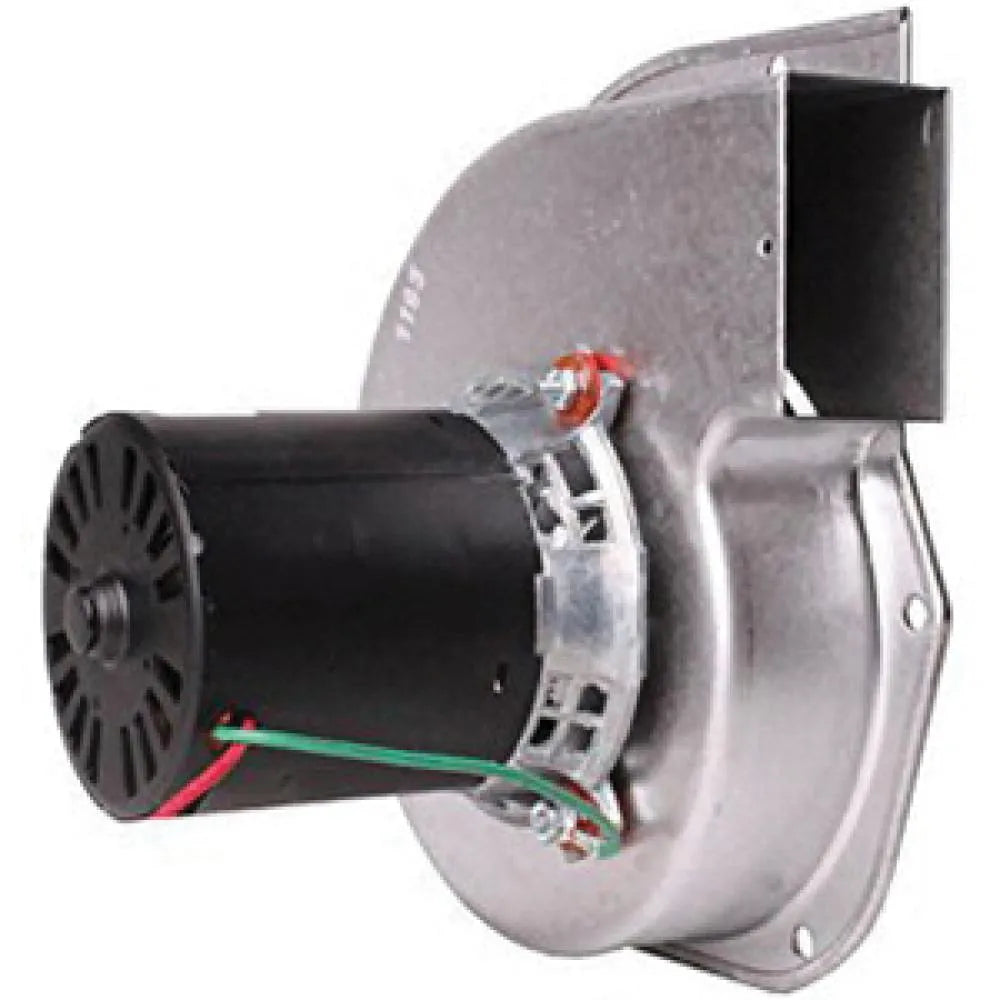

REGAL REXNORD A269 - Inducer Motor - 1/35 Horsepower

Product Description

The REGAL REXNORD A269 is an inducer motor designed for HVAC applications. This motor operates with a power supply of two hundred eight to two hundred thirty VAC. It runs at three thousand RPM and has a power output of one thirty-fifth horsepower.

• Single-phase motor for efficiency
• Ball bearing for smooth operation
• Compatible with 50/60 Hz frequency

Product Highlights

The A269 inducer motor features an open enclosure and rotates counter-clockwise. It has Class B insulation rated for maximum temperatures of forty degrees Celsius. This motor has an amperage of zero point fifty-eight to zero point six amperes.

Product Information

Standard Information

• Item Number: A269
• Brand: Regal Rexnord - Fasco

Technical Specifications

• Voltage: 208 - 230 VAC
• Amperage: 0.58/0.6 A
• Horsepower: 1/35 hp
• RPM: 3000 rpm
• Phase: 1 ph
• Frequency: 50/60 Hz
• Enclosure: Open Motor Enclosure
• Rotation: Counter-Clockwise
• Speed: 1 Speed
• Bearing: Ball Bearing
• Insulation Class: B
• Temperature: 40 deg C
• Motor Type: Inducer Motor
• Condition: New
• Availability: Usually ships within one business day
