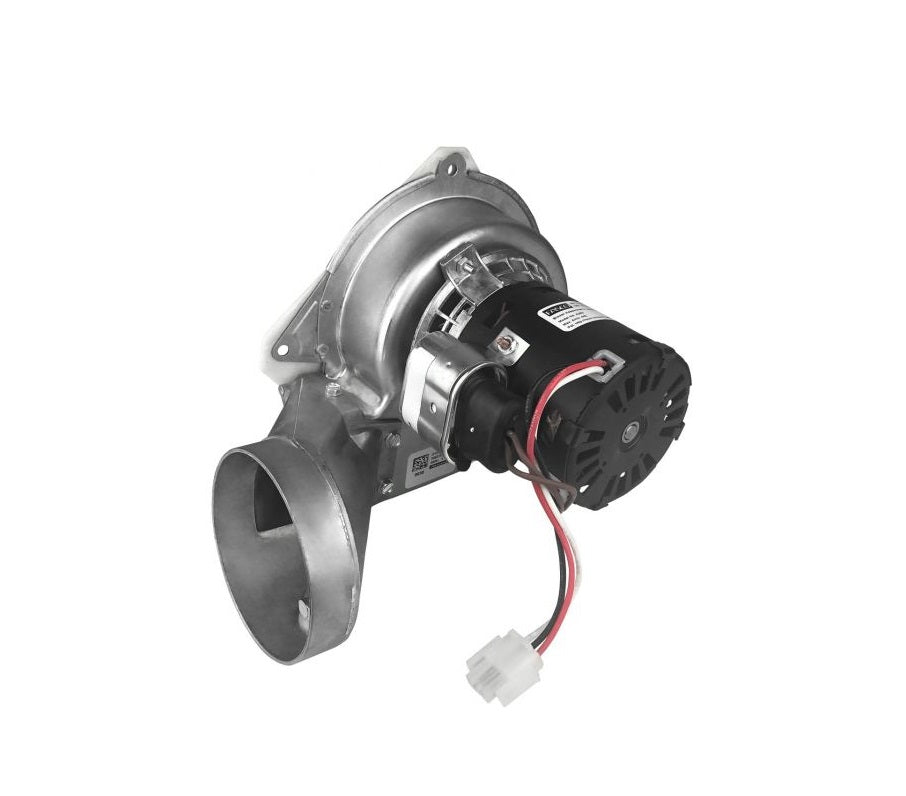

Regal Rexnord A253 Round Outlet Permanent Split Capacitor Draft Inducer Blower 120 Volts

Product Description

The Regal Rexnord A253 is a round outlet permanent split capacitor draft inducer blower with a voltage of 120 volts. This blower features a permanent split capacitor motor, providing reliable operation in various applications. The design includes impedance protection and an open air enclosure, ensuring efficient airflow.

• OEM Direct Replacement - Draft Inducer Blower
• Three point three inches diameter
• Permanent split capacitor operation with a required capacitor of four microfarads at 370 volts (supplied with the blower)

Product Highlights

The blowers are suitable for use in heating and cooling systems, ensuring optimal performance with their reliable design and technical specifications.

Product Information

Standard Information

• Voltage: 120 V
• Motor Type: Permanent Split Capacitor

Technical Specifications

• Thermal Protection: Impedance
• Speed: 3300/2200 rpm
• Current: 0.24/0.13 A
• Number of Speeds: 2
• Frequency: 60 Hz
• Phase: 1
• Ambient Temperature: 40 degrees Celsius
• UL Listed: Yes
• Insulation Class: B
• Blower Outlet Shape: Round
• Motor Enclosure: Open
• Blower Outlet Flange: No
• Bearing Type: Ball
