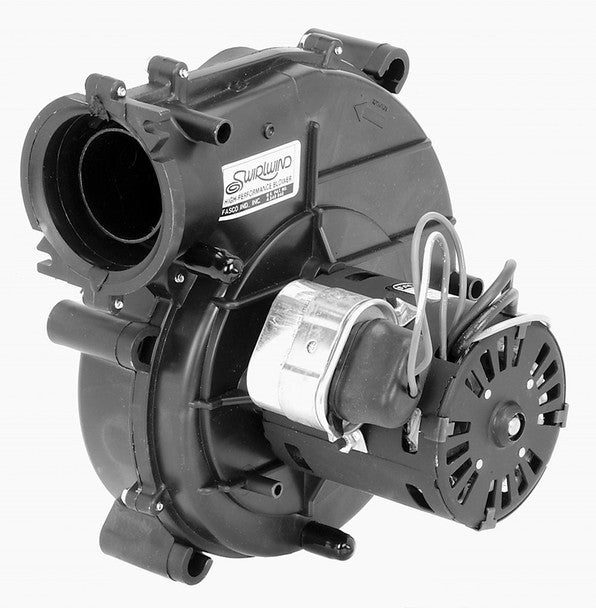

Regal Rexnord A227 Draft Inducer Blower Motor

Product Description

The Regal Rexnord Fasco A227 is a draft inducer blower motor designed as a direct OEM replacement. This motor uses a permanent split capacitor motor type and offers important features such as thermal protection and an open air over enclosure. It includes eight leads with socket terminals and operates on one hundred fifteen volts, sixty hertz, and a speed of three thousand four hundred fifty RPM.

• OEM direct replacement draft inducer blower motor.
• Permanent split capacitor motor type with sleeve bearing.
• Equipped with thermal protection and Class B insulation.

Product Highlights

This blower motor is suitable for various applications, specifically designed for HVAC systems requiring reliable airflow.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: A227

Technical Specifications

• Voltage: 115 V
• Motor Type: Permanent Split Capacitor
• Thermal Protection: Thermally Protected
• Speed: 3450 RPM
• Current: 0.7 A
• Frequency: 60 Hz
• Phase: 1
• Ambient Temperature: 40 °C
• Insulation Class: B
• Blower Outlet Shape: Round
• Motor Enclosure: Open
• Blower Outlet Flange: Yes
• Bearing Type: Sleeve
• Frame Size: 3.3
• Horsepower: 1/25 HP
• Application: OEM Replacement Specific Purpose Blower
• UL Listed: Yes
• CSA Certified: Yes
