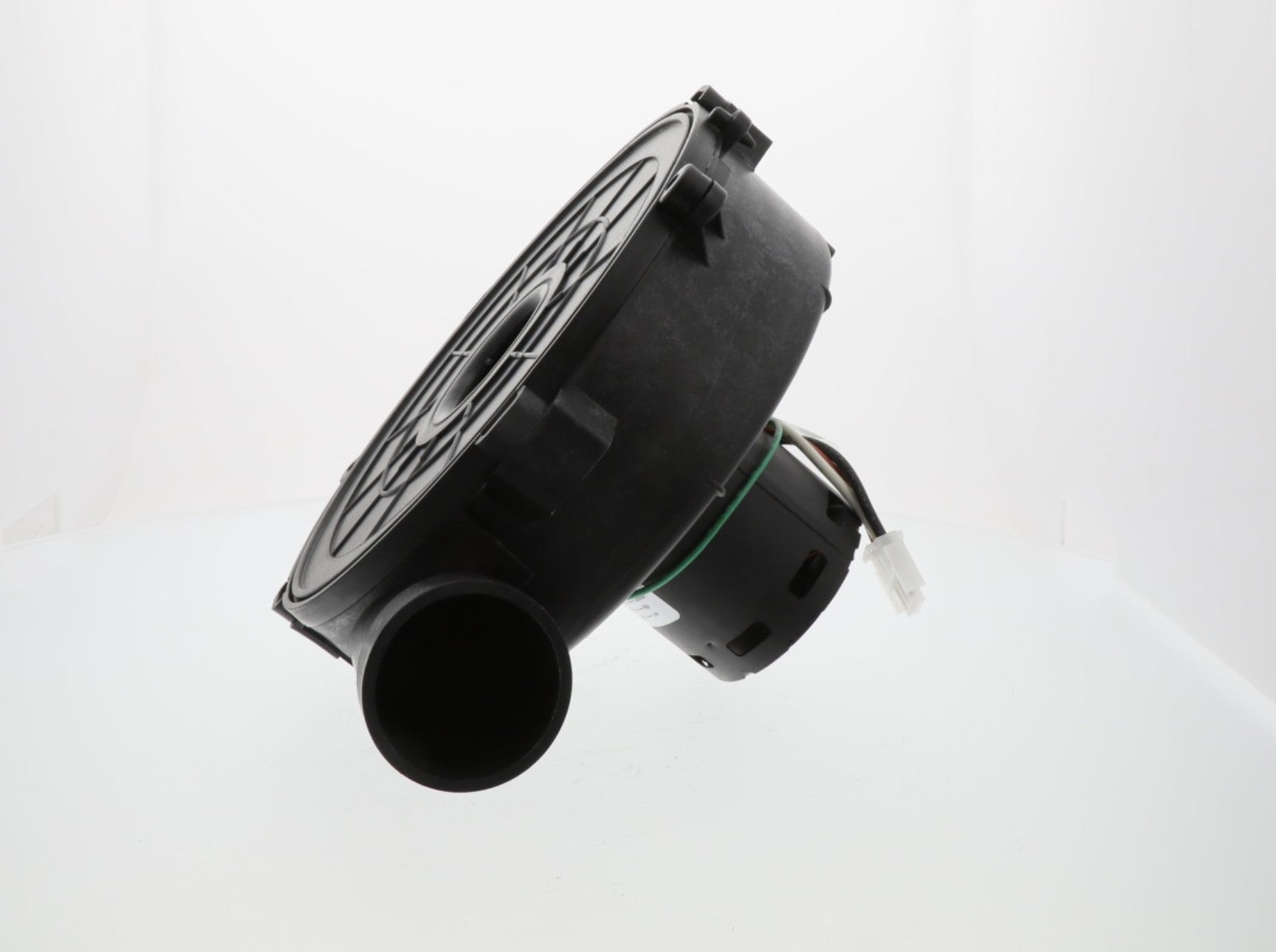

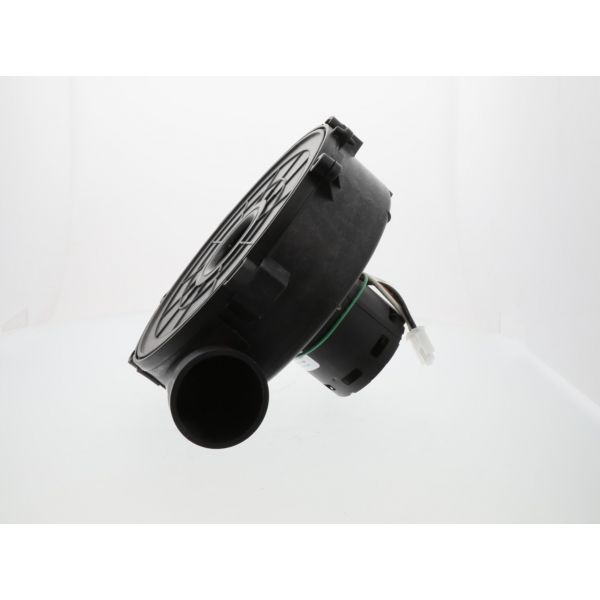

Regal Rexnord A213 Draft Inducer Motor 2-Speed Replacement MPN

Product Description

The Regal Rexnord Fasco A213 is a two-speed draft inducer motor suitable for HVAC ventilation systems. It operates on one hundred fifteen volts and reaches a speed of three thousand two hundred RPM. This motor aids in expelling combustion gases from furnaces and select water heaters.

• Operates at one hundred fifteen volts.
• Equipped with two operating speeds.
• Designed for HVAC ventilation applications.

Product Highlights

This motor provides efficient air movement according to heating demands. It is thermally protected for safety and features class B insulation.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: A213

Technical Specifications

• Type: Draft Inducer
• Motor Type: Shaded Pole
• Voltage: 115 V
• Speed: 3200 RPM
• Number of Speeds: 2
• Current: 2.1 A
• Frequency: 60 Hz
• Phase: 1
• Ambient Temperature: 40 °C
• Thermal Protection: Thermally Protected
• UL Listed: Yes
• Insulation Class: B
• CSA Listed: Yes
• Blower Outlet Shape: Round
• Motor Enclosure: Open
• Blower Outlet Flange: No
• Bearing Type: Ball
