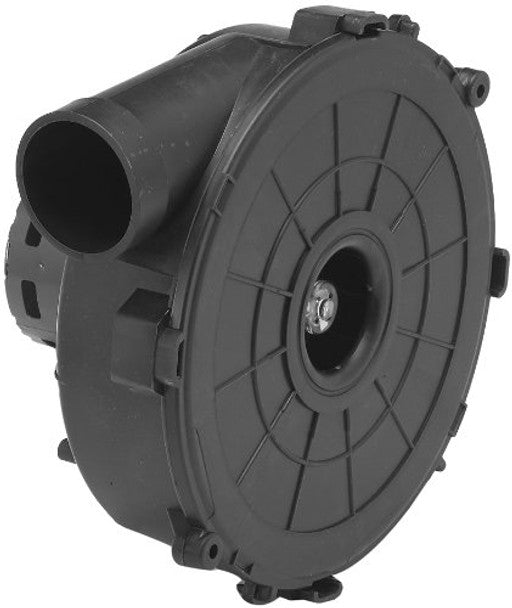

Regal Rexnord A211 Draft Inducer Motor 115V

Product Description

The Regal Rexnord A211 is a reliable draft inducer motor ideal for direct replacement in original equipment manufacturing. This motor operates at 115 Volts and features a shaded pole design. It offers thermal protection and is built for an open air installation. The unit has Class B insulation, which is effective in environments up to forty degrees Celsius. The motor uses ball bearings for enhanced performance and durability. It is designed with seven leads that include socket terminals for easy connection.

• Suitable for OEM direct replacement
• Thermally protected motor for safety
• Single speed operation at three thousand four hundred RPM

Product Highlights

The A211 draft inducer motor supports various HVAC applications and is crucial for effective air circulation.

Product Information

Standard Information

• MPN: A211
• Country of Origin: Mexico

Technical Specifications

• Voltage: 115 V
• Thermal Protection: Yes
• Speed: 3400 RPM
• Current: 2.35 A
• Frequency: 60 Hz
• Phase: 1
• Ambient Temperature: 40 °C
• UL Listed: Yes
• Insulation Class: B
• CSA Certified: Yes
• Blower Outlet Shape: Round
• Motor Enclosure: Open Fan Cooled
• Blower Outlet Flange: No
• Bearing Type: Ball
