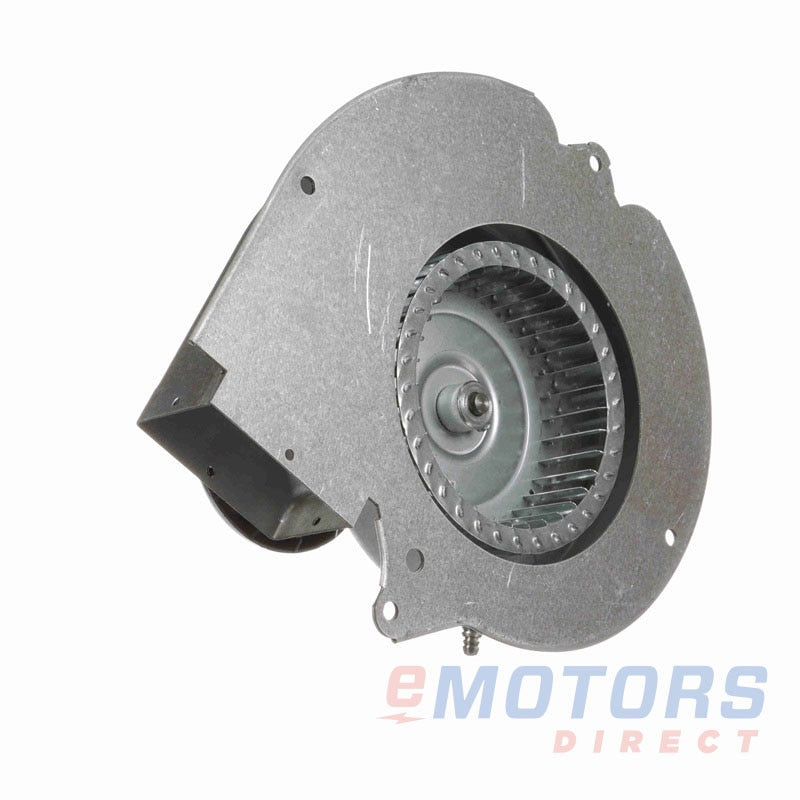

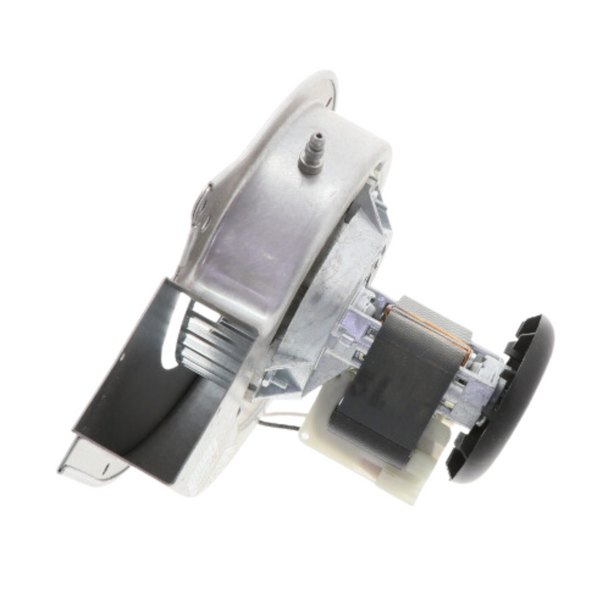

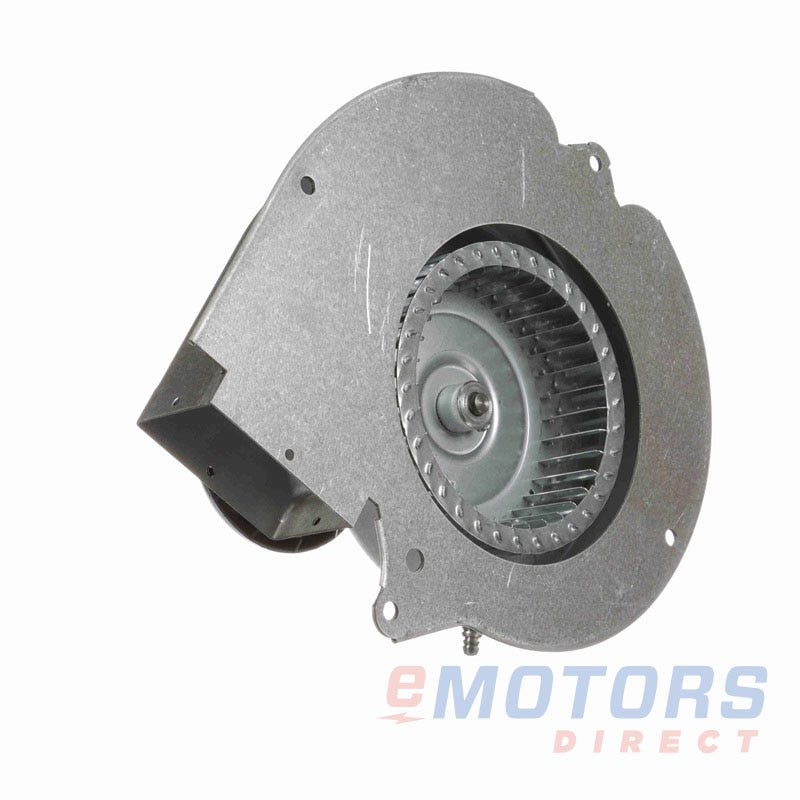

Regal Rexnord A200 - Fasco Inducer Motor

Product Description

The Regal Rexnord A200 is a Fasco inducer motor used for draft induction applications. This motor operates at one hundred fifteen volts and a speed of three thousand RPM. The rated current for this unit is one point two seven amps, and it runs on a single-phase system at a frequency of sixty Hertz. It includes an Open Air Over enclosure and has Class B insulation. Designed for use in temperatures up to forty degrees Celsius, this motor is certified by CSA and UL to ensure safety and reliability.

• Operates at 115V and 3000 RPM for draft induction.
• Features Class B insulation and is approved by CSA & UL.
• Designed for operation in ambient temperatures up to 40°C.

Product Highlights

The design focuses on efficiency in draft induction tasks. Suitable as an OEM replacement blower, it has a rectangular outlet and does not include removable feet or double drilled features.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: A200

Technical Specifications

• Voltage: 115V
• Speed: 3000 RPM
• Rated Motor Current: 1.27 AMP
• Phase: 1
• Frequency: 60 Hz
• Enclosure: OAO
• Approximate Weight: 6.6 lb
• Double Drilled: No
• Insulation Class: B
• Removable Feet: No
• Ambient Temperature: 40°C
• Agency Approvals: CSA & UL
