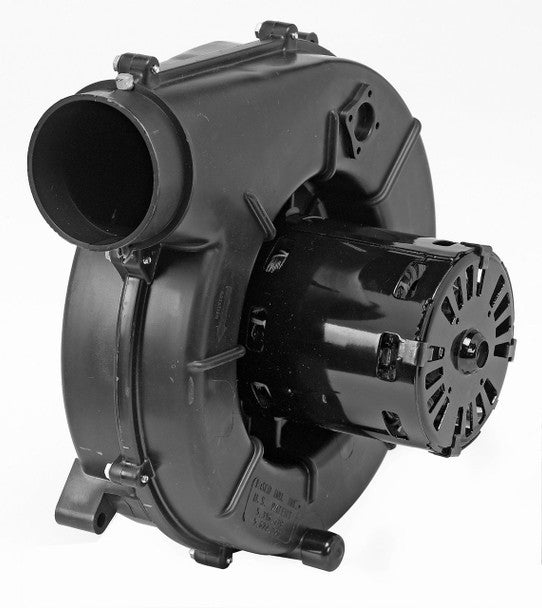

REGAL REXNORD A197 Regal Rexnord Fasco A197 Draft Inducer Blower

Product Description

The Regal Rexnord Fasco A197 is a three-phase draft inducer blower designed for OEM direct replacement. This model features a frame diameter of three point three inches and an open air over motor enclosure for efficient operation.

• Three-phase motor for reliable performance
• Thermally protected with Class B insulation
• Includes five leads with a socket terminal

Product Highlights

This draft inducer blower is thermally protected and suitable for ambient temperatures of up to forty degrees Celsius. It has a simple design that allows for easy installation and replacement in existing setups.

Product Information

Standard Information

• Brand: Fasco
• MPN: A197

Technical Specifications

• Motor Type: Three Phase
• Input Voltage: 33-110 V
• Frequency: 60-180 Hz
• Phase: 3
• Speed: 1500-4700 rpm
• Current: 1 A
• Number of Speeds: 1
• Thermal Protection: Thermally protected
• Ambient Temperature: 40 °C
• Insulation Class: B
• Bearing Type: Ball
• Motor Enclosure: Open
• Blower Outlet Shape: Round
• Blower Outlet Flange: No
• UL: Yes
• CSA: Yes
