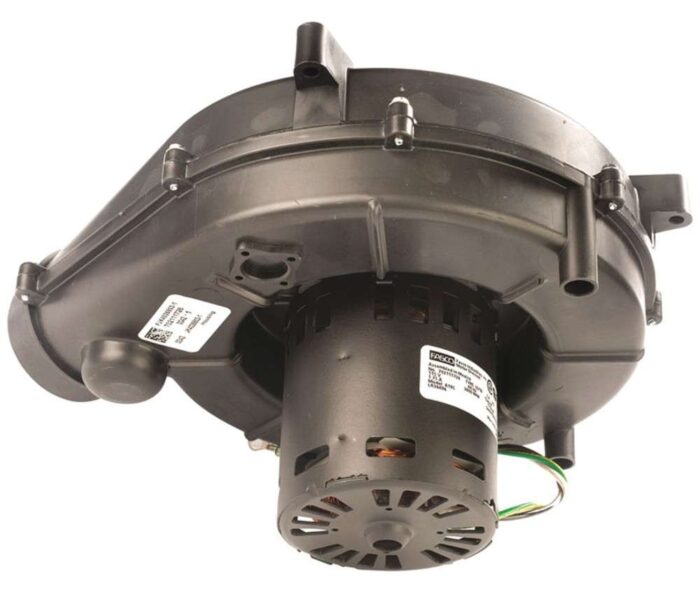

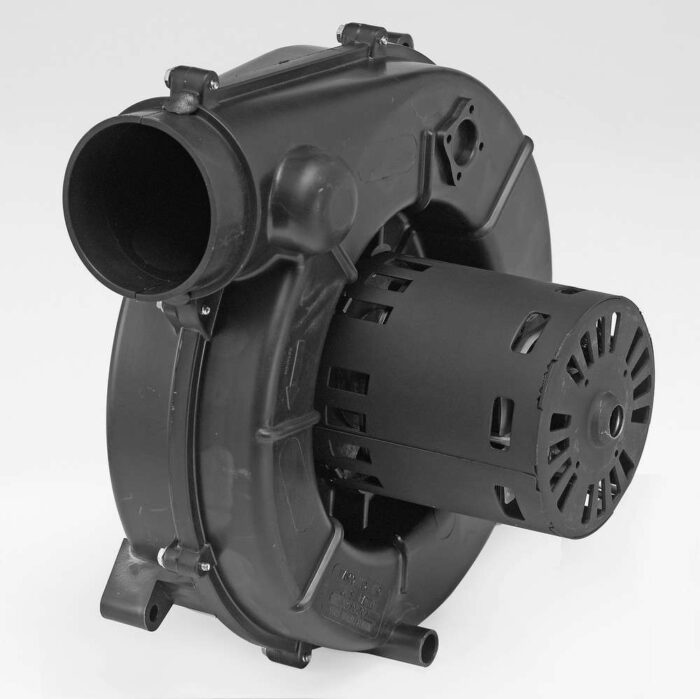

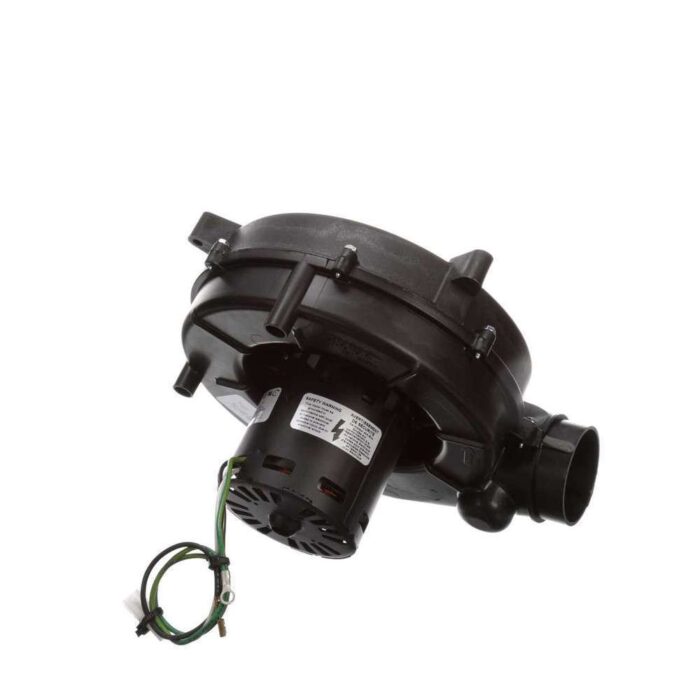

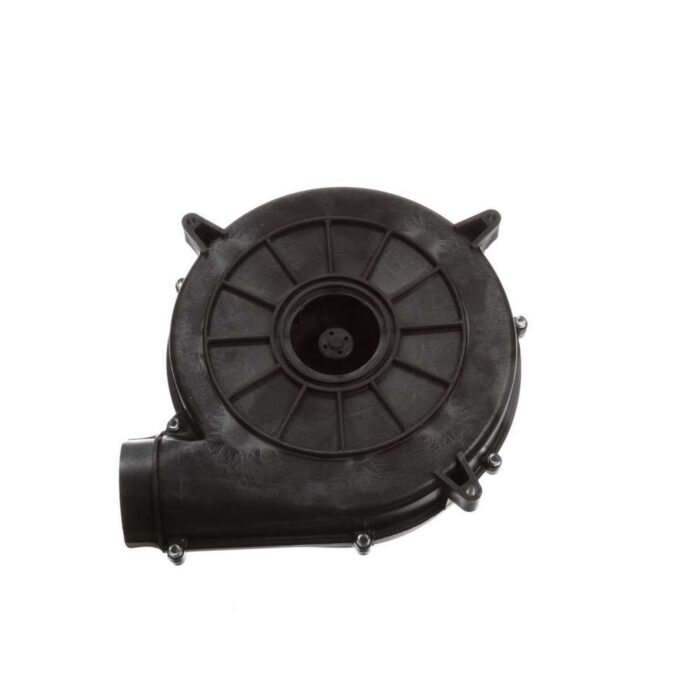

Regal Rexnord A195 Draft Inducer Blower Motor

Product Description

The Regal Rexnord A195 is a draft inducer blower motor suitable for OEM replacement in Trane furnaces. This motor operates at one hundred fifteen volts and features a speed of three thousand four hundred RPM. It has thermal protection and operates with a shaded pole design.

• Operates at one hundred fifteen volts and three thousand four hundred RPM
• Shaded pole motor design for reliable performance
• Includes thermal protection and ball bearings for efficient operation

Product Highlights

The A195 motor is built for durability and efficiency, making it ideal for various heating applications.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: A195

Technical Specifications

• Voltage: 115 V
• Current: 1.75 A
• Speed: 3400 RPM
• Power: 1/16 HP
• Rotation: Clockwise (CW)
• Motor Type: Shaded Pole
• Thermal Protection: Thermally
• Number of Speeds: 1
• Frequency: 60 Hz
• Phase: 1
• Ambient Temperature: 40 °C
• Insulation Class: B
• Bearing Type: Ball
• Motor Enclosure: Open Fan Cooled
• Blower Outlet Shape: Round
• Blower Outlet Flange: No
• UL Listed: Yes
• CSA Certified: Yes
