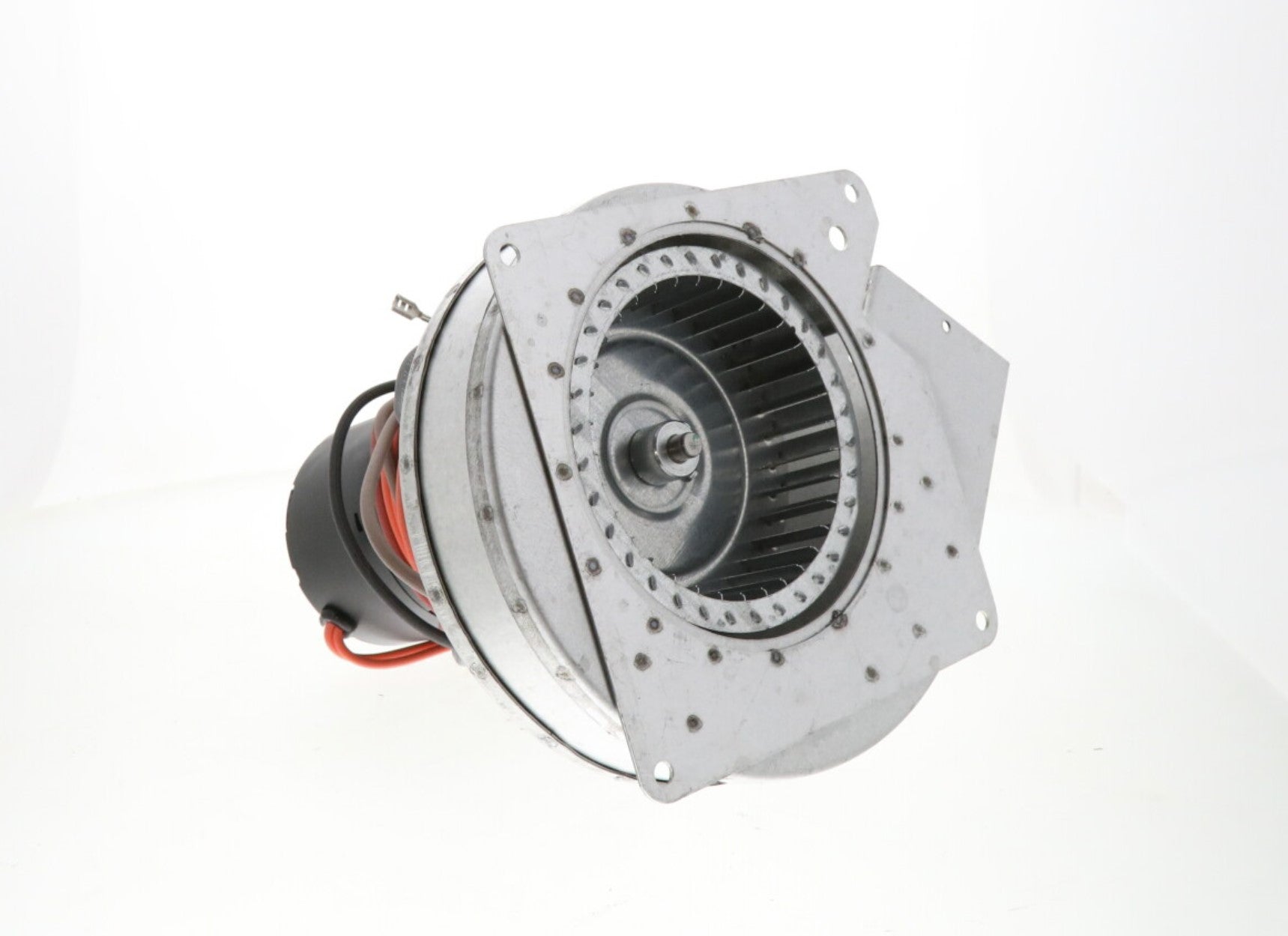

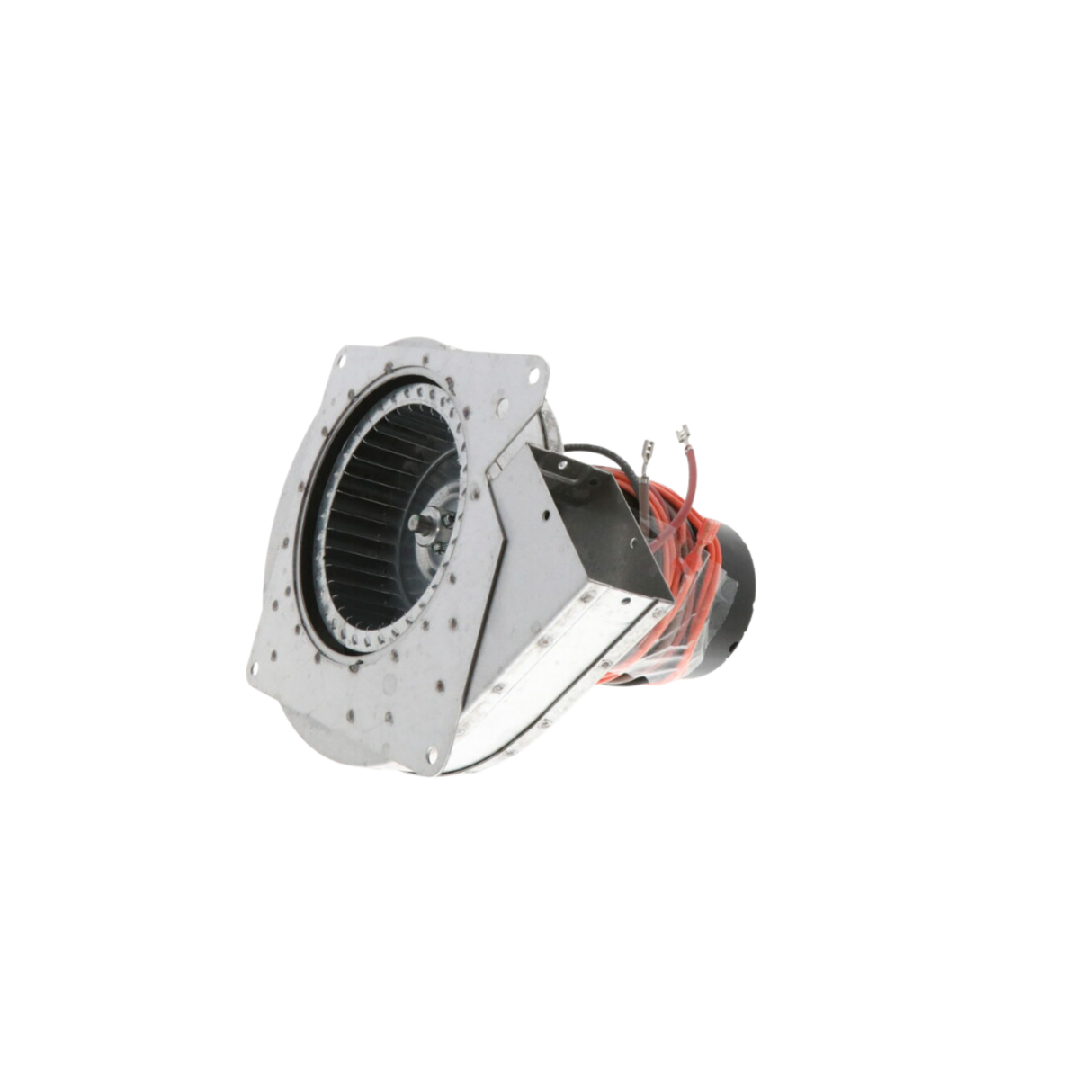

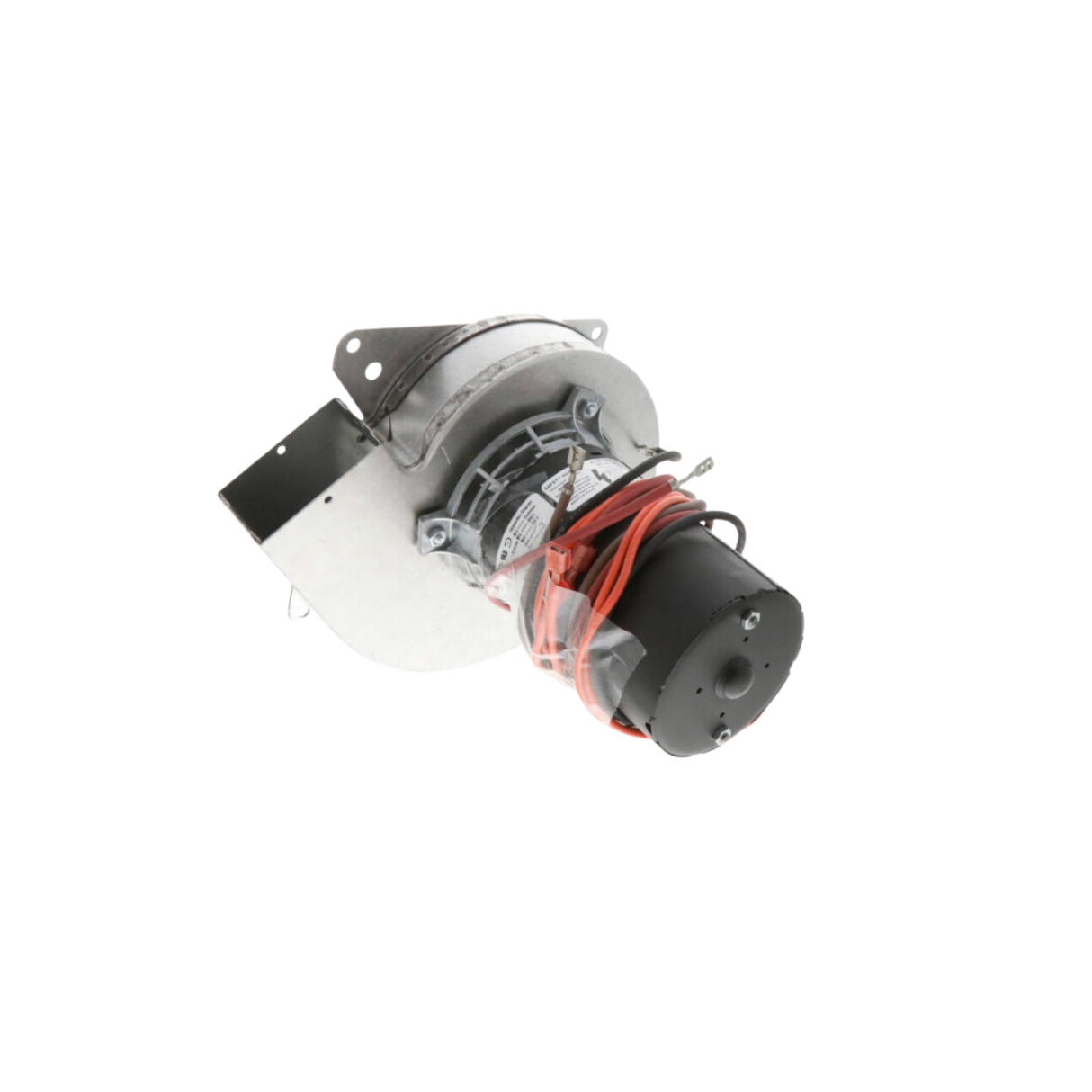

Regal Rexnord A162 Draft Inducer Blower Motor 208-230V

Product Description

The Regal Rexnord Fasco A162 is a draft inducer blower motor suitable for HVAC settings. This motor is a single-speed, shaded pole design that operates on two hundred eight to two hundred thirty volts at sixty hertz. The motor provides thermal protection and includes a sleeve bearing. It efficiently removes combustion gases and ensures proper ventilation.

• Operates at two hundred eight to two hundred thirty volts and achieves three thousand RPM.
• Includes thermal protection for enhanced safety.
• Equipped with a rectangular blower outlet.

Product Highlights

The motor is essential for maintaining air quality in HVAC systems.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: A162

Technical Specifications

• Voltage: 208/230 V
• Frequency: 60 Hz
• Speed: 1
• Rotation Speed: 3000 RPM
• Motor Type: Shaded Pole
• Current: 0.5 A
• Phase: 1
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Insulation Class: B
• Bearing Type: Sleeve
• Motor Enclosure: Open
• Blower Outlet Shape: Rectangle
• Actual Diameter: 3.3 inches
• Dimensions: 12.3 x 11 x 8.85 inches
• Weight: 6.35 lb
• UL: Yes
• CSA: Yes
