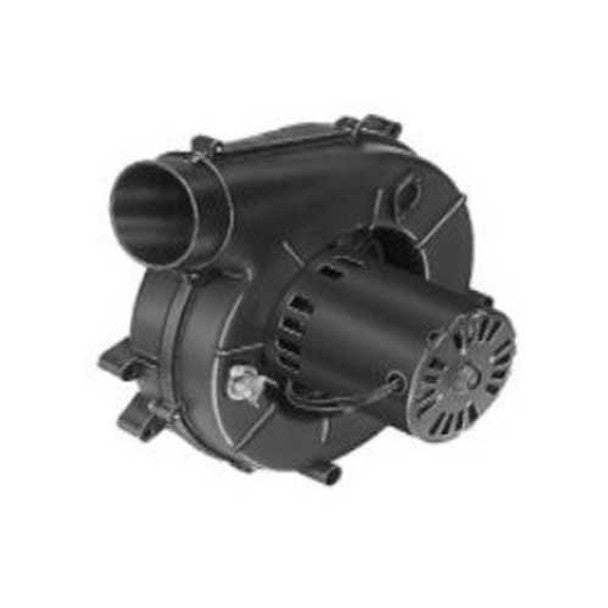

Regal Rexnord A140 Draft Inducer Motor

Product Description

The Regal Rexnord Fasco A140 is a draft inducer motor made for OEM replacement. It has a three point three frame and works as a specific purpose blower. This motor is thermally protected and has Class B insulation, making it suitable for a forty degrees Celsius environment. This motor is designed for open air applications and comes with nineteen leads featuring spade terminals.

• Draft inducer motor built for OEM replacement.
• Shaded pole motor with thermal protection.
• Nineteen leads with spade terminals included.

Product Highlights

This draft inducer motor is ideal for systems needing reliable airflow and efficient operation. It is thermally protected and designed for extended performance.

Product Information

Standard Information

• Country of Origin: Mexico
• UPC: 8.15585E+11

Technical Specifications

• Voltage: 115V
• Frequency: 60 Hz
• Current: 1.4 A
• RPM: 2,800 rpm
• Horsepower: 1/60HP
• Bearing Type: Sleeve
• Frame Size: 3.3 Frame
• Motor Type: Shaded Pole
• Thermal Protection: Thermally Protected
• Number of Speeds: 1
• Phase: 1
• Ambient Temperature: 40 °C
• Insulation Class: B
• Blower Outlet Shape: Round
• Motor Enclosure: Open
• Blower Outlet Flange: No
• UL Certification: Yes
• CSA Certification: Yes
