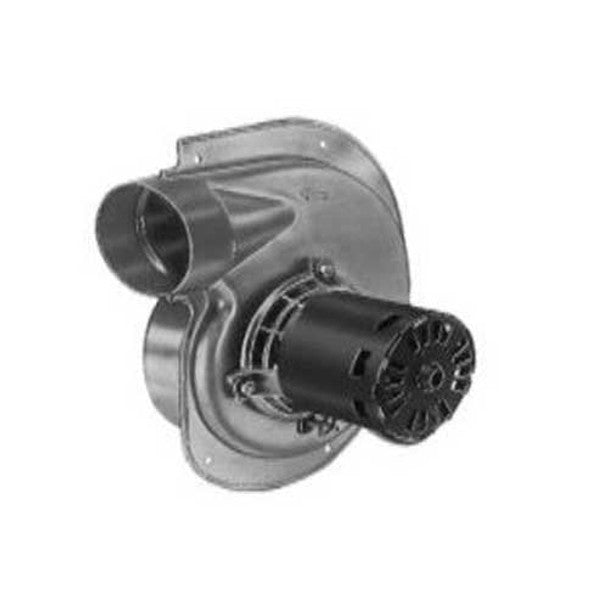

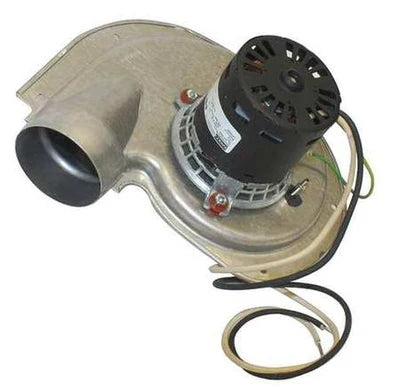

Regal Rexnord A134 Draft Inducer Motor 1/25 HP

Product Description

The Regal Rexnord Fasco A134 is a draft inducer motor that operates at one hundred fifteen volts and three thousand sixty RPM. It provides a power capacity of one twenty-fifth horsepower, making it suitable for various heating and ventilation applications.

• Operates at 115V and 3060 RPM
• Features shaded pole design and thermal protection
• Includes ball bearings and 23 leads with pin terminals

Product Highlights

This motor is commonly used as a direct OEM replacement for draft inducer blowers, ensuring reliable performance in critical systems.

Product Information

Standard Information

• Brand: Regal Rexnord - Fasco
• MPN: A134

Technical Specifications

• Voltage: 115 V
• Power: 1/25 HP
• Speed: 3060 RPM
• Motor Type: Shaded Pole
• Thermal Protection: Thermally Protected
• Current: 1.5 A
• Number of Speeds: 1
• Frequency: 60 Hz
• Phase: 1
• Ambient Temperature: 40 °C
• Insulation Class: B
• Bearing Type: Ball
• Motor Enclosure: Open
• Blower Outlet Shape: Round
• Blower Outlet Flange: No
• UL Certification: Yes
• CSA Certification: Yes
