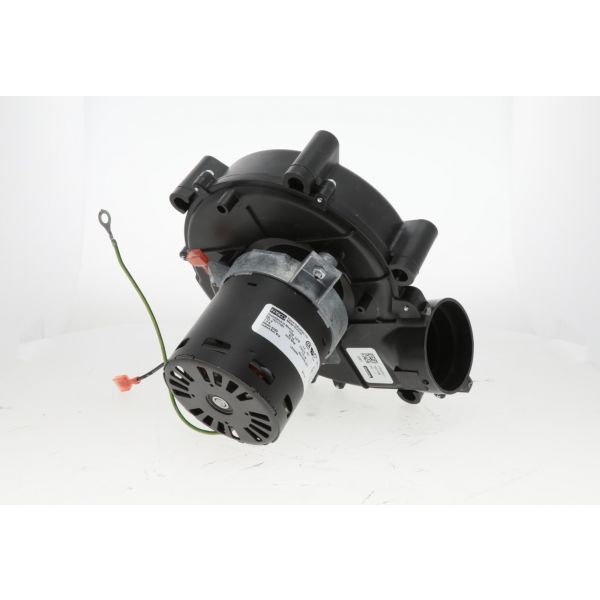

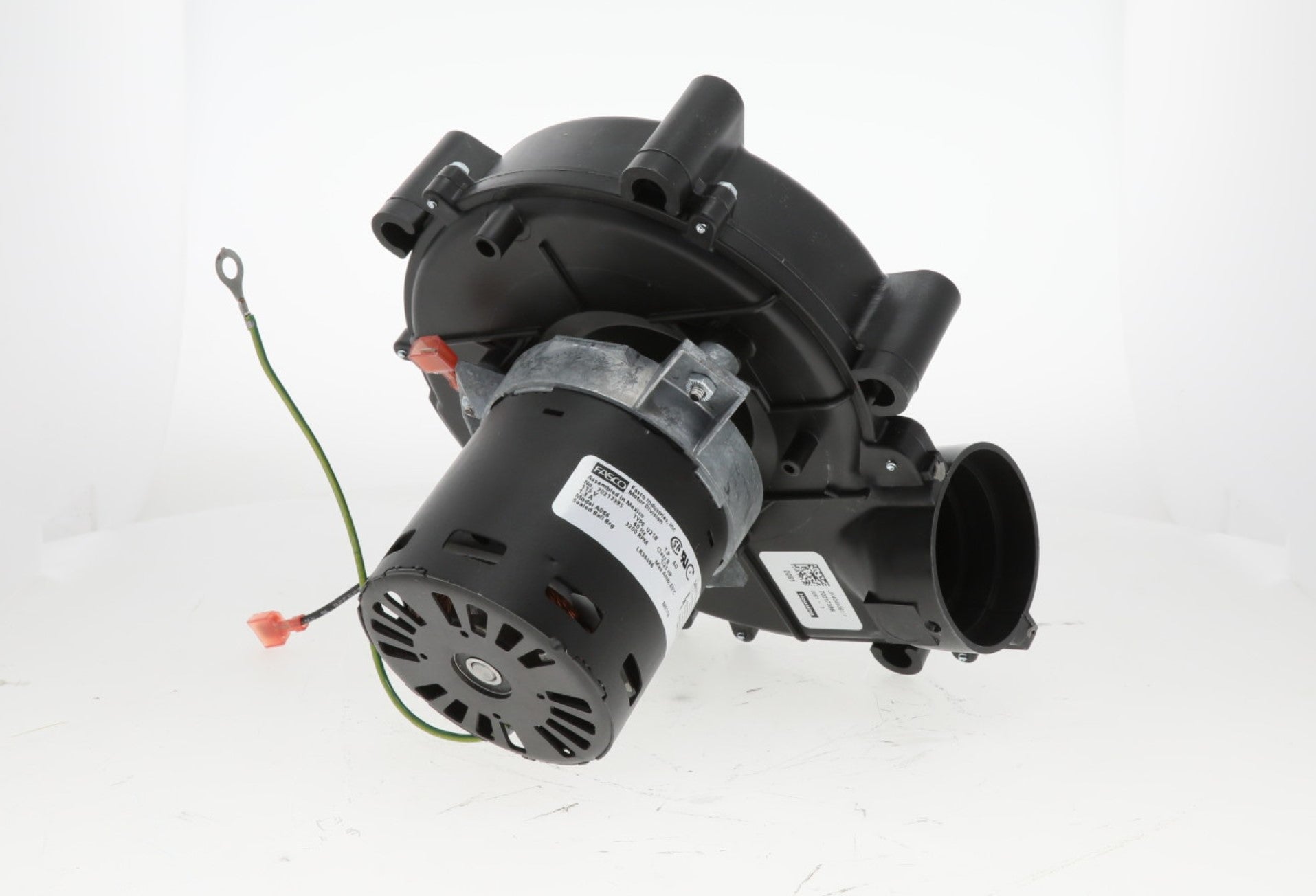

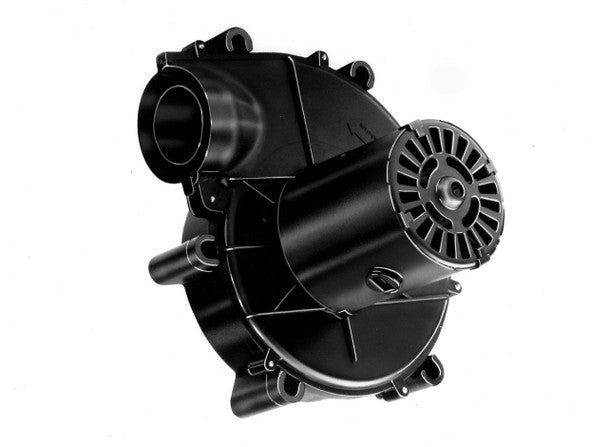

REGAL REXNORD A086 Draft Inducer Motor - 115V 1-Speed

Product Description

The REGAL REXNORD A086 is a draft inducer motor effective for specific blower applications. It operates on 115V and is suitable as an OEM replacement part. This single-speed motor reaches a speed of 3,200 rpm and has an amperage rating of 1.3 amps, making it a reliable choice for various HVAC systems.

• Functions as an OEM replacement part.
• Designed for specific purpose blower applications.
• Operates at 115V, 3,200 rpm, and 1.3 amps.

Product Highlights

The design of this shaded pole motor promotes efficient airflow within HVAC systems. It is built with a sleeve bearing and features a frame size of 3.3. Weighing approximately 5.73 pounds, it is straightforward to install and configure for various applications.

Product Information

Standard Information

• Brand: Regal Rexnord - Fasco
• OEM Part Number: A086

Technical Specifications

• Voltage: 115V
• Speed: 3,200 rpm
• Frequency: 60 Hz
• Amperage: 1.3 amps
• Horsepower: 1/25HP
• Bearing Type: Sleeve Bearing
• Frame Size: 3.3 Frame
• Type: Shaded Pole OEM Replacement Specific Purpose Blower
