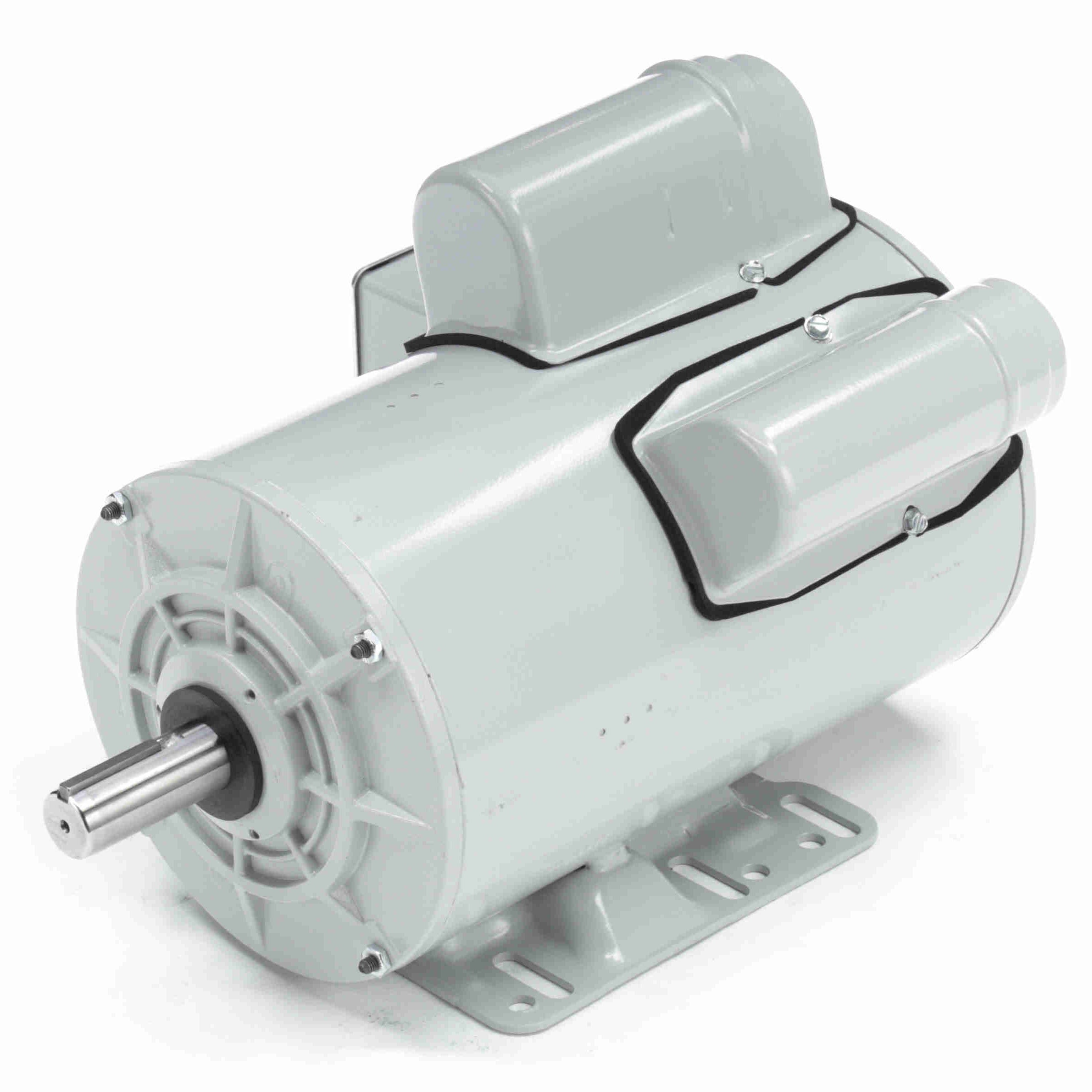

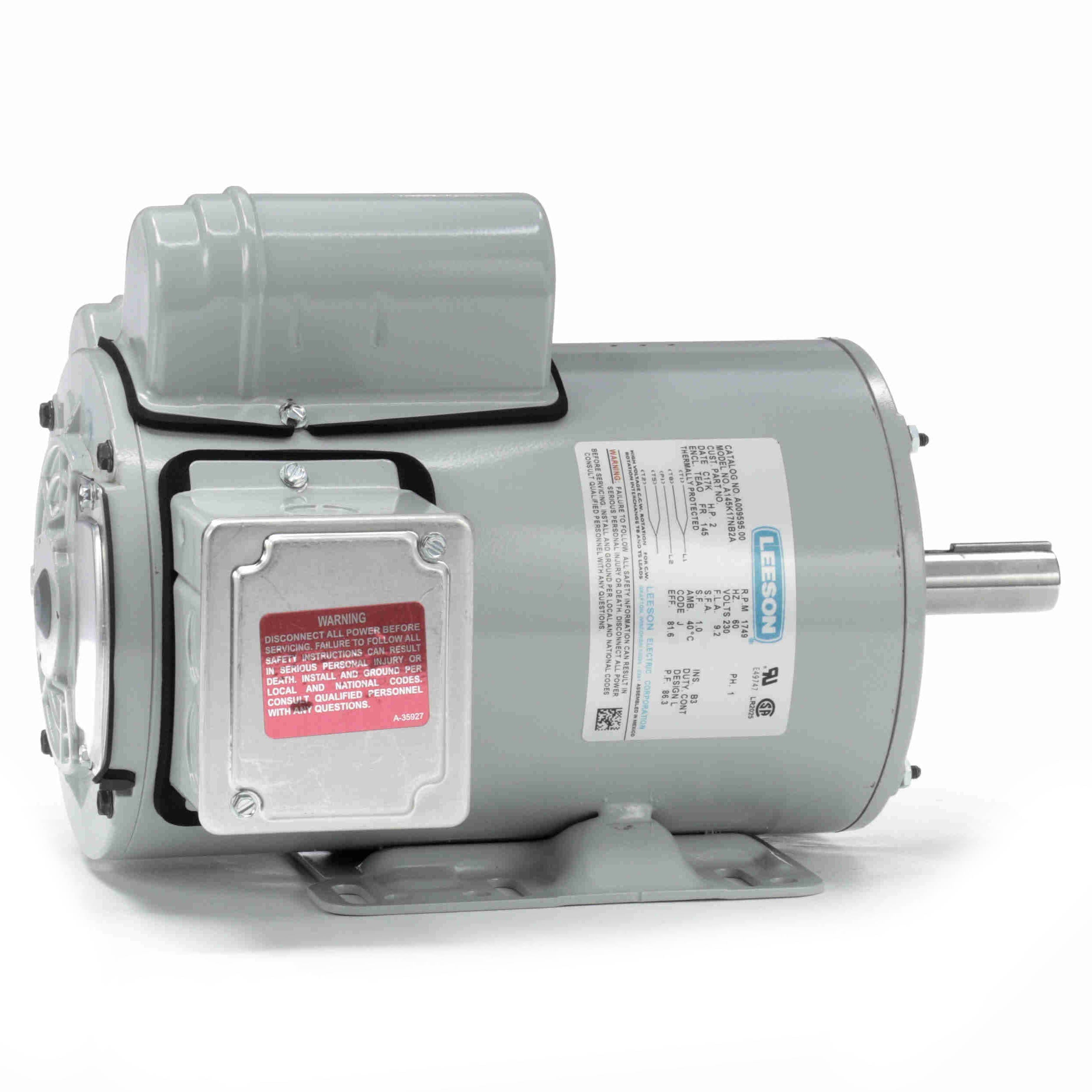

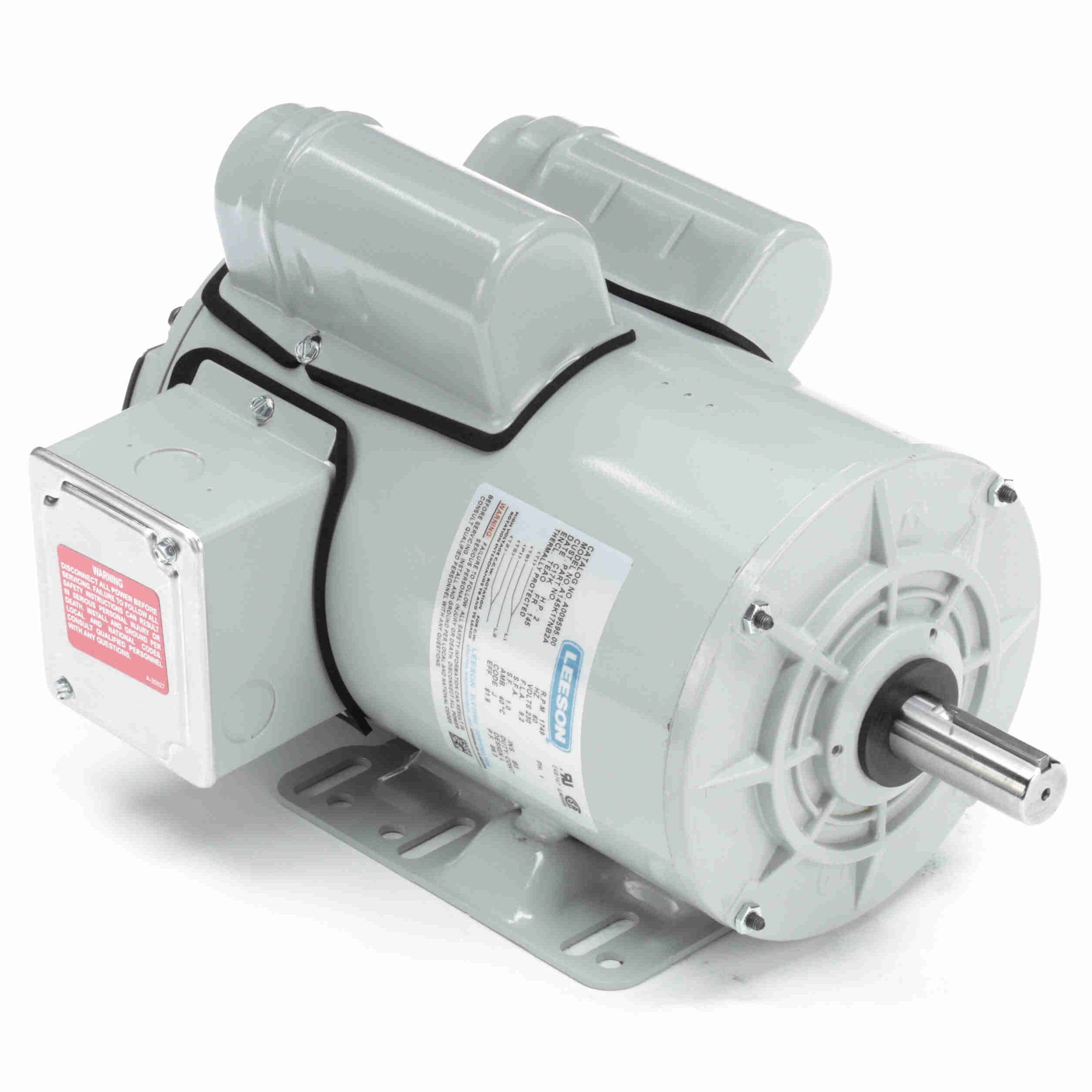

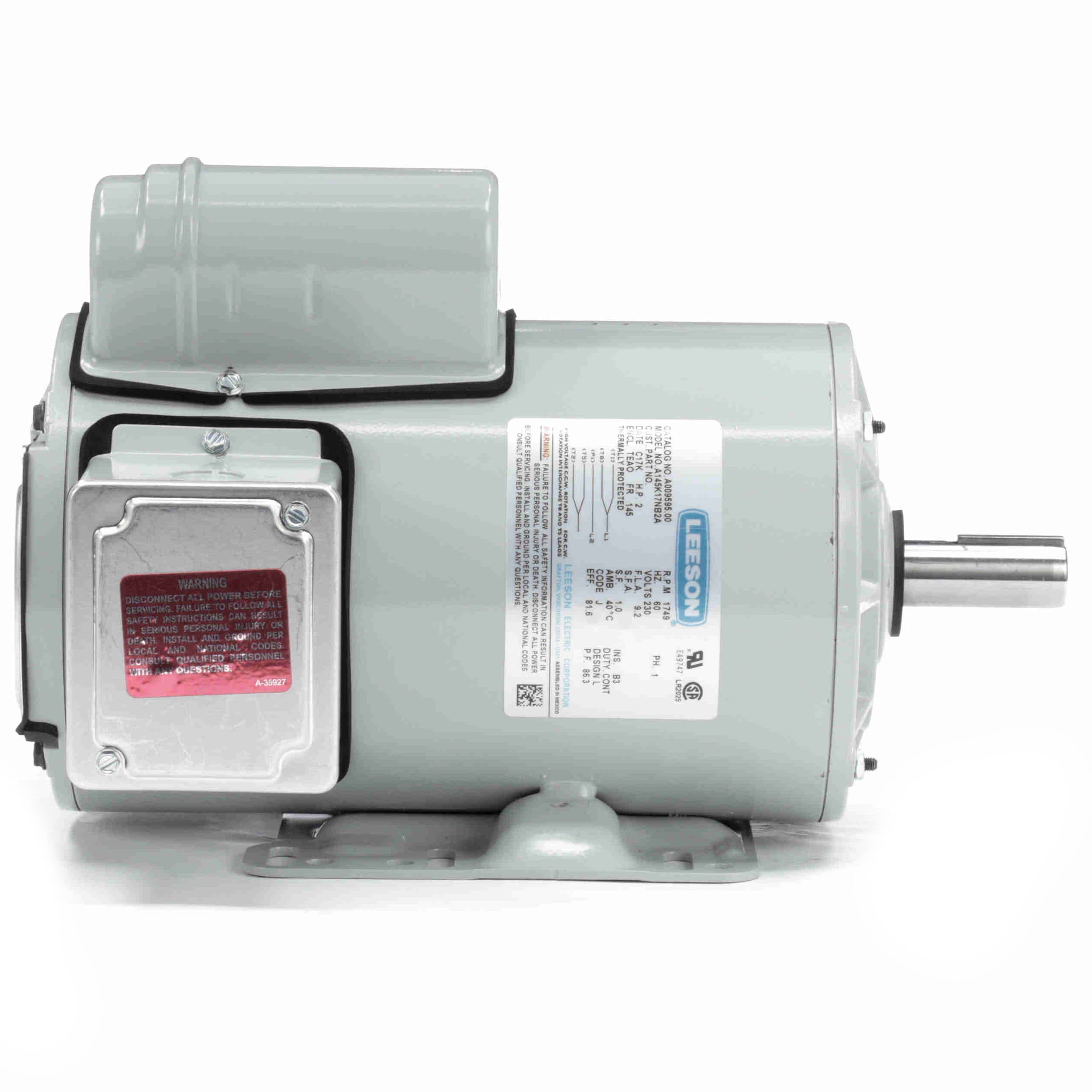

Regal Rexnord A009595.00 Leeson 2 HP 1749 RPM Motor (145T) U145K17NB2

Product Description

Regal Rexnord A009595.00 is a Leeson 2 HP, 230 V single-phase electric motor rated at 1749 RPM for belt-drive applications. The motor uses a TEAO (totally enclosed air over) enclosure with capacitor start/capacitor run design, a 145T frame and a 7/8" keyed shaft. Nameplate data lists 9.2 A at 60 Hz, continuous duty, with a combination 56/140 stamped steel base and IP43 protection.

• 2 HP (1.5 kW), 230 V single-phase motor, nameplate speed 1749 RPM, 60 Hz
• TEAO enclosure (IP43), capacitor start/capacitor run, continuous duty, 81.6% efficiency (full load)
• 145T frame, base mount with combination 56/140 stamped steel base, 7/8" keyed shaft, bearings 6205/6203

Product Highlights

2 HP single-phase TEAO belt-drive motor, 145T frame, 7/8" shaft, 1749 RPM

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: A009595.00
• Country of Origin: Mexico

Technical Specifications

• Brand: Regal Rexnord (Leeson)
• Manufacturer Part Number: A009595.00
• Model / Spec Number: U145K17NB2
• Type: Electric motor
• Application: Belt drive / agricultural fan
• Horsepower: 2 HP
• Output Power (kW): 1.5 kW
• Input Voltage: 230 V
• Input Phase: Single phase
• Frequency: 60 Hz
• Nameplate Speed: 1749 RPM
• Rated Speed (typical): 1725 RPM
• Full Load Amps: 9.2 A
• Frame Size: 145T
• Mounting Type: Base mount (rigid rolled steel)
• Base / Frame: Combination 56 / 140 stamped steel base
• Enclosure: TEAO (Totally enclosed air over)
• IEC Enclosure (IP Rating): IP43
• Starting Method: Capacitor start / capacitor run
• Shaft: 7/8" keyed shaft
• Bearings: 6205 and 6203
• Efficiency (Full Load): 81.6%
• Duty: Continuous
• Service Factor: 1.0 SF
• Insulation Class / Temperature Rise: 40 °C temperature rise (insulation class not specified)
• Rotation: Selective counterclockwise (named on data; likely selectable/reversible — see note)
• Orientation: Horizontal
• Weight (nameplate/specified): 50 lb
• Frame-mounted conduit box: Yes
• UPC: 691720103067
• HS Code: 8501.40.6040
