Regal Rexnord A009594.00 Leeson Motor 1.5HP 56H Frame M009594.00

Product Description

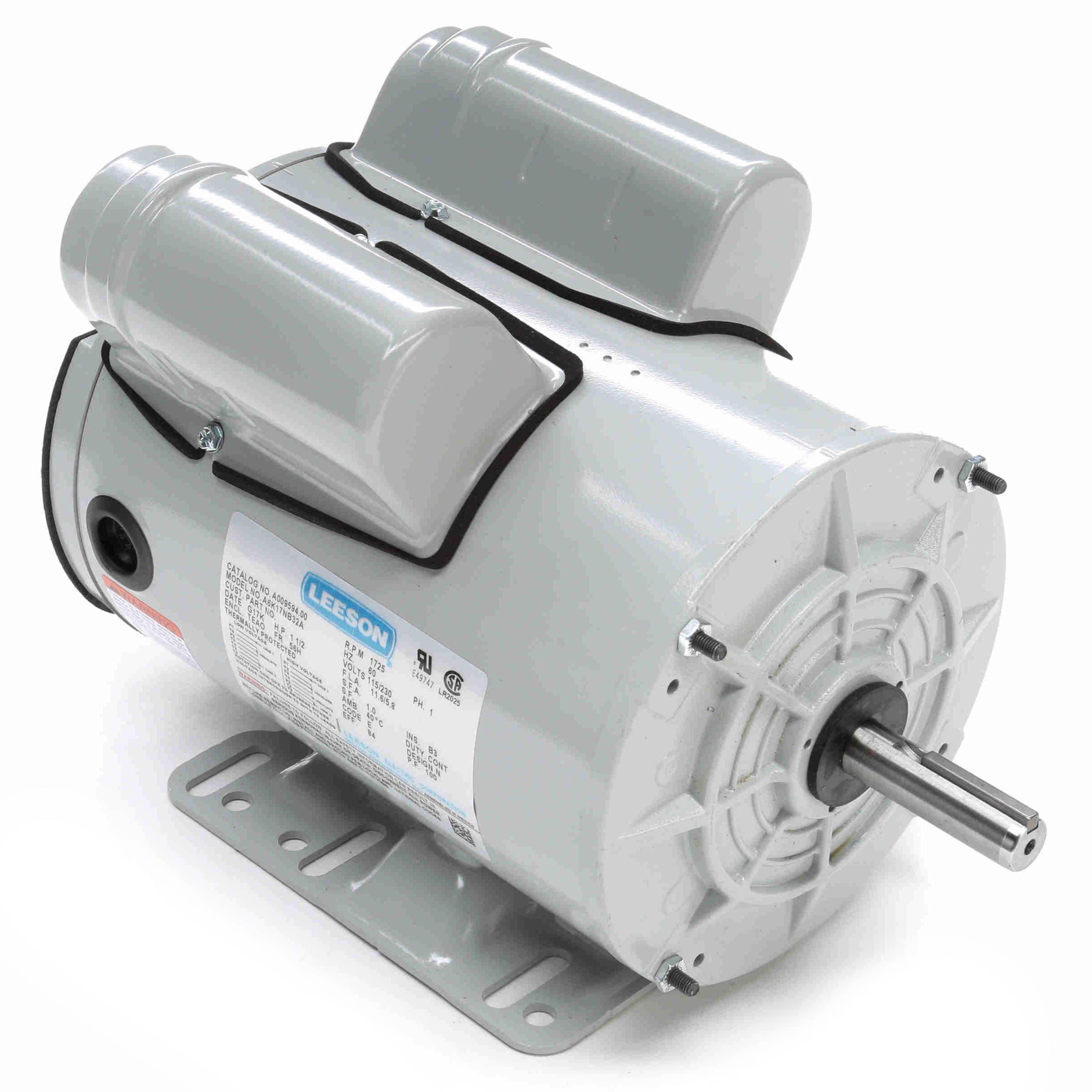

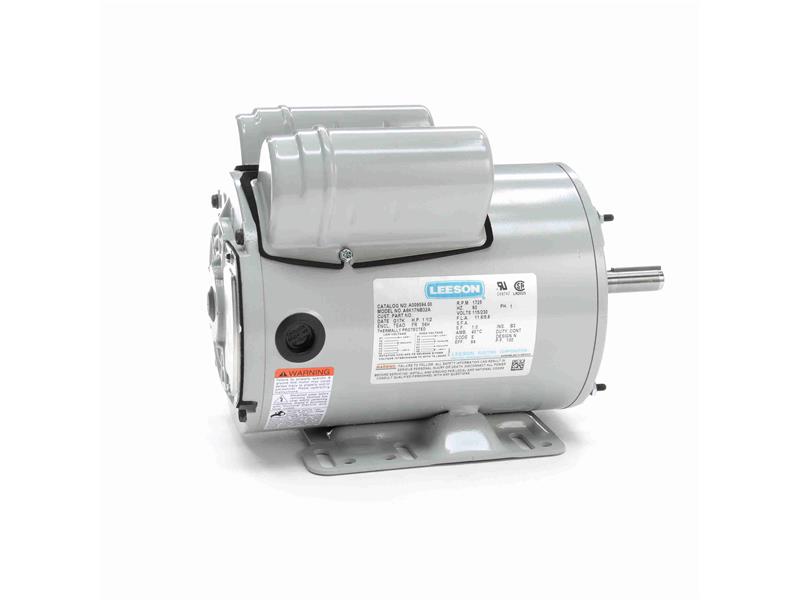

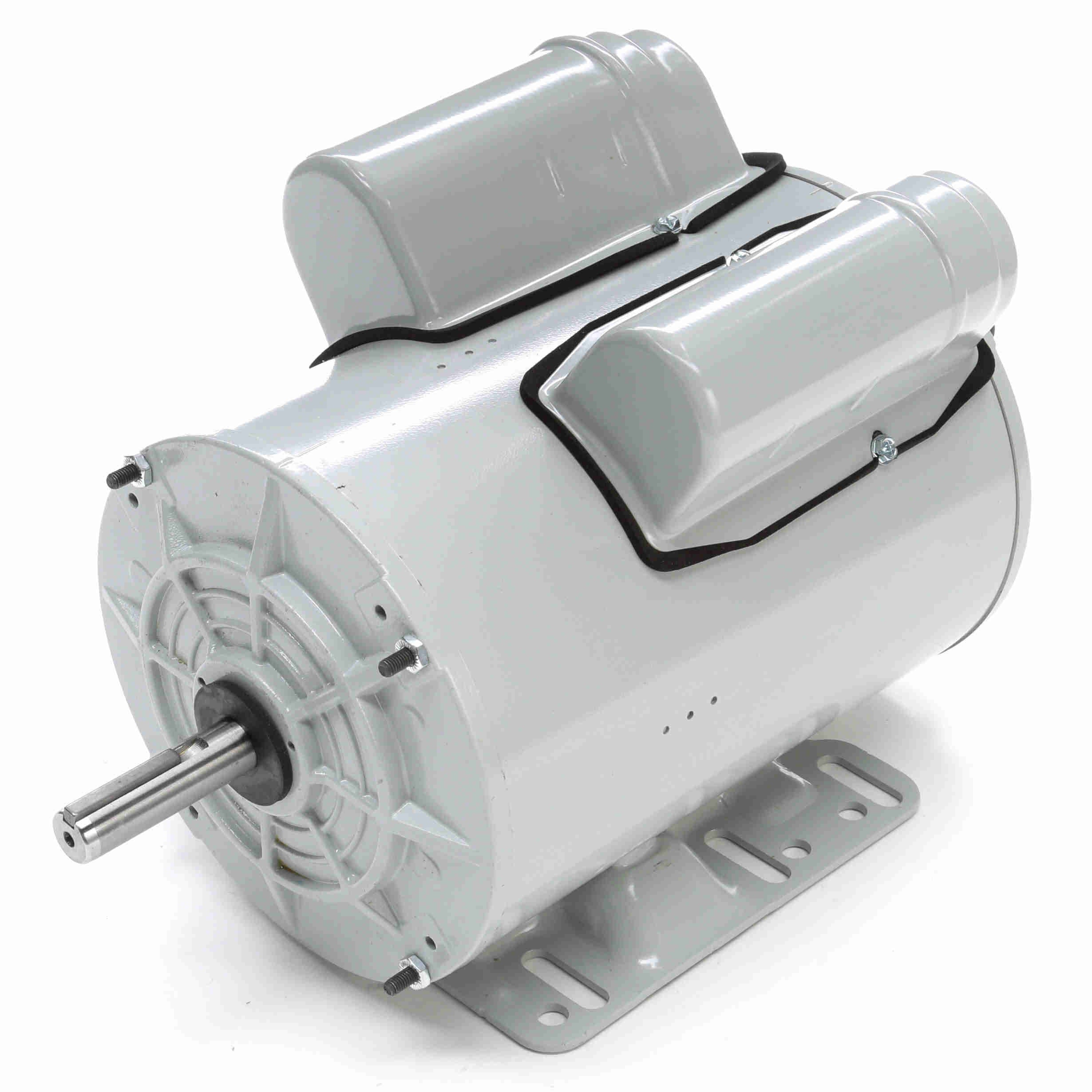

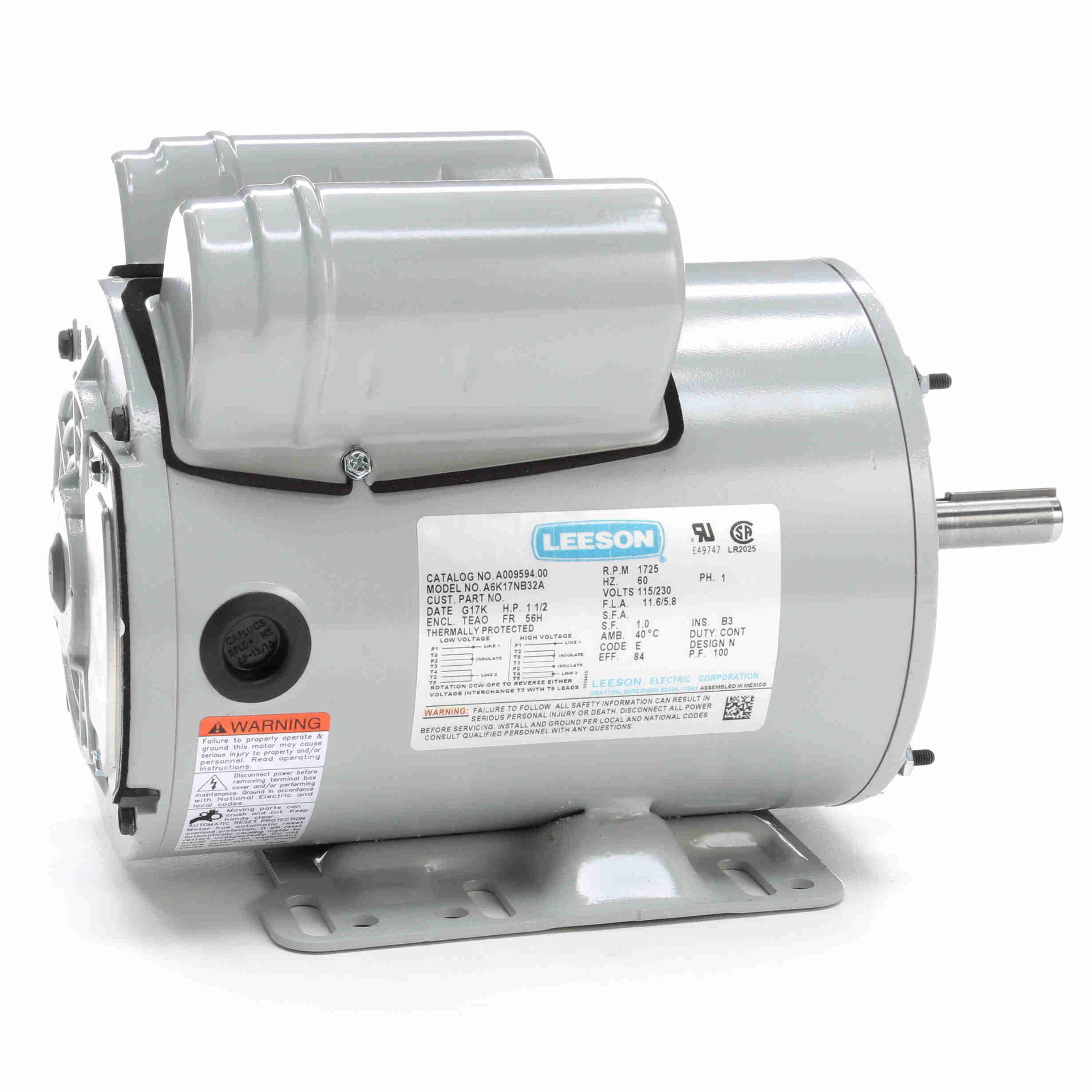

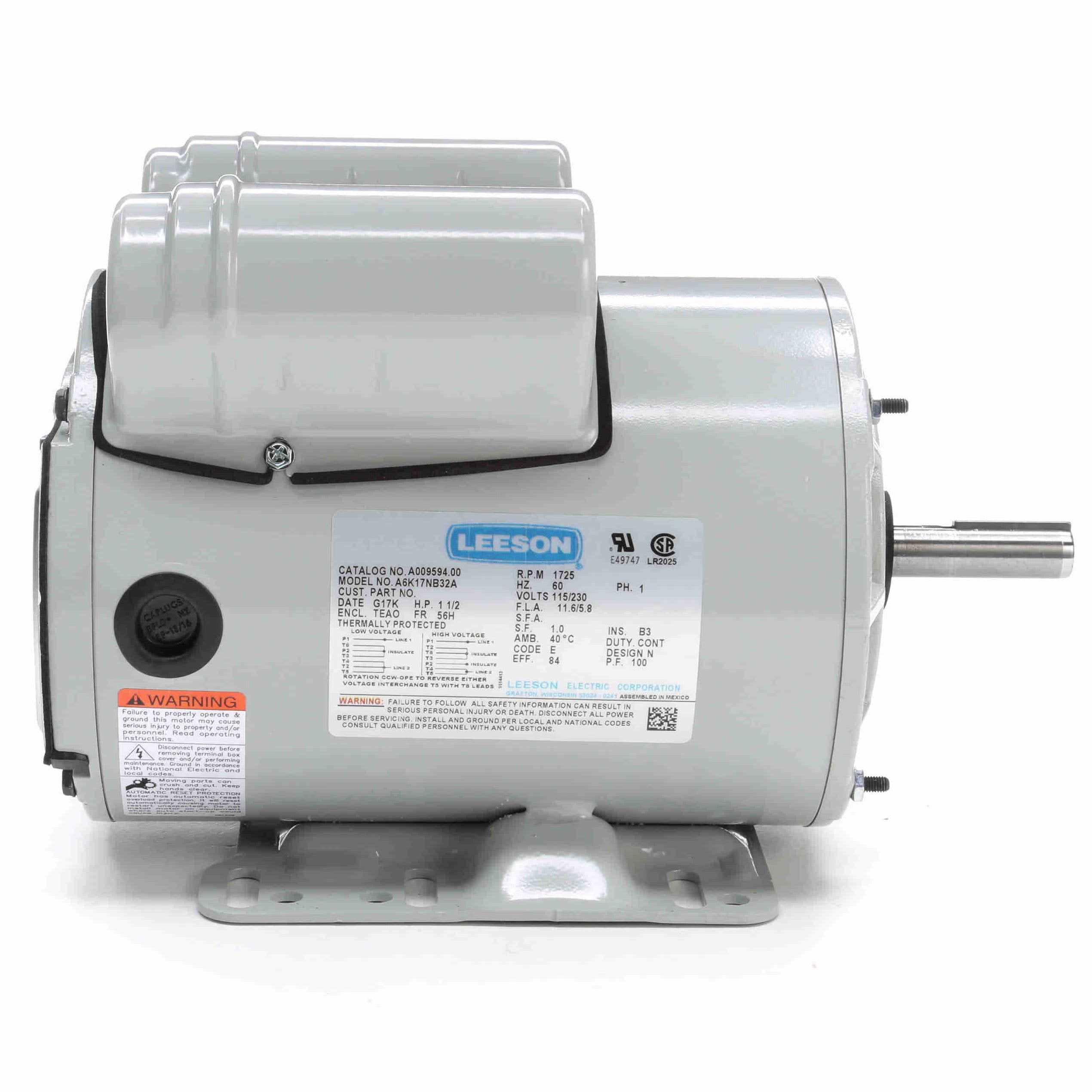

Regal Rexnord A009594.00 is a Leeson single-phase electric motor rated 1.5 HP with dual-voltage 115/230 V capability. The motor runs at 1725 RPM, is built on a 56H frame with a TEAO (air over) enclosure, and is configured for base/rigid mounting for belted fan and agricultural applications. It is specified for continuous duty at 60 Hz with service factor 1.0 and bearings 6203, maximum ambient 40 C.

• Dual-voltage 115/230 V, single-phase operation at 60 Hz
• 1.5 HP output, 1725 RPM, 56H frame, base/rigid mounting
• TEAO enclosure, continuous duty, service factor 1.0, bearings 6203

Product Highlights

Dual-voltage 1.5 HP single-phase motor for belted fan and agricultural applications with TEAO enclosure and 56H frame.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: A009594.00

Technical Specifications

• Manufacturer: Regal Rexnord (Leeson)
• Manufacturer Part Number: A009594.00
• Model Number: A6K17NB32
• Replacement Part Number: M009594.00
• Input Voltage: 115/230 V
• Phase: Single-phase
• Horsepower: 1.5 HP
• Power (kW): 1.1 kW
• Speed (RPM): 1725 RPM
• Frame: 56H
• Enclosure: TEAO (Totally enclosed, air over)
• Frequency: 60 Hz
• Mounting Type: Base (rigid)
• Application: Belted fan / agricultural / farm duty
• Duty Rating: Continuous
• Service Factor: 1.0
• Insulation Class: B
• Bearing (OPE): 6203
• Bearing (PE): 6203
• Full Load Amps (115V): 11.6
• Full Load Amps (230V): 5.8
• Max Ambient Temperature: 40 C
• Weight: 36 lb
• Enclosure IEC Rating: IP43
