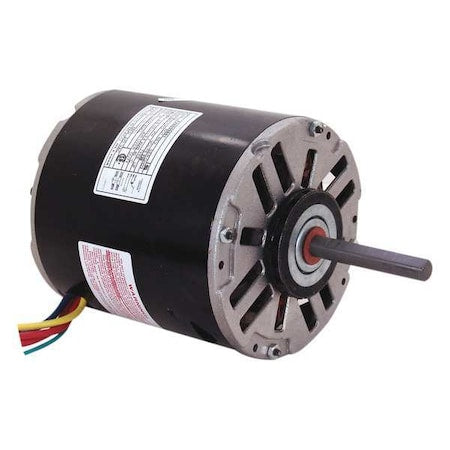

Regal Rexnord 9700 Direct Drive Blower Motor 1/4 HP 115/208-230V

Product Description

The Regal Rexnord 9700 is a reliable Direct Drive Blower Motor designed for industrial use. Featuring a 115/208-230V single-phase voltage and a 1/4 HP output, this motor operates at 1550 RPM, ensuring dependable performance. Built with durable materials to withstand demanding environments.

• Voltage: 115/208-230V
• Output: 1/4 HP
• Speed: 1550 RPM

Product Highlights

This motor is suitable for a wide range of industrial applications such as room air conditioners, unit heaters, condensers, furnace blowers, and other fan and blower equipment.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• Item Number: 9700

Technical Specifications

• HP: 1/4
• Voltage: 115/208-230V AC
• Nameplate RPM: 1,550
• Phase: Single
• Ins. Class: B
• Motor Service Factor: 1
• Motor Shaft Design: Flat
• Motor Bearings: Sleeve
• Shaft Diameter: 1/2 in
• Shaft Length: 4 1/2 in
• Max. Ambient Temp: 40 Degrees C
• Overall Length: 9 1/2 in
• Motor Mounting Type: Ring
• Mounting Position: Horizontal
• Motor Enclosure Design: Open Air-Over
• Lead Length: 12 in
• Usable @ 208V: Yes
• Motor Application: HVAC/R
