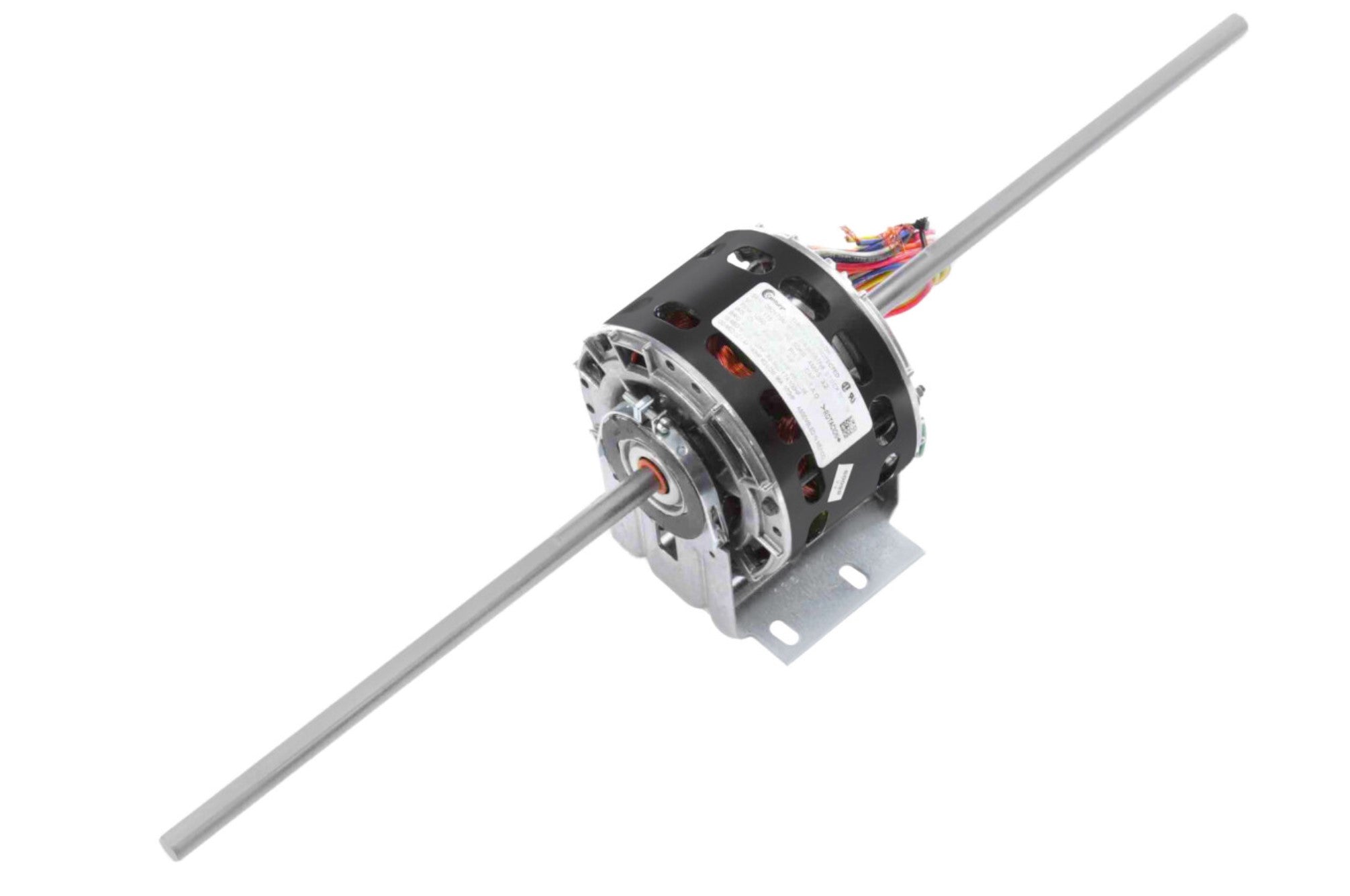

Regal Rexnord 89PSC Fan Coil Motor

Product Description

The Regal Rexnord Century Motors 89PSC is a fractional horsepower motor specifically designed for fan coil and air conditioner applications. This motor works on single-phase power and comes in an open air over enclosure. It is built with a rolled steel frame and includes a flat shaft, ensuring durability and reliability.

• Designed for fan coil and air conditioner applications.
• Operates on single-phase power with a specific rotation.
• Includes open air over enclosure for effective cooling.

Product Highlights

This motor is suitable for various HVAC applications, providing consistent performance and reliable operation.

Product Information

Standard Information

• Brand: Regal Rexnord
• MPN: 89PSC

Technical Specifications

• Phase: 1
• Output HP: 1/10 Hp
• Output KW: 0.07 kW
• Voltage: 115 V
• Speed: 1050 rpm
• Service Factor: 1
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.62 A
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 5
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Clockwise Lead End
• Mounting: Resilient Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 3.56 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 10.69X0.5X10.69 inches
• Manufacturer: Regal Rexnord
