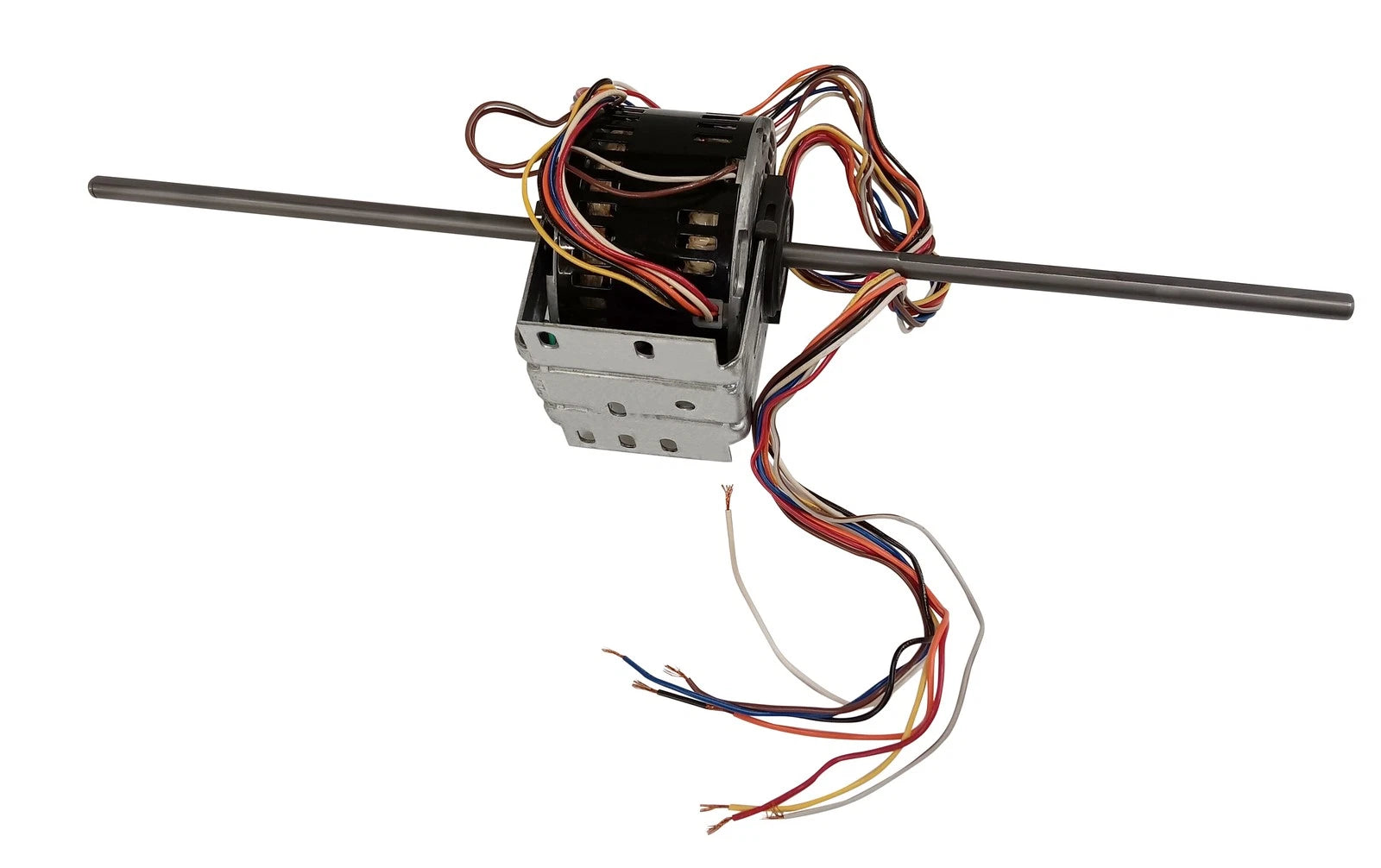

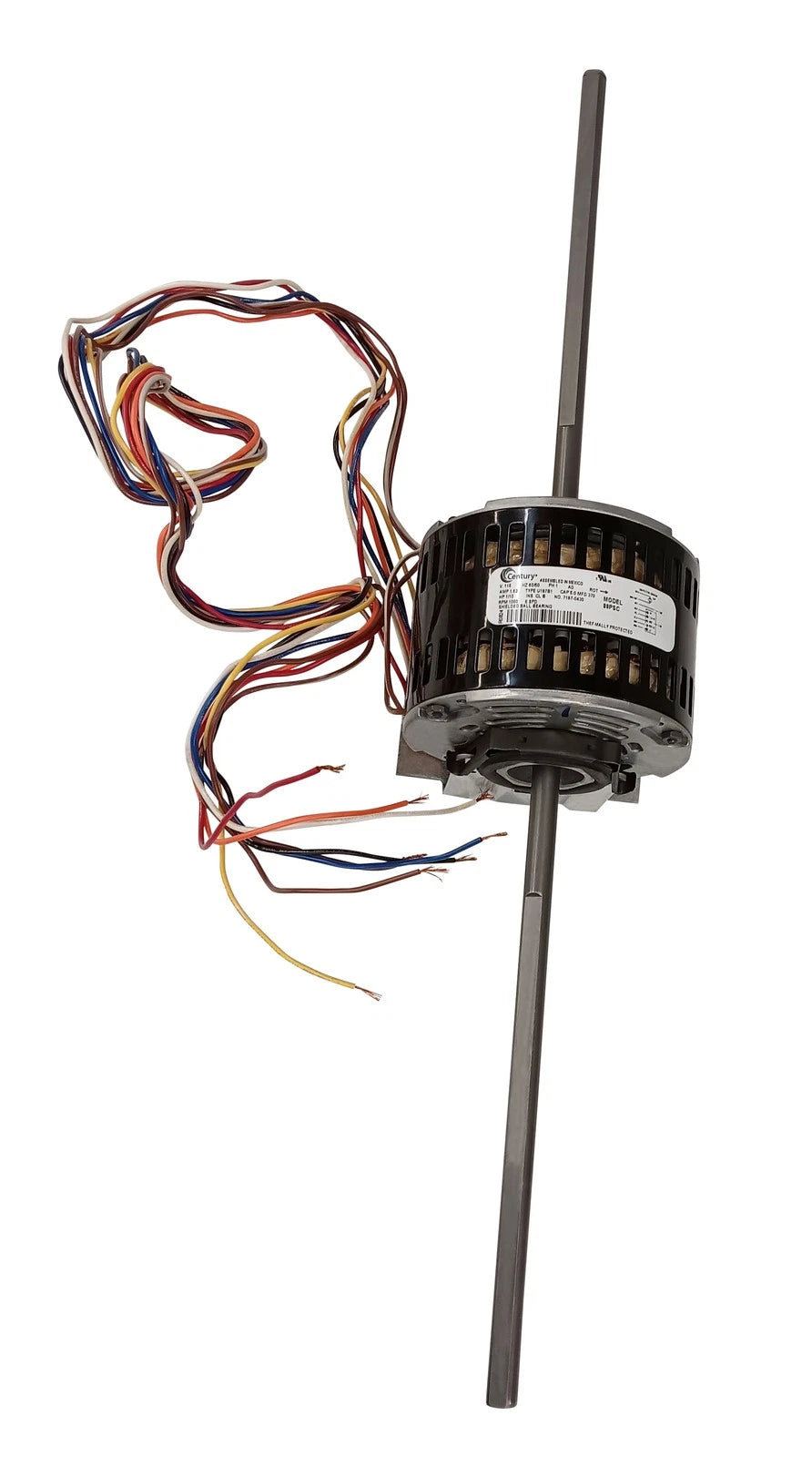

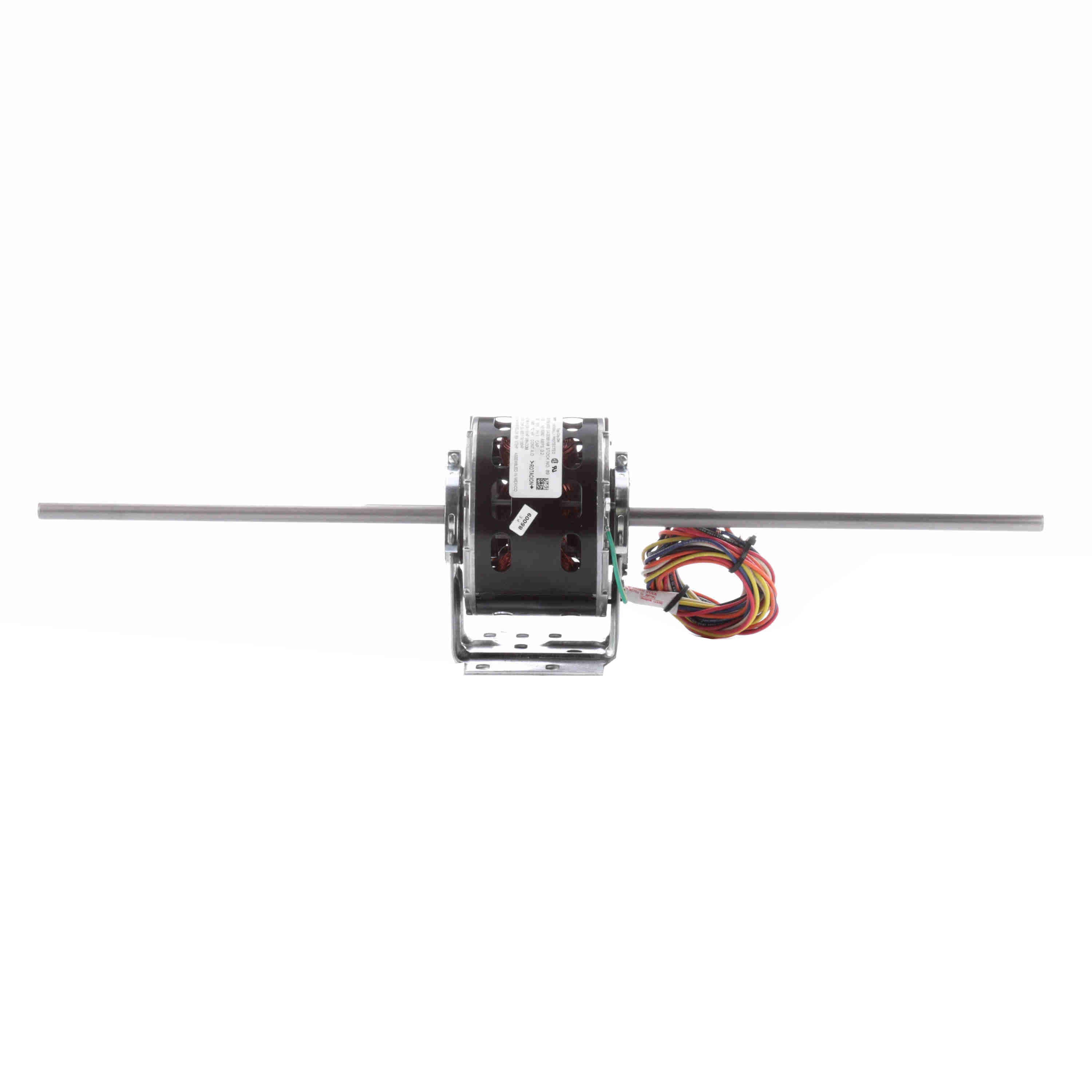

Regal Rexnord 89 Fan Coil Air Conditioner Motor 1/10 HP

Product Description

The Regal Rexnord Century Motors 89 is a 1/10 HP motor suitable for fan coil and air conditioner applications. This motor operates at 115 volts and a frequency of 60 Hz, achieving a speed of 1050 RPM. It features a 42 frame size, open air over enclosure, and automatic thermal protection for safe operation. The motor design includes a clockwise lead end rotation and is equipped with a resilient base for secure mounting.

• 1/10 HP, 115V, single phase, 60 Hz, 1050 RPM
• Open air over enclosure with built-in thermal protection
• Ball bearing design with resilient base for mounting

Product Highlights

This motor is designed for continuous use in cooling applications, ensuring efficient air flow and reliability.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: 89

Technical Specifications

• Model: 89PSC
• Output HP: 1/10 HP
• Voltage: 115 V
• Speed: 1050 RPM
• Service Factor: 1
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.62 A
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CS: Y
• CE: N
• Number of Speeds: 5
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Clockwise Lead End
• Mounting Type: Resilient Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 3.56 inches
• Shaft Diameter: 0.500 inches
• Shaft Extension: 10.69 x 0.5 x 10.69 inches
• Power Phase: 1 Phase
• Type: Blower Motor
• Features: Open, Open Drip Proof
• Material: Steel
• Compatible Model: CENTURY
