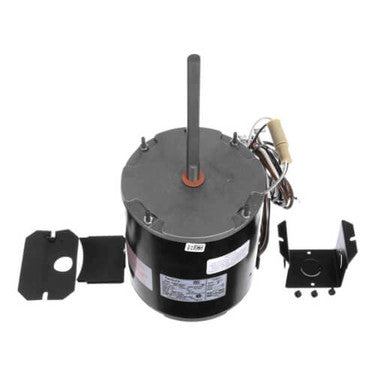

Regal Rexnord 791A Century Condenser Fan Motor 3/4 HP 460 V

Product Description

The REGAL REXNORD 791A Century Condenser Fan Motor is designed for heat pumps and refrigeration. This motor features a 5.6" diameter, 48 frame, and requires a 10 Mfd-370 Volts capacitor (not included). It is thermally protected and totally enclosed with air over, with class B insulation and a 60°C ambient temperature.

• Designed for condenser fan, heat pump, and refrigeration applications.
• Features ball bearing and a 1/2" diameter shaft with flat.
• Thermally protected with class B insulation, suitable for 60°C ambient temperatures.

Product Highlights

This condenser fan motor is ideal for various machinery and equipment in industrial settings, including manufacturing, material handling, and HVAC systems.

Product Information

Standard Information

• Brand: REGAL REXNORD
• Manufacturer Part Number: 791A

Technical Specifications

• Phase: 1
• Output HP: 3/4 Hp
• Output KW: 0.56 kW
• Voltage: 460 V
• Speed: 1075 rpm
• Service Factor: 1.0
• Frame: 48Y
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 60 °C
• Frequency: 60 Hz
• Current: 2.5 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Motor Orientation: Any
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Overall Length: 12.17 in
• Frame Length: 5.50 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6.1 in
