REGAL REXNORD 776 Clutch

Product Description

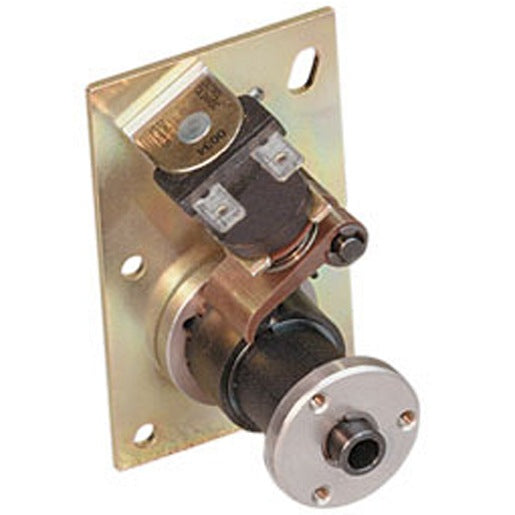

The REGAL REXNORD 776 is a wrap spring clutch ideal for various indexing motion applications. This clutch operates with electrical activation from a 24VDC solenoid and is compliant with ROHS standards. It features a cylindrical housing and a shaft-thru design, along with a straight, finished bore profile of 0.75 inches in diameter. The clutch is crafted for counter-clockwise rotation and includes an adjustable stop collar.

• Electrical activation using a 24VDC voltage rating.
• Static torque rating of 500 lb-in.
• Hollow bore input and output design with hub mounting.

Product Highlights

Suitable for use in computer peripherals, business machines, packaging equipment, and more, the REGAL REXNORD 776 is built for reliable performance.

Product Information

Standard Information

• Product Type: Wrap Spring
• Direction of Rotation: Counter Clockwise

Technical Specifications

• Activation: Electrical
• Bore Profile: Straight | Finished
• Input Type: Hollow Bore
• Output Type: Hollow Bore
• Mounting Method: Hub
• Voltage Rating: 24VDC
• Number of Stop Collars: 1
• Static Torque: 500 lb-in
• Actuation/Return: Solenoid
• Product Series: SAC
• Housing Style: Cylindrical
• Resistance: 41 Ohm
• Maximum RPM: 500
• Application: Computer Peripherals | Business Machines | Packaging Equipment
• Bore: 0.75 Inch | 19.05 Millimeter
